Marble Stone Aluminium Honeycomb Panel with Edge Open For Indoor Decoration

China Marble Stone Aluminium Honeycomb Panel with Edge Open  For Indoor Decoration supplier
Marble Stone Aluminium Honeycomb Panel with Edge Open  For Indoor Decoration supplier Marble Stone Aluminium Honeycomb Panel with Edge Open  For Indoor Decoration supplier Marble Stone Aluminium Honeycomb Panel with Edge Open  For Indoor Decoration supplier

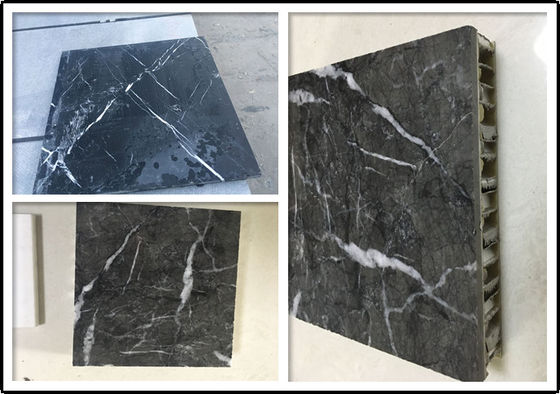

Large Image :  Marble Stone Aluminium Honeycomb Panel with Edge Open For Indoor Decoration

Product Details:

Place of Origin: P. R. China
Brand Name: PASIA
Certification: ISO9001-2008
Model Number: PMSHP / Marble-Polished

Payment & Shipping Terms:

Minimum Order Quantity: 100 M2 for customized order and no request for stocked goods
Price: Negotiable
Packaging Details: Pearl Wool and foam board protected in plywood crate.
Delivery Time: within 4 weeks for one 20' container loading
Payment Terms: L/C, T/T
Supply Ability: 180,000 square meters per year
Contact Now
Detailed Product Description
Stone Type: Marble Size In Mm*mm: 300*300
Surface Treated: Customized Application: InDoor Decoration
Product Name: Marble Aluminium Honeycomb Panel Thickness: 25 Mm

Marble Stone Honeycomb Panel with Edge Open  For Indoor Decoration​



Product Description



Mable Stone honeycomb panel is a structure sandwiched with aluminium plate, aluminium honeycomb core and very thin marble stone veneer. Its advantages includes light weight, limited radiation pollution, stone material saving, broader size and so on. The mainly application fields are ceiling, curtain wall, indoor wall panel, floors etc, which are being more and more widely used on the decoration and renovation of the industries of construction, vehicles, ships, etc.



Generally, archetects and designers should be consider carefully to use the marble stone outdoors because its elements can be corroded by the acid rain lower than 5 PH value if the natural mable stone slices are directly used for the outdoor cladding decoration. However, as the purpose to show the beauty of the building and other consideration, the building requires marble stones' color and pattern. Then, marble stone honeycomb panel with edge open and stone surface protected should be the ideal options for this application. Pasia's protectvie film is developed by our our R&D team with repeated trials and improvement to make the performance approved by authorized organization and clients. The film shows excellent anti-weathering and anti-corrosion permances when exposed to rigid environment. It makes the natural marble stone surface insulated from the air and outside environment while its transparant and no color film makes the marble surface show 100% to the outside.



General Description



The ultra-thin stone honeycomb composite panels are innovated because of the limited natural stone resources and its application restrict. It is a new type of building materials with a better impact resistance than the ordinary natural stone is with a weight of only 16 kg, is only 1/6 of the weight of its original natural stone slide but the compressive strength is 6 times more than the original stone slices. Completely overcomed the natural stone’s defects on weight, fragile and other aspects, it provides a more superior performance and wide application field as a new generation building material. Ultra-thin stone honeycomb composite panel is simply bonded with an about 3mm ~ 5mm thick stone sheet and an aluminum honeycomb substrate with a special purpose adhesive. It not only saves the stone material and reduces the weight of finished products, but reflects better in the stone effect. Based on these, there is a large demand from the market.



Mechanical Properties



  ASTM Unit 10mm 15mm 20mm
Unit theory weight   kg/m2 5.4 5.6 5.75
Tensile strength E8 N/mm2 806 598 455
Endurance capacity E8 N/mm2 531 405 279
Elongation E8 % 1.2 1.4 1.7
Bending rigidity C393 X106N.mm2 8.03 15.4 38.44
Bend elasticity rate   N/mm2 50000 40600 38.44
Temeprature total extension coefficient D696 X10-6N/℃ 0.24 0.24 0.24
Heat conduction rate D976 Kcal/mhr℃ 0.23 0.19 0.15
Heat transform temperature D648 200 200 200
Bonding strength C297   12 12 12
Surtace smoothness 1mm/M.Maximum deviation:1mm/M
Flame retardabt property Nonflammable,match relevant fire resistance standard
Soundproof function Be decided by layout of printed sheet installation angle,0-3dB



By using high quality glue and intense pressure, we make sure the two parts are perfectly fused together to produce a product that far outperforms solid stone and other similar panels. Not only that, but also we custom design and manufacture our panels to order, so we will work with you to meet your exact specifications and design whatever type of lightweight panels which you could possible need.



Applications of Lightweight Marble Stone Aluminium Honeycomb Panels

Our stone panels can be used in almost any type of building need—whether it be new construction or remodels, interior or exterior.
Sandstone panels are perfect for:


Residential and commercial interior panels
Elevator walls and paneling
Marine and boat applications
Dividers, cubicle walls, toilet partitions and much more
Benefits of Pacific Bedrock Panels





Technical Data

Thickness of Backing Panel 8-50 mm
Panel Thickness (Standard)

20 mm for indoor; 25 mm for outdoor

(6mm stone surface + 19mm backing panel commonly used) or customized

Backing Panel Makeup

(Interior curtain wall)

Both sides 0.7mm, 0.8mm mill Aluminum panel

Stone Mable / Granite / Limestone / Sandstone / Travetine,etc.
Finish Polished / Honed / Flammed / Hammer Bush
Cell Size (Standard) A6, 0.06mm
Adhesive Aero Grade Epoxy Adhesive or PU glue
Anchoring Brackets Aluminum or Stainless Steel
Application

Interior wall, floor, ceiling, counter top;

Exterior wall, cladding, special parts etc;

Shipbuilding, Train, Aircrafts

Feature Lightweight / Large Area / High Impact Strength / Fast Installation / Cost decrease/Eco-friendly/Sound and thermal insulation
Maximum Dimension (mm) 1500×3000 , or Subject to slab size



Marble Stone Aluminium Honeycomb Panel with Edge Open  For Indoor Decoration
