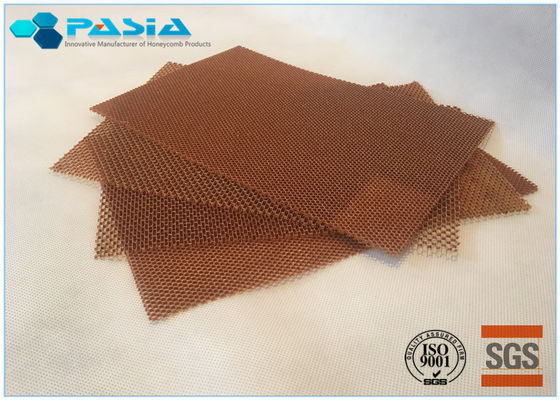

High Temperature Resistance Moisture Proof Aramid Honeycomb Core Sheet For Further Carving

China High Temperature Resistance Moisture Proof Aramid Honeycomb Core Sheet For Further Carving supplier
High Temperature Resistance Moisture Proof Aramid Honeycomb Core Sheet For Further Carving supplier High Temperature Resistance Moisture Proof Aramid Honeycomb Core Sheet For Further Carving supplier High Temperature Resistance Moisture Proof Aramid Honeycomb Core Sheet For Further Carving supplier

Large Image :  High Temperature Resistance Moisture Proof Aramid Honeycomb Core Sheet For Further Carving

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: ISO9001-2008
Model Number: NHPCFP10

Payment & Shipping Terms:

Minimum Order Quantity: 100 m2
Price: Negotiable
Packaging Details: Plywood Crates
Supply Ability: 300 m2 per day
Contact Now
Detailed Product Description
Surface: Carbon Unidirectional Prepreg In Epoxy Resin Core: Nomex Honeycomb Core
Thickness: 10 Mm Weight: 60 G/m2
Product Name: Carbon Nomex Honeycomb Panel Treatment: Gel Coat

Moisture Proof Aramid Honeycomb Panels With Carbon Fiber Prepreg for Further Carving



Product Description



Moisture Proof Aramid Honeycomb Panels With Carbon Fiber Prepreg for Further Carving is a very light weight aramid honeycomb panel comprised of an aramid honeycomb core with two carbon fiber epoxy resin prepreg produced surface plates. The surface plates are produced from carbon fiber prepreg impregnated with epoxy resin.



A carbon fiber unidirectional (UD) fabric is the one in which the majority of yarns (80% and above) distributed in one direction only. A small amount of fibre or other material may be used in other direction with the main intention being to hold the primary yarn in position, although the other fibres may also offer some structural properties. Some weavers of 0/90° fabrics term a fabric with only 75% of its weight in one direction as a unidirectional, whilst for others the unidirectional designation only applies to those fabrics with more than 90% of the fibre weight in one direction. Unidirectionals usually have their primary fibres in the 0° direction (along the roll ­ a warp UD) but can also have them at 90° to the roll length (a weft UD).



Features of Aramid Honeycomb Panel:



A. high temperature resistance makes the panel can be hot pressed into shape under the temperature more than 200 ℃



B. Wide range of density from29-160 kg/m3 of the core, if reinforced with carbon prepreg plates, the total area weight can be very low to 30g/m2; therefore it can meet many clients requirement on weight



C. Extremely high shear strength, especially compared with foam core material, more suitable for use in light structure. It is considered to be a light weight but high strength composite honeycomb core material



D. High rigidity, high resistance to damage compared with other honeycomb core materials



E. Flame retardant, low smoke and low toxicity (in line with the most stringent flame retardant and smoking standards of aviation);



F. Excellent creep and fatigue properties, can be used in strict requirement for long term use



G. Extremely high wet strength, can be used in high humidity environment. Easy to process with reduced production cost;



H. corrosion-resistant (not corroded by moisture or other medium or electrochemical reaction with carbon fiber, like a metal honeycomb);



I. superior heat and sound insulation performance, compared with metal and glass fiber materials, under the same weight with better insulation and sound insulation performance, more comfortable and energy conservation and environmental protection;



J. Easy forming process, compared with the metal honeycomb, the aramid honeycomb can be curved form, the processing is more convenient, the operation is more convenient.





Mechanical Properties of the Nomex Honeycomb Core



Size of honeycomb cell (mm))

Density

(Kg/ m3)

Plain compressive strength(MPa)

Plain shear properties(Mpa)
Pure core material Sandwich structure Strength Modulus
L W L W



1.83

48 1.8 2.28 1.38 0.79 88 45
64 3.12 3.83 1.81 1.11 100 57





2.75

32 0.92 1.0 0.79 0.46 66 32
48 2.1 2.33 1.48 0.86 121 54
72 3.93 4.26 2.62 1.45 151 65





Mechanical Properties of the Nomex Honeycomb Core 2





Core type Density
( kg/m3)

Stab.comp.str

(Mpa)

L Shear Properties(Mpa) W Shear Properties(Mpa)
Strength Modulus Strength Modulus
Typ Min Ind Typ Min Ind Typ Min Ind Typ Min Ind Typ Min Ind
3.2-29 29 0.77 0.60 0.56 0.47 25.9 17.4 0.35 0.30 14.5 11.3
3.2-48 48 2.35 1.92 1.22 1.03 44.5 34.5 0.73 0.61 27.1 20.9
3.2-64 64 3.88 3.22 1.72 1.55 61.0 54.0 0.99 0.82 34.0 25.0
3.2-80(E) 80 6.67 4.49 1.92 1.65 66.1 52.3 1.20 0.97 43.9 36.3
3.2-80 80 5.19 4.69 2.22 1.95 71.0 64.0 1.23 1.05 38.4 34.0
3.2-96(E) 96 8.99 8.78 2.49 2.25 82.8 77.5 1.73 1.67 59.1 55.5
4.8-40 40 1.63 1.46 0.95 0.92 38.0 36.3 0.55 0.52 23.9 22.5
4.8-48 48 2.45 1.86 1.24 1.02 41.3 34.0 0.77 0.60 30.0 18.0
4.8-72 72 5.28 4.60 1.70 1.32 57.1 47.5 1.09 0.80 40.5 23.2
4.8EX-48 48 2.20 1.80 0.79 0.62 20.6 16.1 0.87 0.72 42.0 34.0



































Typical application:



Uses includes flooring, radomes, antennas, military shelters, fuel tanks, helicopter rotor blades, basis, indoor decoration panels and navy bulkhead joiner panels.
