0.035 Perforated Aluminium Honeycomb Material With Excellent Performance

China 0.035 Perforated Aluminium Honeycomb Material With Excellent Performance supplier
0.035 Perforated Aluminium Honeycomb Material With Excellent Performance supplier 0.035 Perforated Aluminium Honeycomb Material With Excellent Performance supplier

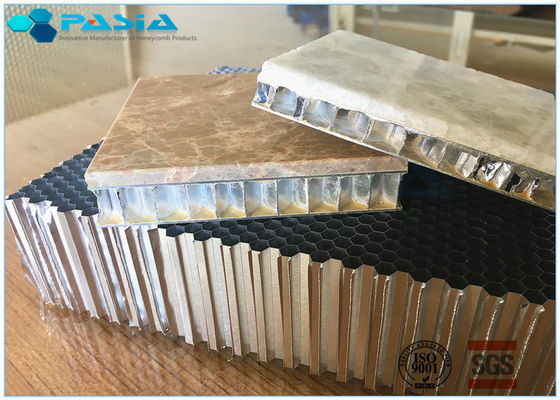

Large Image :  0.035 Perforated Aluminium Honeycomb Material With Excellent Performance

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: ISO9001-2008
Model Number: AHC-0-P577

Payment & Shipping Terms:

Minimum Order Quantity: 10-100m2
Price: Negotiable
Packaging Details: Export Ply-wood Box
Delivery Time: within one month for a 20' container
Supply Ability: 300000 per Month
Detailed Product Description
Material: 3003 Aluminum Foil Foil Thinkness: 0.035mm
Cell Size: 5mm Hardness: H18
Height: 10mm Product Name: 0.035 Perforated Aluminum Honeycomb Core With Excellent Performance
High Light:

honeycomb structure

,

honeycomb material



0.035 Perforated Aluminium Honeycomb Material With Excellent Performance



General Instruction:

0.035 Perforated Aluminum Honeycomb Core is a new type of functional composite that is named for its internal structure containing many honeycomb through-holes. Aluminum honeycomb core is a multi-layer aluminum foil bonded, laminated, and then expanded into a honeycomb shape drawing rules. Due to the special construction of the aluminum honeycomb core, the division of the plurality of closed cells limits the flow of air in the composite sheet synthesized therefrom, which greatly limits the propagation of heat and sound waves. The aluminum honeycomb core has good heat and sound insulation, electrical conductivity, heat and corrosion resistance, energy absorption and shock absorption, and heat preservation effect. At the same time, its bending resistance, pressure resistance and light weight are also unmatched by other building materials. As a "noble" in the family of honeycombs, aluminum honeycomb has excellent performance. It has high strength, high temperature resistance and corrosion resistance. It is an ideal material for aviation, aerospace, high-speed ships, high-speed trains, etc. It is a large size in the construction industry. Curtain wall and the preferred material for indoor luxury decoration with high flame retardant requirements.



Specification of aluminum honeycomb core:

ItemUnitSpecification
Cellinch 1/8”  3/16” 1/4”
 mm2.63.183.464.334.765.26.356.98.66
Side
Length
mm1.51.8322.52.7533.745
Foil Thicknessmm0.03-
0.05
0.03-
0.05
0.03- 0.050.03-
0.06
0.03-
0.06
0.03- 0.080.03- 0.080.03- 0.080.03-
0.08

Widthmm≤440≤440≤440≤1800≤1800≤1800≤1800≤1800≤1800
Lengthmm≤1500≤1500≤2000≤3000≤3000≤3200≤4000≤4000≤5500
Heightmm1.7~1501.7~1501.7~1503~1503~1503~1503~1503~1503~150

ItemUnitSpecification
Cellinch3/8” 1/2”  3/4” 1”
 mm9.5310.3912.713.8617.3219.0520.7825.4
Side Lengthmm5.567.33810111215
Foil Thicknessmm0.03-
0.08
0.03-
0.08
0.03- 0.080.03-
0.08
0.03-
0.08
0.03- 0.080.03- 0.080.03- 0.08
Widthmm≤1800≤1800≤1800≤1800≤1800≤1800≤1800≤1800
Lengthmm≤5700≤6000≤7500≤8000≤10000≤11000≤12000≤15000
Heightmm3~1503~1503~1503~1503~1503~1503~1503~150


Supply modes:
- Unexpanded block
- Unexpanded slice
- Expanded sheet
- Pieces cut to size


Features:



• Elevated use temperatures

• High thermal conductivity

• Flame resistant

• Excellent moisture and corrosion resistance

• Fungi resistant

• Low weight/High Strength


Specifications can be customized.





Applications:



0.035 Perforated Aluminium Honeycomb Material With Excellent Performance
