One Core Mineral Insulated MI Cable Explosion Proof Gas Electric Heater

China One Core Mineral Insulated MI Cable Explosion Proof Gas Electric Heater supplier

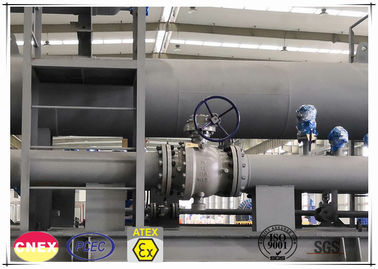

Large Image :  One Core Mineral Insulated MI Cable Explosion Proof Gas Electric Heater

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: CML ATEXQ578
Model Number: MI CU-B 16K320/60/2520/220/E

Payment & Shipping Terms:

Minimum Order Quantity: One unit
Price: USD35-300/piece FOB Shanghai
Packaging Details: Plywood Crates, Carton Box, Nude Packing etc
Delivery Time: Within One Month for a Full 20' Container
Payment Terms: L/C, T/T
Supply Ability: Depending on specification
Contact Now
Detailed Product Description
Material: Copper Core: Single
Sheath: Stainless Steel Application: Heating
Field: Industrial Certificate: ISO9001-2015




Explosion-proof Gas Electric Heater of One Core Mineral Insulated (MI) Cable​ is a new type of electric heater made of mineral insulated cable short as MI cable as its major heating element.



Model Rated Power (KW) Rated Voltage(V) Rated Current(A) Phase Number Outer Shape Size (Diameter*Height)
QDRQ-6/220 6 220 22.5 1 Φ273*2000
QDRQ/10/3/380 10 380 15 3 Φ273*2700
QDRQ/15/3/380 15 380 22.7 3 Φ377*2200
QDRQ/24/3/380 24 380 36 3 Φ377*2800
QDRQ/36/3/380 36 380 54.5 3 Φ377*3700
QDRQ/60/3/380 60 380 91 3 Φ530*3200
QDRQ/80/3/380 80 380 121 3 Φ530*3950
QDRQ/100/3/380 100 380 151 3 Φ700*3000
QDRQ/150/3/380 150 380 227 3 Φ700*3500
QDRQ/200/3/380 200 380 303 3 Φ700*4000
QDRQ/250/3/380 250 380 379 3 Φ700*4500
QDRQ/300/3/380 300 380 455 3 Φ1000*4500

One Core Mineral Insulated MI Cable Explosion Proof Gas Electric Heater



Application:



The explosion-proof gas electric heater is widely used in the process heating and heat compensation of gas medium in the explosion-proof places such as petroleum, natural gas field, oil refinery, chemical plant, pharmaceutical factory, city gas network, so as to ensure the safe, reliable and effective operation of the process of dangerous gas medium.



Technical features:



Adopting Pasia’s mineral insulated stainless-steel sheathed heating cable as the core heating element, it performs excellently on heat conduction and small temperature difference between the core and sheath.

Pasia’s capacity provides good advantages for heating element type choosing and designing based on their variety and specification, enabling the core electric heating element to obtain ultra-long service life and any heat power grade for the different hazardous gas medium.

The designed electric heater can last the same life as the pipe.

It is an indirect heating method for the MI cable heater as the heat is indirectly transferred between the heated media and the heating element.

The heating element and the heat conduction oil pass through the pipe while the heating medium pass through the shell.

The cold cover hot heat transfer method performs with a high heat transfer efficiency and less energy consumption.

The heater itself is equipped with two-stage temperature protection to ensure safe and reliable operation of the heater.

The heater is connected with the pipeline via flange therefore the installation and operation are simple.



Typical Project Case:



Datong station of west-east natural gas transmission project

Duyun first station of west-east gas transmission

The first stop of the west-east natural gas pipeline in Zunyi

Fenyang station of west-east natural gas pipeline

Kazakhstan oil and gas station

Burma and Thailand gas pipeline project



One Core Mineral Insulated MI Cable Explosion Proof Gas Electric Heater
