Stainless Steel Double Core Mineral Insulated Cable With Stainless Steel Sheath

China Stainless Steel Double Core Mineral Insulated Cable With Stainless Steel Sheath supplier

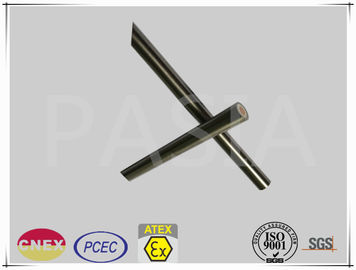

Large Image :  Stainless Steel Double Core Mineral Insulated Cable With Stainless Steel Sheath

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: CML ATEXQ578
Model Number: MICU

Payment & Shipping Terms:

Minimum Order Quantity: 10 meters of one specification
Price: USD0.5-2.5/meter FOB Shanghai
Packaging Details: Plywood Crates, Carton Box, Nude Packing etc
Delivery Time: Within One Month for a Full 20' Container
Payment Terms: L/C, T/T
Supply Ability: 10 Million Meters
Detailed Product Description
Material: Stainless Steel Core: Double
Sheath: Stainless Steel Application: Indutrial
Field: Civil Certificate: ISO9001-2015
High Light:

mineral insulated wire

,

mineral insulated copper cable


Stainless Steel Double Core Mineral Insulated Cable With Stainless Steel Sheath


600 Volt Rated Voltage Double Core Mineral Insulated Heating Cable is a type of mineral insulated heating cable of double conductors with rated voltage 600 Volt. Stainless steel sheath series mineral insulated heating cables can meet the requirements of high temperature conditions and high heating power (up to 269W/m). Pasia provide stainless steel sheathed heating cable with the highest temperature up to 600 ℃. Conductor resistance value ranges from 28000 Ω /km to 19.2 / km. Mineral insulated cable has excellent properties of mechanical strength and corrosion resistance.
The needs of different power can be met based on Pasia series resistance type heating cable.


Heating Cable Instruction Code
MI SS-B 16N12220/60/2520/220/E1
No. 1 2 3 4 5 6 7

NO.ItemDetail
1sheath materialSS
2cable component structureSee table 1
3cable codesSee table 2, 3 and 4
4Heating cable lengthin m
5Heating cable powerin unit of W
6Heating cable voltagein V
7cold end specificationSee table 5


Cable Code
      1 6 N 12220
No. 1 2 3    4


No.ItemDetail
1Number of core wires1 or 2
2Voltage grade3=300V, 6=600V
3Conductor materialK,N
4cold resistance×1000012220=1.222Ω/m×10000


MI Heating Cable Specification (600V Double Cores)


Cable CodeDiameter+20℃ Standard ResistanceMaximum Manufacturing LengthUnit Weight
mmΩ/mmkg/km
26N117008.71.1700180216
26N155007.21.5500195203
26N240005.02.4000234178
26N415003.84.1500280160
26N1100002.911.0000300152
26N2800002.128.0000350140



Cond End Specification


 Model :A, D, EModel: B
Maximum Voltage (V)Maximum Current (amps)Cond End SpecificationMaximum Current (amps)Cold End Specification
(British)(Metric)(British)(Metric)
60015E1M120E1M1
60020E1M125E1M1
60030E2M240E2M2
60050E2M270E2M2
60070E2M2100E2M2


Note 1: E1 means 1/2" NPT;
            E2 means 3/4" NPT;
            M1 is thread diameter M15;
            M2 is the diameter of thread M20

Note 2: the length of standard cold end cable is 2 meters. If special required, please contact our professionals



Application



Nuclear IndustryConstruction-Asphalt Heating
Metal Manufacturing Industry- low melting point alloy meltingTank heating
Extruder barrel heatingHigh temperature industrial pipe heat tracing
Anti-coagulation or viscosity drop for process mediumAll kinds of industrial electric heaters
