Product Details:
Payment & Shipping Terms:
|
| Industry: | Textile | Bonding: | Spot Welding Or Laser |
|---|---|---|---|
| Material Thickness: | 0.08-0.2 Mm | Cell Side Length: | 0.8-25 Mm |
| Height: | 50 Mm | Applications: | Water Jet Cutting |
| Grade: | SS304 | Shape: | Customized |
| High Light: | 304 Stainless Steel Honeycomb Core,0.2mm Stainless Steel Honeycomb Core,Welded honeycomb structure |
||

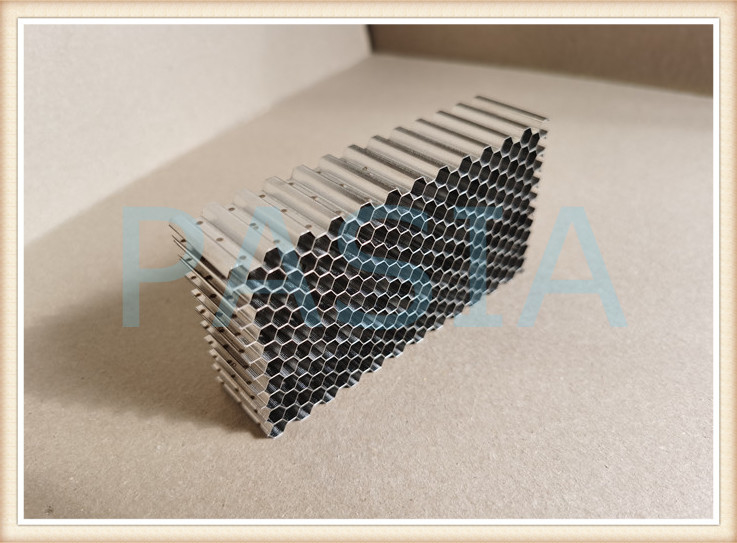

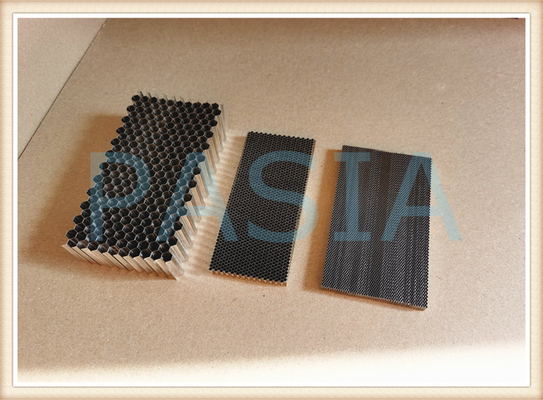

SS304 Stainless Steel Honeycomb Core for Water Jet Cutting Machines for Textile are used to prepare meals water jet cutting machines for textile. These honeycomb structures are made of stainless steel sheet thickness of 0.1-0.2 mm. Corrugated sheet metal strips are between two gears with special tooth profile. Hexagonal cells for obtaining these strips are welded points between them.
Specifications
| Cell Size (mm) | 25.0 | 16.0 | 12.7 | 10.0 | 6.4 | 5.6 | 4.8 | 3.2 | 1.6 | 0.8 |
| Height Range (mm) | 50-450 | 50-450 | 50-150 | 50-150 | 5-100 | 5-90 | 5-60 | 5-60 | 3-30 | 3-25 |
| Foil Thickness (mm) | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | 0.076 | 0.05 |
| Cubic Density (kg/m3) | 165 | 256 | 320 | 403 | 616 | 699 | 806 | 1164 | 909 | 1164 |
| Materials | SS304, SS316 or SS316L | |||||||||
| Welding | Spot Welding with one area five spots or laser welding | |||||||||
| Shapes | Customized shape available not limited to ring, plate, loop etc | |||||||||
| Cell Size (mm) | 0.4, 0.8, 1.6, 2.0,2.5, 3.2, 3.6, 4.0, 4.2, 5.0, 6.4, …16,25,30 (Other cell side length customized) |
| Material Thickness | 0.05, 0.076, 0.1, 0.12, 0.127, 0.13 etc |
| Dimension of honeycomb ring | 80mm-4500mm |
| Core Panel Width | 3mm-100mm |
| Core Panel Length | 10mm-17000mm |
| Core Panel Height | 2.5mm-450mm |
Properties
Welded honeycomb core, no matter what material is, such as aluminum, stainless steel, steel, titanium etc, possesses better mechanical properties against regularly produced glued honeycomb core. So it performs significantly better again the common honeycomb bonded by adhesive on strength, modulus, corrosion resistance, dimensional stability etc.
SS304 Stainless Steel Honeycomb Core for Water Jet Cutting Machines for Textile is with a super flat surface to make the fabric cutting presicely.
Packing
Each welded stainless steel honeycomb core is carefully packed in protective material then into plywood or wooden crate for shipment.
