0.076 Mm Aluminum Honeycomb Sheet High Speed Train

China 0.076 Mm Aluminum Honeycomb Sheet High Speed Train supplier
0.076 Mm Aluminum Honeycomb Sheet High Speed Train supplier 0.076 Mm Aluminum Honeycomb Sheet High Speed Train supplier

Large Image :  0.076 Mm Aluminum Honeycomb Sheet High Speed Train

Product Details:

Place of Origin: China
Brand Name: MICH
Certification: ISO9001
Model Number: 76TAHCHST

Payment & Shipping Terms:

Minimum Order Quantity: 1 m2
Price: USD0.5-USD5 per square meter
Packaging Details: plywood crates
Delivery Time: in one month
Payment Terms: L/C, T/T
Supply Ability: 1 million M2 per year
Contact Now
Detailed Product Description
Property: High Strength Bonding Method: Glue Bonded
Cell Size: 3 Mm Foil Thickness: 0.076 Mm
Foil Treated: Chromate-free Passivated Application: High Speed Train
Optimized Supply: Expanded Supply Method: Expanded, Slice, Block
High Light:

0.076Mm aluminum honeycomb sheet

,

Expanded aluminum honeycomb sheet

,

block aluminium honeycomb core

0.076 mm thick Aluminum Honeycomb Core for High Speed Train is made of chromate-free treated aluminum foil of 0.076 mm thick bonded by special purpose adhesive. The performance of the aluminum honeycomb core is determined by the properties of aluminum foil, special purpose chemical adhesive and the size and configuration of the core.



The detailed applications for the High Speed Train is as follow:
Interior Panels and Partitions
Furniture
Ceiling and Flooring Panels
Hulls and Bulkheads
Doors



Because of the train travells at a really high speed so the core should maintain a high strength. The spot welding or laser welding should be applied to the bonding technology if specially required.

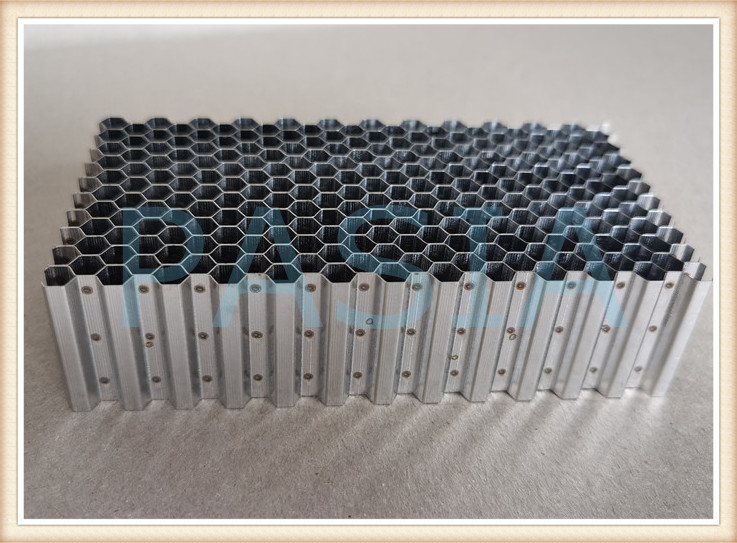

0.076 Mm Aluminum Honeycomb Sheet High Speed Train

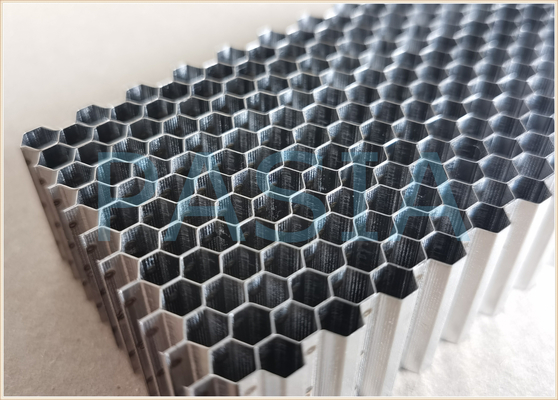

0.076 Mm Aluminum Honeycomb Sheet High Speed Train



Process



General process of an aluminum honeycomb core initiated with an aluminum foil roll and surely the foil is specially treated.



The adhesive tapes are printed to the foil surface with the intervals and width pre-determined by the cell size and strength requirement.

The foil paper is cut into required size to be piled up on the stacking table with equipment and man supervision on the adhesive tape positioning.

These stacked loose blocks should be pressed in a heated press to cure the adhesive so that the sheets of foil are bonded together to hardened block.

The aluminum honeycomb block can be cut into slices with the height of the slices tailored to customized requirements.

Finally, no matter it is done in supplier’s plant or at client’s workshop, the honeycomb should be expanded before forming aluminum honeycomb panel.



The following materials are for forming honeycomb cores:



1. Aluminum foil

Regularly, 3003H19/5052H18 aluminum alloy foils after strict surface treatment are used for producing aluminum honeycomb core.



2. Special Purpose Chemical Adhesive

Modified epoxy glue for high temperature cure process can provide not only sufficient bonding strength, but also environmental resistance and high or low temperature resistant properties. The joint strength of aluminum honeycomb core is the keypoint of evaluating the core’s performance. The minimum requirement should be more than 2.0N/mm.



Specification of Aluminum Honeycomb Core:



Item Unit Specification
Cell Size inch   1/8”     3/16”   1/4”
mm 2.6 3.18 3.46 4.33 4.76 5.2 6.35 6.9 8.66
Side Length mm 1.5 1.83 2 2.5 2.75 3 3.7 4 5
Foil Thickness mm 0.03-.05 0.03-.05 0.03- 0.05 0.03-.06 0.03-0.06 0.03-0.08 0.03-0.08 0.03-0.08 0.03-.08
Width mm ≤440 ≤440 ≤440 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤1500 ≤1500 ≤2000 ≤3000 ≤3000 ≤3200 ≤4000 ≤4000 ≤5500
Height mm 1.7~150 1.7~150 1.7~150 3~150 3~150 3~150 3~150 3~150 3~150





Item Unit Specification
Cell Size inch 3/8”   1/2”     3/4”   1”
mm 9.53 10.39 12.7 13.86 17.32 19.05 20.78 25.4
Side Length mm 5.5 6 7.33 8 10 11 12 15
FoilThickness mm 0.03-.08 0.03-0.08 0.03-0.08 0.03-.08 0.03-0.08 0.03-0.08 0.03-0.08 0.03- 0.08
Width mm ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤5700 ≤6000 ≤7500 ≤8000 ≤10000 ≤11000 ≤12000 ≤15000
Height mm 3~150 3~150 3~150 3~150 3~150 3~150 3~150 3~150


Specifications can be customized according to customer’s requirement.



Supply modes of Aluminum Honeycomb Core:

- Unexpanded block

- Unexpanded slice

- Expanded sheet

- Pieces cut to size
