3003 Spot Welded Aluminum Honeycomb Core For Flow Straightener

China 3003 Spot Welded Aluminum Honeycomb Core For Flow Straightener supplier
3003 Spot Welded Aluminum Honeycomb Core For Flow Straightener supplier 3003 Spot Welded Aluminum Honeycomb Core For Flow Straightener supplier

Large Image :  3003 Spot Welded Aluminum Honeycomb Core For Flow Straightener

Product Details:

Place of Origin: China
Brand Name: MICH
Certification: ISO9001
Model Number: SWAHCFS

Payment & Shipping Terms:

Minimum Order Quantity: 1 m2
Price: USD0.5-USD5 per Square Meter
Packaging Details: plywood crates
Delivery Time: in one month
Payment Terms: L/C, T/T
Supply Ability: 200 thousand m2
Contact Now
Detailed Product Description
Material: Aluminum Bonding: Spot Welding Or Laser
Material Thickness: 0.08-0.2 Mm Cell Side Length: 0.8-25 Mm
Height: 3-250 Mm Applications: AIR WATER OR GAS Flow Straightener
Grade: 3003, 5052
High Light:

Welded Aluminum Honeycomb Core

,

3003 Aluminum Honeycomb Core

,

0.2 mm honeycomb core panel

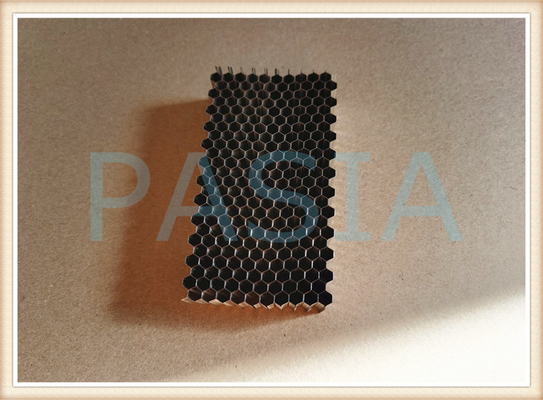

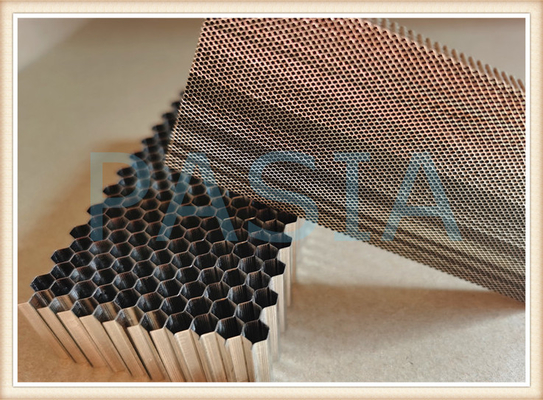

Spot Welded Aluminum Honeycomb Core for Flow Straightener is welded of multiple corrugated aluminium sheets as per to accurate pre-determined cell size while the corrugating is processed on a gear press with the sheets delivery from a roller of rolled aluminum. A flow straightener is a straightening device designed to make a flowing stream of fluid relatively free of turbulence, thereby permitting flowrate measurements by turbine meter or delta flowmeter, which is susceptible to eddies, circular flows, ununiform distribution of flow velocity etc. Created by existing pipeline arrangements (elbows, reducers, valves, etc.) or by the type of pumps used, always under consistent conditions.



Specifications



Cell Size (mm) 25.0 16.0 12.7 10.0 6.4 5.6 4.8 3.2 1.6 0.8
Height Range (mm) 50-450 50-450 50-150 50-150 5-100 5-90 5-60 5-60 3-30 3-25
Foil Thickness (mm) 0.20 0.20 0.20 0.20 0.20 0.20 0.20 0.20 0.076 0.05
Cubic Density (kg/m3) 165 256 320 403 616 699 806 1164 909 1164
Materials 5052 etc
Welding Spot Welding with one area five spots or laser welding
Shapes Customized shape available not limited to ring, plate, loop etc





Properties



Welded honeycomb core, no matter what material is, such as aluminum, stainless steel, steel, titanium etc, possesses better mechanical properties against regularly produced glued honeycomb core. So it performs significantly better again the common honeycomb bonded by adhesive on strength, modulus, corrosion resistance, dimensional stability etc. However, generally, these critical performance variables should be evaluated: material, airflow and attenuation.



1. Material Composition



Aluminum grade should be considered according to the real application. Custom materials other than stainless steel are available upon request. Here are the parameters need to be evaluated:



Durability

Material type and grade is the first aspect to be evaluated then plating, discussed in depth later, can improve durability.



Weight

Material, structure and thickness of the material can affect the total part weight.



2. Corrosion resistance



Typically brass and stainless steel should be used in slashing environments. Plating or nonconductive surface coatings can improve corrosion resistance for all honeycomb types.



3. Airflow & Attenuation



Airflow and attenuation are inversely proportional. Infinitely large honeycomb cells result in infinitely small attenuation (and vice versa). Typically, as a design baseline, airflow performance requirements are calculated to meet thermal performance needs for the assembly that the vent is to be installed onto. Once airflow is determined, attenuation and other requirements can be evaluated. Standard cell sizes for honeycomb are 1/16", 1/8" and 1/4", with 1/8" being most common. Standard thicknesses are 1/4," 1/2" and 1," with 1/4" being most common.
