EMI Honeycomb Ventilation Panels , 12.7mm Stainless Steel Honeycomb Panel

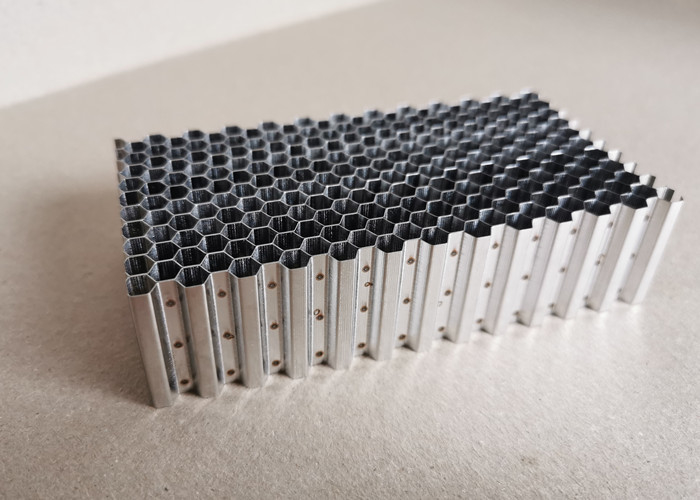

Large Image : EMI Honeycomb Ventilation Panels , 12.7mm Stainless Steel Honeycomb Panel

Product Details:

Place of Origin:	China
Brand Name:	MICH
Certification:	ISO9001
Model Number:	SSHCF

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD20-USD200,000
Packaging Details:	plywood crates
Delivery Time:	in one month
Supply Ability:	Upon Order

Contact Now

Detailed Product Description

Material:	Stainless Steel	Process:	Spot Welded
Use:	Filtering	Application:	Water Treatment
Dimension:	7676-483483	Venilated Area:	5151-457457
Method:	Reinforcing Available	Reinforcement:	Reinforcing Bar
High Light:	EMI Honeycomb Ventilation Panels , Filtering Honeycomb Ventilation Panels , 12.7mm stainless steel honeycomb panel

Steel honeycomb ventilation panels have higher physical strength than aluminum honeycomb ventilation panels, and are generally used in military applications that require high levels of EMI. The standard honeycomb has an aperture of 3.2mm and a depth of 12.7mm. The surface layer can be plated with tin, nickel, cadmium, etc. for environmental protection. If the equipment works in the harsh smoky environment in the field, choose a brass honeycomb ventilation plate.

Specification	Dimension	Venilated Area	Installated Size				Installation Point Numbers
Specification	WxL	AxB	C	D	E	F	Wside	Lside
ANFPSNI76X7632W	76X76	51X51	32	32			1	1
ANFPSNI101X10132W	101X101	76X76	44	44			1	1
ANFPSNI101X20332W	101X203	76X177	44	19	76		1	3
ANFPSNI127X12732W	127X127	102X102	57	19	76		1	2
ANFPSNI127X15232W	127X152	102X127	25	25	89	64	2	2
ANFPSNI127X17732W	127X177	102X152	25	38	88	64	2	2
ANFPSNI152X15232W	152X152	127X127	25	25	89	89	2	2
ANFPSNI152X17732W	152X177	127X152	25	38	88	89	2	2
ANFPSNI177X17732W	177X177	152X152	38	38	88	88	2	2
ANFPSNI203X20332W	203X203	177X177	51	19	76	88	2	3
ANFPSNI203X25432W	203X254	177X229	51	32	88.5	88	2	3
ANFPSNI305X30532W	305X305	279X279	32	32	76	76	4	4
ANFPSNI305X61032W	305X610	279X584	32	33	88.5	76	4	7
ANFPSNI483X48332W	483X483	457X457	45	45	76	76	6	6
