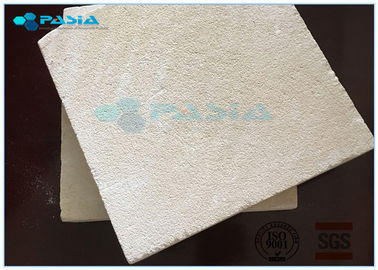

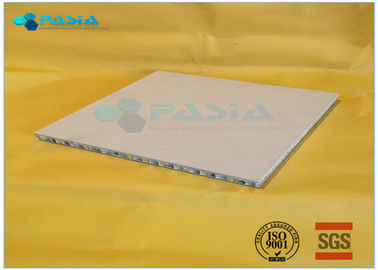

Sandstone Aluminium Honeycomb Panel With Edge Sealed Thickness 20mm - 30mm

China Sandstone Aluminium Honeycomb Panel With Edge Sealed Thickness 20mm - 30mm supplier
Sandstone Aluminium Honeycomb Panel With Edge Sealed Thickness 20mm - 30mm supplier Sandstone Aluminium Honeycomb Panel With Edge Sealed Thickness 20mm - 30mm supplier Sandstone Aluminium Honeycomb Panel With Edge Sealed Thickness 20mm - 30mm supplier Sandstone Aluminium Honeycomb Panel With Edge Sealed Thickness 20mm - 30mm supplier

Large Image :  Sandstone Aluminium Honeycomb Panel With Edge Sealed Thickness 20mm - 30mm

Product Details:

Place of Origin: P. R. China
Brand Name: PASIA
Certification: ISO9001-2008
Model Number: SHP20-28(5/0.5+18.5+1)-Sandstone

Payment & Shipping Terms:

Minimum Order Quantity: 100 M2 for customized order and no request for stocked goods
Price: Negotiable
Packaging Details: Plywood Crate.
Delivery Time: within 4 weeks for one 20' container loading
Payment Terms: L/C, T/T
Supply Ability: 200,000 square meters per year
Contact Now
Detailed Product Description
Stone Type: Sandstone Size In Mm*mm: 1200*1200, 600*600
Surface Treated: Polished Application: Indoor Decoration
Product Name: Sandstone Aluminium Honeycomb Panel Thickness: 20mm-30 Mm



Sandstone Aluminium Honeycomb Panel with Edge Sealed For Indoor Decoration.



Product Description



Sandstone is the most widely used type of architectural stone. The building decorated with sandstone  hundreds years ago still retains its charm, such as Notre Dame Cathedral and Louvre,The Royal Palace of the United Kingdom, the United States Congress, Harvard University, etc., Sandstone's noble and elegant temperament and its hard texture have made the world a unique and beautiful architectural history.



In recent years, sandstone, as a natural building material, has been followed by fashion and nature architects. It is widely used in commercial and home decoration. The world has been exploited using Australian sandstone, Indian sandstone, and Spanish sandstone, Chinese sandstone and so on. Among the colors and patterns, the most welcomed by architects are Australian sandstones. Australian sandstone is an eco-friendly stone, and its products are characterized by no pollution, no radiation, no reflection, no weathering, no discoloration, heat absorption, heat preservation, and non-slip.

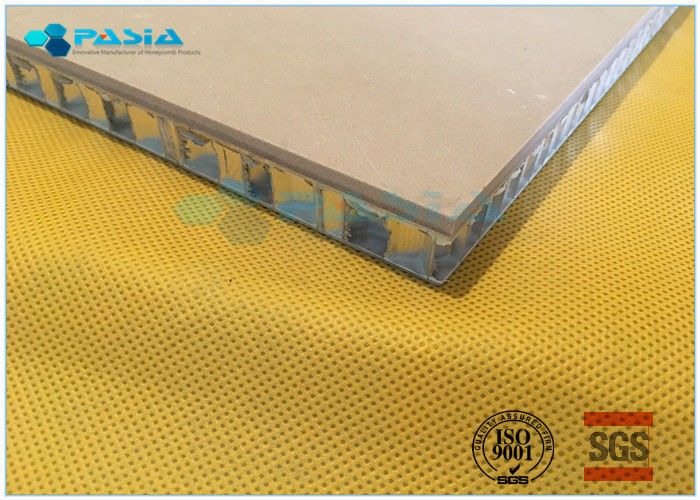

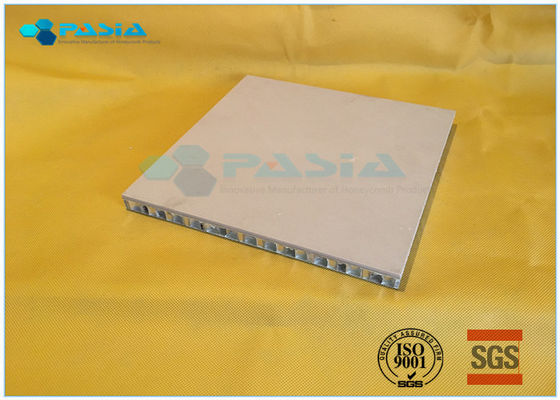

Sandstone aluminium honeycomb panel is a structure sandwiched with aluminium honeycomb panel and very thin basalt stone veneer. Its advantages includes light weight, limited radiation pollution, stone material saving, broader size and so on. The mainly application fields are ceiling, curtain wall, indoor wall panel, floors etc, which are being more and more widely used on the decoration and renovation of the industries of construction, vehicles, ships, etc.



Sandstone aluminium honeycomb panel shows better price and performance against any other stones if putting the surface color appearance aside as it is a widely distributed stone mine all over the world. Normally, the four edge sides are exposed during manufacturing to save the production time and material cost. When the installation is finished, there will be sealing glue to be used to cover the gap between the basalt stone honeycomb panels so that the exposed edges are also sealed. Normally, the basalt stone will be sliced into 3 mm thickness to combined with the aluminum honeycomb panel backing as the basalt stone itself shows very good mechanical performance.



Specification

Item Material Thickness

Surface

Coating

Size Color
Sandstone Aluminium Honeycomb Panel with Edge Sealed Aluminum Alloy + SandstoneStone

Standard Thickness:

20, 25mm; Or Custom

Made

available

Fluorine

carbon

coated

Standard width:

Length≤6000mm

Width≤1500mm

subject

to user

demand





General Description



The ultra-thin stone honeycomb composite panels are innovated because of the limited natural stone resources and its application restrict. It is a new type of building materials with a better impact resistance than the ordinary natural stone is with a weight of only 16 kg, is only 1/6 of the weight of its original natural stone slide but the compressive strength is 6 times more than the original stone slices. Completely overcomed the natural stone’s defects on weight, fragile and other aspects, it provides a more superior performance and wide application field as a new generation building material. Ultra-thin stone honeycomb composite panel is simply bonded with an about 3mm ~ 5mm thick stone sheet and an aluminum honeycomb substrate with a special purpose adhesive. It not only saves the stone material and reduces the weight of finished products, but reflects better in the stone effect. Based on these, there is a large demand from the market.



Mechanical Properties



  ASTM Unit 10mm 15mm 20mm
Unit theory weight   kg/m2 5.4 5.6 5.75
Tensile strength E8 N/mm2 806 598 455
Endurance capacity E8 N/mm2 531 405 279
Elongation E8 % 1.2 1.4 1.7
Bending rigidity C393 X106N.mm2 8.03 15.4 38.44
Bend elasticity rate   N/mm2 50000 40600 38.44
Temeprature total extension coefficient D696 X10-6N/℃ 0.24 0.24 0.24
Heat conduction rate D976 Kcal/mhr℃ 0.23 0.19 0.15
Heat transform temperature D648 200 200 200
Bonding strength C297   12 12 12
Surtace smoothness 1mm/M.Maximum deviation:1mm/M
Flame retardabt property Nonflammable,match relevant fire resistance standard
Soundproof function Be decided by layout of printed sheet installation angle,0-3dB



Feactures





It possesses advantages of:

1.. Light weight

2. High strength

3. Increased anti-pollution ability

4. Easier control of uniform color

5. Easy installation

6. Workable at the area of regular stone not workable

7. Soundproof and moistureproof

8. Energy saving

9. Consumption reduction

10. Reduce costs



Structure Combination



1) stone - aluminum honeycomb composite panels

2) stone - hard substrate composite panel

3) stone - tile composite panel

4) stone - stone composite panel

5) stone - glass composite panel known as stone translucent plate

2) by shape is divided into:

① general type plate

② arc plate

3) According to the surface:

① mirror panel

② matt panel

③ rough panel



Technical Options



Thickness of Backing Panel 8-50 mm
Panel Thickness (Standard)

20 mm for indoor; 25 mm for outdoor

(6mm stone surface + 19mm backing panel commonly used) or customized

Backing Panel Makeup

(Interior curtain wall)

Both sides 0.7mm, 0.8mm mill Aluminum panel

Stone Mable / Granite / Limestone / Sandstone / Travetine,etc.
Finish Polished / Honed / Flammed / Hammer Bush
Cell Size (Standard) A6, 0.06mm
Adhesive Aero Grade Epoxy Adhesive or PU glue
Anchoring Brackets Aluminum or Stainless Steel
Application

Interior wall, floor, ceiling, counter top;

Exterior wall, cladding, special parts etc;

Shipbuilding, Train, Aircrafts

Certification NOA for High Velocity Hurricane Zone/Warnock&Hersey
Feature Lightweight / Large Area / High Impact Strength / Fast Installation / Cost decrease/Eco-friendly/Sound and thermal insulation
Maximum Dimension (mm) 1500×3000 , or Subject to slab size



 Sandstone Aluminium Honeycomb Panel With Edge Sealed Thickness 20mm - 30mm
