Aluminum Honeycomb Core For Aluminum Honeycomb Curtain Wall Composite Board

China Aluminum Honeycomb Core For Aluminum Honeycomb Curtain Wall Composite Board supplier
Aluminum Honeycomb Core For Aluminum Honeycomb Curtain Wall Composite Board supplier Aluminum Honeycomb Core For Aluminum Honeycomb Curtain Wall Composite Board supplier

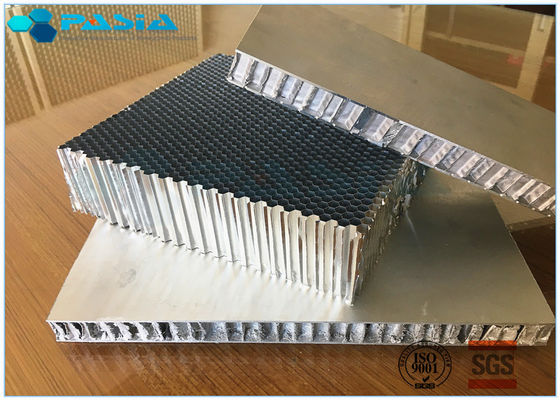

Large Image :  Aluminum Honeycomb Core For Aluminum Honeycomb Curtain Wall Composite Board

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: ISO9001-2008
Model Number: AHC-S-B564

Payment & Shipping Terms:

Minimum Order Quantity: 30 m2
Price: Negotiable
Packaging Details: by pallets or plywood crate
Delivery Time: within one month for a 20' container
Supply Ability: 1000000 m2
Contact Now
Detailed Product Description
Material: 3003 Foil Thinkness: 0.07-0.1 Mm
Cell Size: 6.8 Mm Hardness: H18
Height: 15mm Product Name: Aluminium Honeycomb Core For Honeycomb Panel



Aluminum Honeycomb Core For Aluminum Honeycomb Curtain Wall Composite Board


Aluminum honeycomb core is made of aluminum foil which is bonded by special high strength and environment-friendly glue. The performance of the aluminum honeycomb core is determined by aluminum foil, joint glue and the specification of the core.



Low cost and High Strenght Aluminium Honeycomb Core For Aluminum Honeycomb Curtain Wall Composite Board is made of A3003H18 commercial grade aluminum honeycomb which is a low price, lightweight core material possessing good strength and corrosion resistance. It is widely used for indoor and outdoor decoration.


Features:



1) High thermal conductivity
2) Flame resistant
3) Good moisture and corrosion resistance
4) Fungi resistant
5) Low weight/High Strength


Specification of aluminum honeycomb core:

Item Unit Specification
Cell inch   1/8”     3/16”   1/4”
  mm 2.6 3.18 3.46 4.33 4.76 5.2 6.35 6.9 8.66

Side
Length

mm 1.5 1.83 2 2.5 2.75 3 3.7 4 5
Foil Thickness mm

0.03-
0.05

0.03-
0.05

0.03- 0.05

0.03-
0.06

0.03-
0.06

0.03- 0.08 0.03- 0.08 0.03- 0.08

0.03-
0.08


Width mm ≤440 ≤440 ≤440 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤1500 ≤1500 ≤2000 ≤3000 ≤3000 ≤3200 ≤4000 ≤4000 ≤5500
Height mm 1.7~150 1.7~150 1.7~150 3~150 3~150 3~150 3~150 3~150 3~150

Item Unit Specification
Cell inch 3/8”   1/2”     3/4”   1”
  mm 9.53 10.39 12.7 13.86 17.32 19.05 20.78 25.4
Side Length mm 5.5 6 7.33 8 10 11 12 15
Foil Thickness mm

0.03-
0.08

0.03-
0.08

0.03- 0.08

0.03-
0.08

0.03-
0.08

0.03- 0.08 0.03- 0.08 0.03- 0.08
Width mm ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤5700 ≤6000 ≤7500 ≤8000 ≤10000 ≤11000 ≤12000 ≤15000
Height mm 3~150 3~150 3~150 3~150 3~150 3~150 3~150 3~150



Specifications can be customized.


Supply modes:
a. Unexpanded block
b. Unexpanded slice
c. Expanded sheet
d. Pieces cut to size



Applications:

A3003H18 aluminum honeycomb core are widely used on Aluminum Honeycomb Curtain Wall Composite Board.
