Product Details:
Payment & Shipping Terms:
|
| Stone Type: | Granite Stone | Size: | Oversize |
|---|---|---|---|
| Surface Treated: | Polished | Application: | Decoration |
| Product Name: | Oversized Aluminium Honeycomb Panel | Thickness: | 20mm-30 Mm |
| High Light: | aluminium honeycomb sandwich panel,stone aluminum honeycomb panel |
||

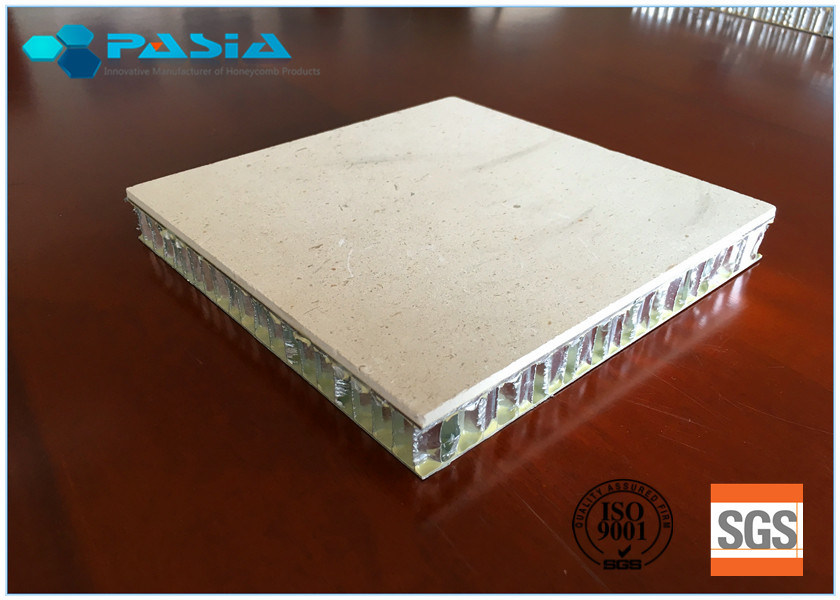

Oversized With Customized Thickness Granite Stone Honeycomb Panel
Product Description
Granite Stone Honeycomb Panel shows better price and performance against any other single stones:
1. If putting the surface color appearance aside as it is a widely distributed stone mine all over the world.
2. Normally, the four edge sides are exposed during manufacturing to save the production time and material cost. When the installation is finished, there will be sealing glue to be used to cover the gap between the sandstone honeycomb panels so that the exposed edges are also sealed.
3. Normally, the sandstone will be sliced into 3 mm thickness to combined with the aluminum honeycomb panel backing as the basalt stone itself shows very good mechanical performance.
Specification
| Item | Material | Thickness |
Surface Coating |
Size | Color |
| Granite Stone Honeycomb Panel with Edge Sealed | Aluminum Alloy + SandstoneStone |
Standard Thickness: 20, 25mm; Or Custom Made available |
Fluorine carbon coated |
Standard width: Length≤6000mm Width≤1500mm |
subject to user demand |
Mechanical Properties
| ASTM | Unit | 10mm | 15mm | 20mm | |
| Unit theory weight | kg/m2 | 5.4 | 5.6 | 5.75 | |
| Tensile strength | E8 | N/mm2 | 806 | 598 | 455 |
| Endurance capacity | E8 | N/mm2 | 531 | 405 | 279 |
| Elongation | E8 | % | 1.2 | 1.4 | 1.7 |
| Bending rigidity | C393 | X106N.mm2 | 8.03 | 15.4 | 38.44 |
| Bend elasticity rate | N/mm2 | 50000 | 40600 | 38.44 | |
| Temeprature total extension coefficient | D696 | X10-6N/℃ | 0.24 | 0.24 | 0.24 |
| Heat conduction rate | D976 | Kcal/mhr℃ | 0.23 | 0.19 | 0.15 |
| Heat transform temperature | D648 | ℃ | 200 | 200 | 200 |
| Bonding strength | C297 | 12 | 12 | 12 | |
| Surtace smoothness | 1mm/M.Maximum deviation:1mm/M | ||||
| Flame retardabt property | Nonflammable,match relevant fire resistance standard | ||||
| Soundproof function | Be decided by layout of printed sheet installation angle,0-3dB | ||||
Feactures
| ADVANTAGES | |
| 1 | Light weight |
| 2 | High strength |
| 3 | Easy installation |
| 4 | Energy saving |
| 5 | Reduce costs |
| 6 | Consumption reduction |
| 7 | Soundproof and moistureproof |
| 8 | Increased anti-pollution ability |
| 9 | Easier control of uniform color |
| 10 | Workable at the area of regular stone not workable |
Structure Combination
1) stone - aluminum honeycomb composite panels
2) stone - hard substrate composite panel
3) stone - tile composite panel
4) stone - stone composite panel
5) stone - glass composite panel known as stone translucent plate
2) by shape is divided into:
① general type plate
② arc plate
3) According to the surface:
① mirror panel
② matt panel
③ rough panel
Technical Options
| Thickness of Backing Panel | 8-50 mm |
| Panel Thickness (Standard) |
20 mm for indoor; 25 mm for outdoor (6mm stone surface + 19mm backing panel commonly used) or customized |
|
Backing Panel Makeup (Interior curtain wall) |
Both sides 0.7mm, 0.8mm mill Aluminum panel |
| Stone | Mable / Granite / Limestone / Sandstone / Travetine,etc. |
| Finish | Polished / Honed / Flammed / Hammer Bush |
| Cell Size (Standard) | A6, 0.06mm |
| Adhesive | Aero Grade Epoxy Adhesive or PU glue |
| Anchoring Brackets | Aluminum or Stainless Steel |
| Application |
Interior wall, floor, ceiling, counter top; Exterior wall, cladding, special parts etc; Shipbuilding, Train, Aircrafts |
| Certification | NOA for High Velocity Hurricane Zone/Warnock&Hersey |
| Feature | Lightweight / Large Area / High Impact Strength / Fast Installation / Cost decrease/Eco-friendly/Sound and thermal insulation |
| Maximum Dimension (mm) | 1500×3000 , or Subject to slab size |
