Product Details:
Payment & Shipping Terms:
|
| Stone Type: | Limestone | Size In Mm*mm: | Customized |
|---|---|---|---|
| Surface Treated: | Polished | Application: | Indoor Decoration |
| Product Name: | Light Weight Honeycomb Panel | Thickness: | Customized |
| High Light: | aluminium honeycomb sandwich panel,stone aluminum honeycomb panel |
||

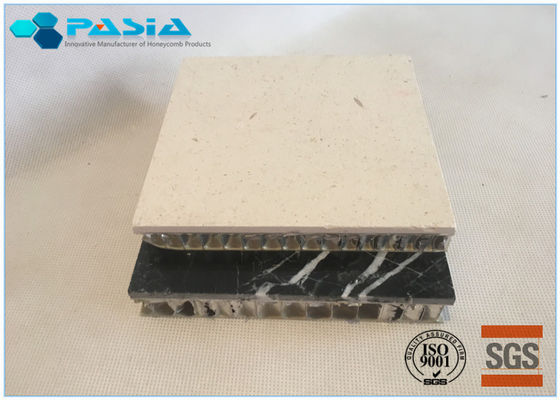

Limestone Honeycomb Stone Panels , Customized Size Lightweight Cladding Panels
Product Description
The stone aluminum honeycomb panel has the characteristics of light weight, small radiation pollution, saving stone material, large size of the board surface, and can be used for ceiling, curtain wall, interior wall surface, ground, etc., It is widely used in buildings, vehicles, ships decoration.
Limestone honeycomb panel is a sandwiched composite structure with an aluminium honeycomb panel and very thin limestone veneer. Its advantages includes light weight, limited radiation pollution, stone material saving, broader size and so on. The mainly application fields are ceiling, curtain wall, indoor wall panel, floors etc, which are being more and more widely used on the decoration and renovation of the industries of construction, vehicles, ships, etc.
The edges of the stone aluminium honeycomb panel can be sealed with stone slices but generally for the plain cladding surface, the edge will be left open so that the production time and material can be saved for the whole project. With careful gap sealing glue, there will be no edge exposed outside any more. Limestone is a traditional construction used natural stone, especially in western cultural buildings. It is widely used for the indoor decoration use.
Mechanical Properties
| ASTM | Unit | 10mm | 15mm | 20mm | |
| Unit theory weight | kg/m2 | 5.4 | 5.6 | 5.75 | |
| Tensile strength | E8 | N/mm2 | 806 | 598 | 455 |
| Endurance capacity | E8 | N/mm2 | 531 | 405 | 279 |
| Elongation | E8 | % | 1.2 | 1.4 | 1.7 |
| Bending rigidity | C393 | X106N.mm2 | 8.03 | 15.4 | 38.44 |
| Bend elasticity rate | N/mm2 | 50000 | 40600 | 38.44 | |
| Temeprature total extension coefficient | D696 | X10-6N/℃ | 0.24 | 0.24 | 0.24 |
| Heat conduction rate | D976 | Kcal/mhr℃ | 0.23 | 0.19 | 0.15 |
| Heat transform temperature | D648 | ℃ | 200 | 200 | 200 |
| Bonding strength | C297 | 12 | 12 | 12 | |
| Surtace smoothness | 1mm/M.Maximum deviation:1mm/M | ||||
| Flame retardabt property | Nonflammable,match relevant fire resistance standard | ||||
| Soundproof function | Be decided by layout of printed sheet installation angle,0-3dB | ||||
Feactures
| No. | Properties |
| 1 | Light weight |
| 2 | high strength |
| 3 | Improved anti-pollution ability |
| 4 | Easier to control color difference |
| 5 | Easy installation |
| 6 | Break the restricted area |
| 7 | Sound insulation and moisture-proof |
| 8 | Energy saving |
| 9 | Cut costs |
Technical Options
| Thickness of Backing Panel | 8-50 mm |
| Panel Thickness (Standard) |
20 mm for indoor; 25 mm for outdoor (6mm stone surface + 19mm backing panel commonly used) or customized |
|
Backing Panel Makeup (Interior curtain wall) |
Both sides 0.7mm, 0.8mm mill Aluminum panel |
| Stone | Mable / Granite / Limestone / Sandstone / Travetine,etc. |
| Finish | Polished / Honed / Flammed / Hammer Bush |
| Cell Size (Standard) | A6, 0.06mm |
| Adhesive | Aero Grade Epoxy Adhesive or PU glue |
| Anchoring Brackets | Aluminum or Stainless Steel |
| Application |
Interior wall, floor, ceiling, counter top; Exterior wall, cladding, special parts etc; Shipbuilding, Train, Aircrafts |
| Certification | NOA for High Velocity Hurricane Zone/Warnock&Hersey |
| Feature | Lightweight / Large Area / High Impact Strength / Fast Installation / Cost decrease/Eco-friendly/Sound and thermal insulation |
| Maximum Dimension (mm) | 1500×3000 , or Subject to slab size |
