Cornice Use Honeycomb Stone Panels , Thin Limestone Veneer Panels Anti - Wear

China Cornice Use Honeycomb Stone Panels , Thin Limestone Veneer Panels Anti - Wear supplier
Cornice Use Honeycomb Stone Panels , Thin Limestone Veneer Panels Anti - Wear supplier Cornice Use Honeycomb Stone Panels , Thin Limestone Veneer Panels Anti - Wear supplier

Large Image :  Cornice Use Honeycomb Stone Panels , Thin Limestone Veneer Panels Anti - Wear

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: ISO9001-2008
Model Number: SHP25(5/0.5+18.5+1)

Payment & Shipping Terms:

Minimum Order Quantity: 100 M2 for customized order and no request for stocked goods
Price: Negotiable
Packaging Details: Pearl Wool and foam board protected in plywood crate.
Delivery Time: within 4 weeks for one 20' container loading
Payment Terms: L/C, T/T
Supply Ability: 180,000 square meters per year
Contact Now
Detailed Product Description
Stone Type: Limestone Size In Mm*mm: 600*600
Surface Treated: Polished Application: Outdoor Decoration
Product Name: Stone Honeycomb Roof Panel Thickness: 20 Mm Or 25 Mm
High Light:

honeycomb granite panels

,

lightweight structural panels

Cornice Use Stone Honeycomb Roof Panel with Variety of Stone Options for Building Decoration



General Description

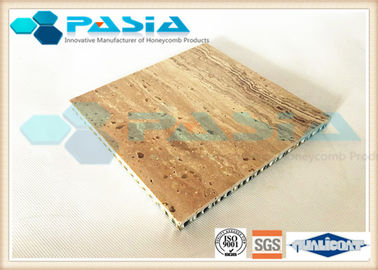

Cornice Use Stone Honeycomb Roof Panel with Variety of Stone Options for Building Decoration is a light weight but high strength stone honeycomb composite roof panel for the large scale building cornice use.



There are lots of stone type and specification for choosing with. The architects or designers can choose any of the stones available worldwide to be the stone veneer sources.



The ultra-thin stone honeycomb composite panels are innovated because of the limited natural stone resources and its application restrict. It is a new type of building materials with a better impact resistance than the ordinary natural stone is with a weight of only 16 kg, is only 1/6 of the weight of its original natural stone slide but the compressive strength is 6 times more than the original stone slices. Completely overcomed the natural stone’s defects on weight, fragile and other aspects, it provides a more superior performance and wide application field as a new generation building material. Ultra-thin stone honeycomb composite panel is simply bonded with an about 3mm ~ 5mm thick stone sheet and an aluminum honeycomb substrate with a special purpose adhesive. It not only saves the stone material and reduces the weight of finished products, but reflects better in the stone effect. Based on these, there is a large demand from the market.



Sound and heat insulation



The natural stone itself shows good heat and sound insulation which is increased when backed with an aluminum honeycomb panel. The natural stone can maintain temperature so it will not be too cold in winter or too hot in summer. After reinforced with the aluminium honeycomb panel, the heat and sound cannot easily penetrate through the sandwich composite panel easily so that the stone honeycomb panel covered building will maintain heat from transferring both inward and outward so it makes the building a high energy saving rate when using air-conditioning. Also the stone honeycomb panel covered building has good sound insulation because the sound wave cannot penetrate easily through the cladding too. Furthermore, the aluminum honeycomb panel backed stone panels offer a certain high flexibility helping withstand high wind pressure, earthquake vibration, and external explosion shock.



Mechanical Properties



  ASTM Unit 10mm 15mm 20mm
Unit theory weight   kg/m2 5.4 5.6 5.75
Tensile strength E8 N/mm2 806 598 455
Endurance capacity E8 N/mm2 531 405 279
Elongation E8 % 1.2 1.4 1.7
Bending rigidity C393 X106N.mm2 8.03 15.4 38.44
Bend elasticity rate   N/mm2 50000 40600 38.44
Temeprature total extension coefficient D696 X10-6N/℃ 0.24 0.24 0.24
Heat conduction rate D976 Kcal/mhr℃ 0.23 0.19 0.15
Heat transform temperature D648 200 200 200
Bonding strength C297   12 12 12
Surtace smoothness 1mm/M.Maximum deviation:1mm/M
Flame retardabt property Nonflammable,match relevant fire resistance standard
Soundproof function Be decided by layout of printed sheet installation angle,0-3dB



Feactures



It possesses advantages of:

1. Light weight

2. High strength

3. Increased anti-pollution ability

4. Easier control of uniform color

5. Easy installation

6. Workable at the area of regular stone not workable

7. Soundproof, moistureproof

8. Energy saving and consumption reduction

9. Reduce costs





Technical Options



Thickness of Backing Panel 8-50 mm
Panel Thickness (Standard)

20 mm for indoor; 25 mm for outdoor

(6mm stone surface + 19mm backing panel commonly used) or customized

Backing Panel Makeup

(Interior curtain wall)

Both sides 0.7mm, 0.8mm mill Aluminum panel

Stone Mable / Granite / Limestone / Sandstone / Travetine,etc.
Finish Polished / Honed / Flammed / Hammer Bush
Cell Size (Standard) A6, 0.06mm
Adhesive Aero Grade Epoxy Adhesive or PU glue
Anchoring Brackets Aluminum or Stainless Steel
Application

Interior wall, floor, ceiling, counter top;

Exterior wall, cladding, special parts etc;

Shipbuilding, Train, Aircrafts

Certification NOA for High Velocity Hurricane Zone/Warnock&Hersey
Feature Lightweight / Large Area / High Impact Strength / Fast Installation / Cost decrease/Eco-friendly/Sound and thermal insulation
Maximum Dimension (mm) 1500×3000 , or Subject to slab size





Application:



Large scale building cornice
