Product Details:
Payment & Shipping Terms:
|
| Property: | Super Light And High Strength | Bonding Method: | Glue Bonded |
|---|---|---|---|
| Cell Size: | 5 Mm | Foil Thickness: | 0.03 Mm |
| Foil Treated: | Degreased | Application: | Aircraft Buckheads |
| Optimized Supply: | Expanded | Supply Method: | Expanded, Slice, Block |
| High Light: | 5052 Aluminum Honeycomb Core,0.03MM Aluminum Honeycomb Core,Expanded aircraft honeycomb aluminum |
||

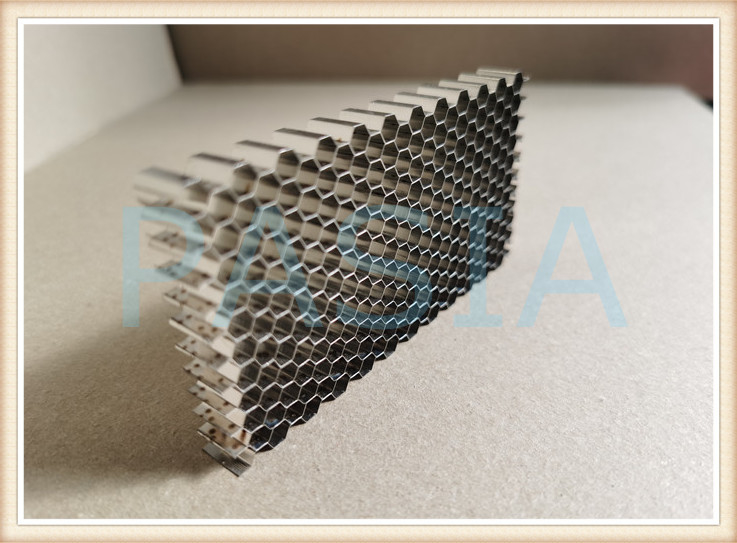

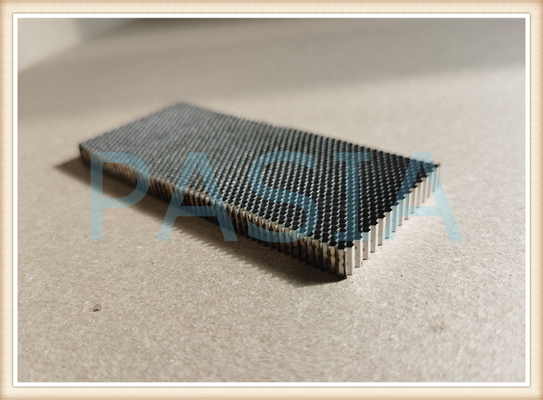

0.03 mm Thick Foil 5052 Aluminum Honeycomb Core for Aircraft Buckheads is made of degreasing treated aluminum foil of 0.03 mm thick bonded by special purpose adhesive with a cell side length 5 mm of corrosion resistant Al5052 grade aluminum foil for producing aircraft buckheads. The finished panel has a property of supper light and high strength which is very suitable for aircraft use.
Process
General process of an aluminum honeycomb core initiated with an aluminum foil roll and surely the foil is specially treated.
The adhesive tapes are printed to the foil surface with the intervals and width pre-determined by the cell size and strength requirement.
The foil paper is cut into required size to be piled up on the stacking table with equipment and man supervision on the adhesive tape positioning.
These stacked loose blocks should be pressed in a heated press to cure the adhesive so that the sheets of foil are bonded together to hardened block.
The aluminum honeycomb block can be cut into slices with the height of the slices tailored to customized requirements.
Finally, no matter it is done in supplier’s plant or at client’s workshop, the honeycomb should be expanded before forming aluminum honeycomb panel.
The following materials are for forming honeycomb cores:
1. Aluminum foil
Regularly, 3003H19/5052H18 aluminum alloy foils after strict surface treatment are used for producing aluminum honeycomb core.
2. Special Purpose Chemical Adhesive
Modified epoxy glue for high temperature cure process can provide not only sufficient bonding strength, but also environmental resistance and high or low temperature resistant properties. The joint strength of aluminum honeycomb core is the keypoint of evaluating the core’s performance. The minimum requirement should be more than 2.0N/mm.
Specification of Aluminum Honeycomb Core:
| Item | Unit | Specification | ||||||||
| Cell Size | inch | 1/8” | 3/16” | 1/4” | ||||||
| mm | 2.6 | 3.18 | 3.46 | 4.33 | 4.76 | 5.2 | 6.35 | 6.9 | 8.66 | |
| Side Length | mm | 1.5 | 1.83 | 2 | 2.5 | 2.75 | 3 | 3.7 | 4 | 5 |
| Foil Thickness | mm | 0.03-.05 | 0.03-.05 | 0.03- 0.05 | 0.03-.06 | 0.03-0.06 | 0.03-0.08 | 0.03-0.08 | 0.03-0.08 | 0.03-.08 |
| Width | mm | ≤440 | ≤440 | ≤440 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 |
| Length | mm | ≤1500 | ≤1500 | ≤2000 | ≤3000 | ≤3000 | ≤3200 | ≤4000 | ≤4000 | ≤5500 |
| Height | mm | 1.7~150 | 1.7~150 | 1.7~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 |
|
|
||||||||||
| Item | Unit | Specification | ||||||||
| Cell Size | inch | 3/8” | 1/2” | 3/4” | 1” | |||||
| mm | 9.53 | 10.39 | 12.7 | 13.86 | 17.32 | 19.05 | 20.78 | 25.4 | ||
| Side Length | mm | 5.5 | 6 | 7.33 | 8 | 10 | 11 | 12 | 15 | |
| FoilThickness | mm | 0.03-.08 | 0.03-0.08 | 0.03-0.08 | 0.03-.08 | 0.03-0.08 | 0.03-0.08 | 0.03-0.08 | 0.03- 0.08 | |
| Width | mm | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | |
| Length | mm | ≤5700 | ≤6000 | ≤7500 | ≤8000 | ≤10000 | ≤11000 | ≤12000 | ≤15000 | |
| Height | mm | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | |
Specifications can be customized according to customer’s requirement.
Supply modes of Aluminum Honeycomb Core:
- Unexpanded block
- Unexpanded slice
- Expanded sheet
- Pieces cut to size
