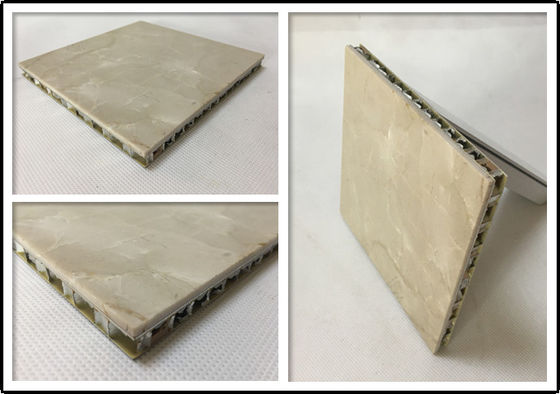

Limestone Honeycomb Panel With Edge Sealed For Indoor Decoration

China Limestone Honeycomb Panel With Edge Sealed For Indoor Decoration supplier
Limestone Honeycomb Panel With Edge Sealed For Indoor Decoration supplier Limestone Honeycomb Panel With Edge Sealed For Indoor Decoration supplier

Large Image :  Limestone Honeycomb Panel With Edge Sealed For Indoor Decoration

Product Details:

Place of Origin: P. R. China
Brand Name: PASIA
Certification: ISO9001-2008
Model Number: SHP25(5/0.5+18.5+1)-Limestone

Payment & Shipping Terms:

Minimum Order Quantity: 100 M2 for customized order and no request for stocked goods
Price: Negotiable
Packaging Details: Pearl Wool and foam board protected in plywood crate.
Delivery Time: within 4 weeks for one 20' container loading
Payment Terms: L/C, T/T
Supply Ability: 180,000 square meters per year
Detailed Product Description
Stone Type: Limestone Size In Mm*mm: 300*300
Surface: Flat Application: Indoor Decoration
Product Name: Limestone Aluminium Honeycomb Panel Thickness: 20. 21- 25 (mm)
High Light:

aluminium honeycomb sandwich panel

,

honeycomb marble panels

Limestone Aluminum Honeycomb Panel With Edge Sealed For Indoor Decoration



Product Description



Limestone aluminium honeycomb panel is a finished sandwich honeycomb backed with a limestone plate. It shows good flatness on the surface so that the installed buiding apperance will be super flat. It is generally used for indoor decoration.



Stone Description:



Limestone is a sedimentary rock composed largely of the minerals calcite and aragonite, which are different crystal forms of calcium carbonate (CaCO3). Most limestone is composed of skeletal fragments of marine organisms such as coral or foraminifera.


Limestone makes up about 10% of the total volume of all sedimentary rocks. The solubility of limestone in water and weak acid solutions leads to karst landscapes, in which water erodes the limestone over thousands to millions of years. Most cave systems are through limestone bedrock.



Limestone has numerous uses: as a building material, as aggregate for the base of roads, as white pigment or filler in products such as toothpaste or paints, and as a chemical feedstock.



Stone Honeycomb Panel



The ultra-thin stone honeycomb composite panels are innovated because of the limited natural stone resources and its application restrict. It is a new type of building materials with a better impact resistance than the ordinary natural stone is with a weight of only 16 kg, is only 1/6 of the weight of its original natural stone slide but the compressive strength is 6 times more than the original stone slices. Completely overcomed the natural stone’s defects on weight, fragile and other aspects, it provides a more superior performance and wide application field as a new generation building material. Ultra-thin stone honeycomb composite panel is simply bonded with an about 3mm ~ 5mm thick stone sheet and an aluminum honeycomb substrate with a special purpose adhesive. It not only saves the stone material and reduces the weight of finished products, but reflects better in the stone effect. Based on these, there is a large demand from the market.



The advantages of the stone honeycomb panel:



No. Properties Detailed Description
1 Light weight The marble veneer for the marble composite panel with aluminium plastic panel can be only 3 ~ 5mm thick. Commonly used composite panel with tiles or granite is only with a thickness of about 12mm. It saves much cost at least on the transportation. Accordingly, it is the best choice for the use on the building with a load limit.
2 high strength Marble sandwiched with the tiles, granite, aluminum honeycomb panels and other composite, the bending and fracture resistance, shear strength were significantly improved, which greatly reduce the breaking rate during transportation, installation and use.
3 Improved anti-pollution ability Regular original marble plate will change color or with dirty pollution on the surface if using the cement wet pasting. While for the composite panel, as the dense and hard substrate and the glue film, the above mentioned situation will not happen.
4 Easier to control color difference The marble veneer used on the marble composite panels is three or four times more than the original plate. Therefore, the color and pattern can be 3 or 4 times more the same as the original marble plate.
5 Easy installation Depending on the above characteristics, the efficiency and safety and costs of the installation process are greatly improved.
6 Break the restricted area The original marble plate can be used on the inside and outside wall, ground, windowsill, porch, desktop, etc. But for the ceiling, no decoration company will take risk to use no matter it is marble or granite. The aluminum-plastic backed marble panels or aluminum honeycomb backed marble panel can break through the restricted area of stone honeycomb panel. Because it is very light that the weight of the whole body is only 1/5 to 1/10 of the original plate so that it is capable of being used on the ceiling.
7 Sound insulation and moisture-proof An aluminum honeycomb backed stone panel transcends the properties of the original stone panel on the sound insulation, moisture and heat insulation and cold insulation performance because of the honeycomb structure.
8 Energy saving Further to the above mentioned, Stone aluminum honeycomb panel, after installation in the indoor and outdoor, can greatly reduce the consumption of electricity and heat.
9 Cut costs Due to thin and light stone composite material, it can save costs on transportation and installation. Furthermore, the finished composite stone panel will be more cost-efficient than their original plate.







Applications:



1.External wall;

2.Interior wall;

3.Furniture top;

4.Washroom cubicles;

5.Bathroom,kitchen interior decoration;

6.Marine vessels interior decoration;



Limestone Honeycomb Panel With Edge Sealed For Indoor Decoration
