Sound Proof Aluminum Honeycomb Sandwich Panels Tooled Surface Treatment

China Sound Proof Aluminum Honeycomb Sandwich Panels Tooled Surface Treatment supplier
Sound Proof Aluminum Honeycomb Sandwich Panels Tooled Surface Treatment supplier Sound Proof Aluminum Honeycomb Sandwich Panels Tooled Surface Treatment supplier

Large Image :  Sound Proof Aluminum Honeycomb Sandwich Panels Tooled Surface Treatment

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: ISO9001-2008
Model Number: PHP-G-371

Payment & Shipping Terms:

Minimum Order Quantity: 100 m2
Price: Negotiable
Packaging Details: Pearl Wool and foam board protected in plywood crate. Or simplified wooden pallets.
Delivery Time: Within 4 weeks after order and down payment
Payment Terms: L/C, T/T
Supply Ability: 500,000 m2 per year
Detailed Product Description
Material: A3003 Surface Treatment: Tooled
Quality Guarantee Period: 10 Years Size: 600mm X 600mm
Application: Curtain Wall Board Thickness: 22 Mm
High Light:

aluminum honeycomb sheet

,

aircraft honeycomb floor panels


Sound Proof Aluminum Honeycomb Sandwich Panels Tooled Surface Treatment

Product Discription

The sound proof aluminum honeycomb core curtain wall is a lightweight wall with decorative effects commonly used in modern large and high-rise buildings. It is the outer wall of the building and does not bear the weight. It consists of a panel and a support structure system. Therefore, the curtain wall material needs to have the basic characteristics of light weight, high strength, waterproof and rainproof, sound insulation and the like. The aluminum honeycomb panel is an adhesive sandwich system consisting of a honeycomb core and a special adhesive. Industrial aluminum honeycomb panels are a sound proof metal sandwich material. It is lightweight, but very stable. The honeycomb core foil has small holes in its wall so that air does not flow in the panel housing and acts as a sound insulator. The surface of the aluminum honeycomb curtain wall panel can be processed, trimmed, embedded, engraved, etc. as needed to make the panel suitable for special decorative conditions.



No. Material Thickness Specification Edge Treatment Pre-treatment
1 Aluminium 5mm A3003 Folded Screw Enbedded
2 Aluminium 10mm A5052 RHS Sealed Perforated
3 Aluminium 25mm A2024 Glue Sealed
4 Aluminium customized A5056 Open Edge


General Discription

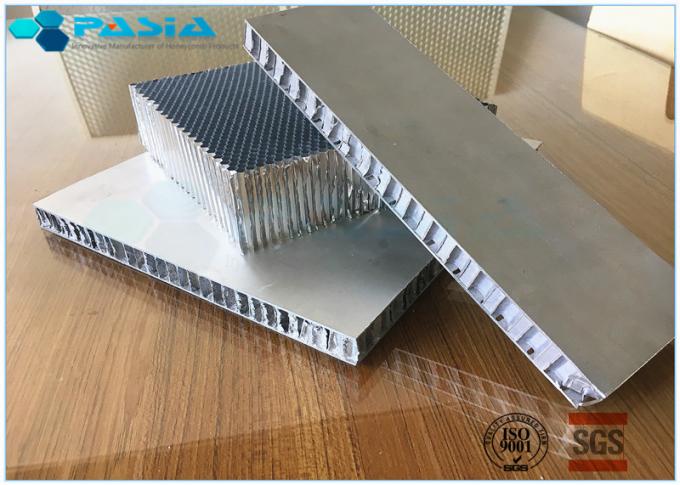

Aluminum honeycomb panel is a bonded sandwich structure system of two surface aluminium plates and one honeycomb cores with a special purpose adhesive. Industrial used aluminium honeycomb panel will add some more processes such as surface treatment, edging, embedding, carving and so on to make the panel suitable for special conditions. It has been widely used by the industries of civil construction, transportation, exhibition, signage, elevator, clean room etc. The honeycomb technology is from aerospace technology. The whole production process is finished in the modern factory, using hot pressing or vacuum pressing technology. Due to the high thermal conductivity between the aluminum plates and honeycomb, it is synchronized the thermal expansion and contraction of the inside and outside aluminium material. There are small holes on the honeycomb core foil wall so that the air is free of flowing inside the panel box. Furthermore, sliding mounting buckle system does not cause structural deformation during thermal expansion and contraction.


Features


The center material is aluminum hexagonal honeycomb with a small density (about 3 to 7 kg per square meter), about 1/5 of the weight of wood with the same area and thickness, 1/6 of the glass, 1/7 of solid aluminium, which greatly reduced the building load and construction cost. Thanks to the air contained in the core, the panel can be sound and thermal insulated. Because of no combustible material contained, the fire rating can be at least B1 level. The panel performs well also on waterproof, moisture-proof, no harmful gas release, with a high unit mass of the specific strength and stiffness, not easy to deformation, completely overcoming the collapse and deformation in the center area if with large panel. The panel edge can be cut depending on real conditions. The PVDF coating can guarantee the product life more than 30 years.
After surface treated with corrosion resistant fluorocarbon resin, it can be widely used on curtain wall, roof, large façade, signs and interior decoration. The front plate of the aluminum honeycomb panel is painted with E. C. C. A. quality standards PVDF fluorocarbon paint with ordinary color or metallic color, so the surface has excellent weather resistance.
In case of heavy rain, there is particularly large noise when the raindrops hit the aluminum veneer or aluminum-plastic panel, while honeycomb panel can avoid this situation. Aluminum honeycomb panels are generally made of fluorocarbon coated aluminum plates. The continuous roller coating with PVDF material is the most important point to avoid color difference and flat coating film. Based on this, it can keep the exterior building with bright color for long time.


Application:

(1) building external curtain wall panel

(2) interior decoration works

(3) billboards

(4) ship building

(5) aviation manufacturing industry

(6) indoor partition and commodity display stand

(7) Commercial vehicle and container truck body

(8) bus, train and subway use


(9)With strict environmental requirements of the modern furniture industry, aluminum honeycomb panel is an ideal material to produce furniture. Depending on Its completely non-toxic green quality, it is not necessary for the furniture manufacturers to process environmental procedures. In addition, the surface veneer for aluminum honeycomb panels can be diversified such as solid wood, aluminum, gypsum board, natural marble etc



(10) aluminum honeycomb panel partition: the emergence of aluminum honeycomb panel partition breaks the traditional partition mode, with a noble and fresh style.
