SS Honeycomb Seal Gas Turbine , Turbine Steel Honeycomb Sheet

China SS Honeycomb Seal Gas Turbine , Turbine Steel Honeycomb Sheet supplier

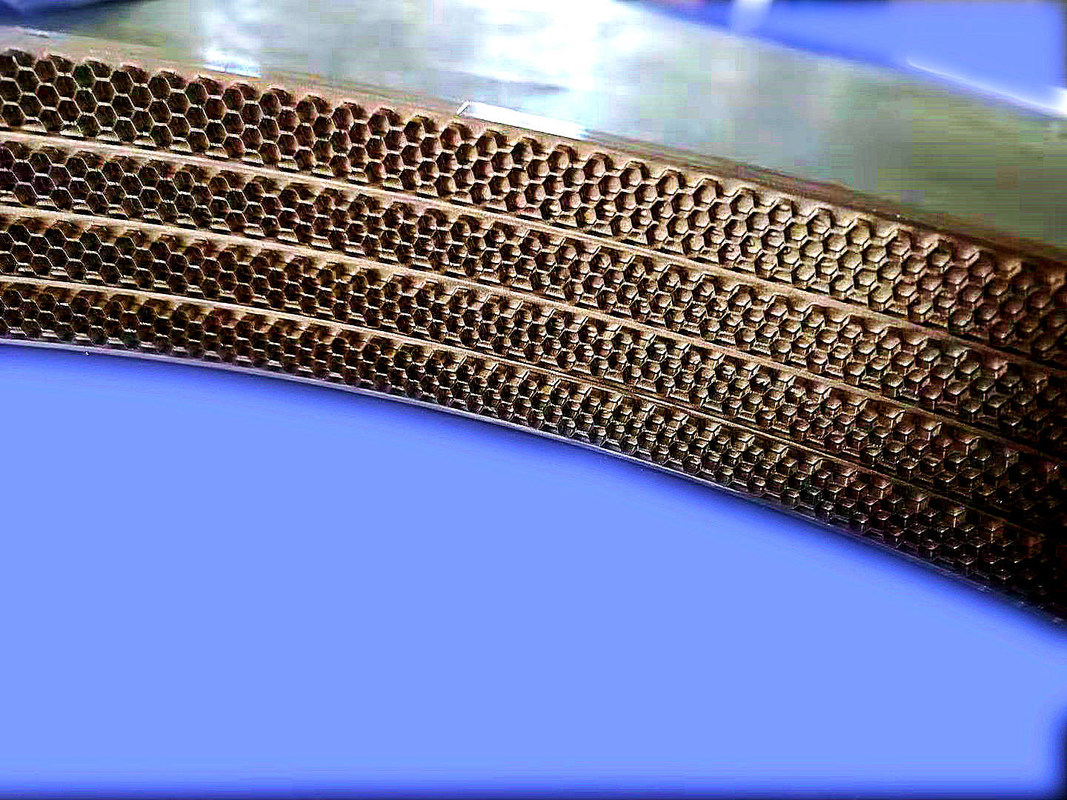

Large Image :  SS Honeycomb Seal Gas Turbine , Turbine Steel Honeycomb Sheet

Product Details:

Place of Origin: China
Brand Name: MICH
Certification: ISO9001
Model Number: WSSHCS

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD20-USD200,000
Packaging Details: plywood crates
Delivery Time: in one month
Supply Ability: Upon Order
Contact Now
Detailed Product Description
Process: Welded Material: Stainless Steel
Industry: Turbine Usage: Seal
Method: Spot Welding Grade: SS304,SS316L
Advantage: Very Low Cross Coupling Application: Aircraft Engine Part
High Light:

SS Honeycomb Seal Gas Turbine

,

ISO Honeycomb Seal Gas Turbine

,

Turbine Steel Honeycomb Sheet

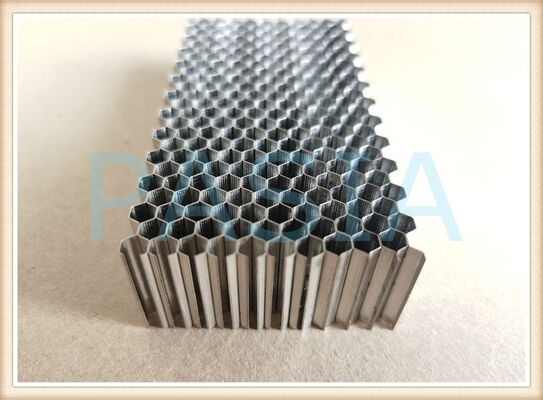

Welded stainless steel honeycomb seal is further fabricated from honeycomb core which are being used on modern gas turbine engine or power turbine. It is a necessary part for the modern turbine machinery. Based on the honeycomb structure, the working fluid overflow in the radial clearances is minimized, the relative efficiency be increased, fuel consumption be reduced by 5% and abrasive wear of the turbine flow section be reduced as well.



Advantages

1 Very low cross coupling
2 Higher direct damping that labyrinth seals
3 More forgiving than labyrinth seals in the event of a rotor-stator rub
4 Variety of materials available to serve a wide range of applications
5 Capable of sustaining higher temperatures than conventional labyrinth seals

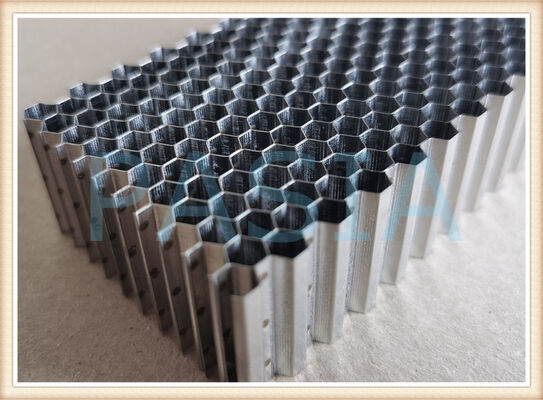

Spot welding device is three electrodes in the upper part, which carries five welding points across the width of the strip of corrugated sheet metal. Spot welding device filled with press and advance mechanisms. There are five welders in every unit area to make sure the strength is enough and uniformly distributed based on electrodes welding of stack and resistance. The honeycomb core generally requires a good precision of welding process, high equipment control on the product and strict quality control during process. Stainless steel honeycomb is mainly for aerospace, high industrial application and civil areas, with the structure comprised of special foils (plates). Instead of general widely used adhesive bonding, stainless steel honeycomb is welded between those joint areas of the hexagonal shapes.



Welded honeycomb seals are an integral part which have to be used on existing aircraft engines and developing engines (turbofan, turboshaft engines and auxiliary power units). For the gas and steam turbines used in the power and oil/gas industries, as well as turbo-compressors should also be supported by this honeycomb seal.
