Welded Stainless Steel Honeycomb Core For Water Treatment

China Welded Stainless Steel Honeycomb Core For Water Treatment supplier
Welded Stainless Steel Honeycomb Core For Water Treatment supplier Welded Stainless Steel Honeycomb Core For Water Treatment supplier

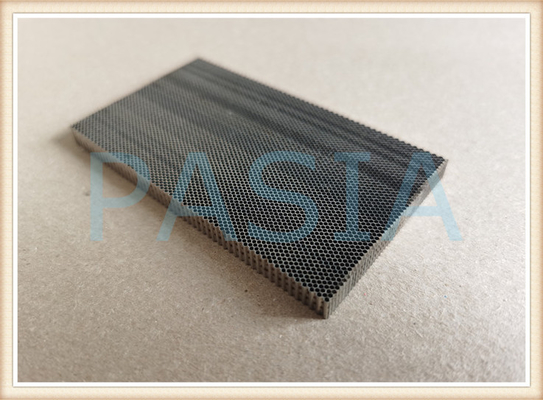

Large Image :  Welded Stainless Steel Honeycomb Core For Water Treatment

Product Details:

Place of Origin: China
Brand Name: MICH
Certification: ISO9001
Model Number: WSSHCWF

Payment & Shipping Terms:

Minimum Order Quantity: 1 m2
Price: USD0.5-USD5 per Square Meter
Packaging Details: plywood crates
Delivery Time: in one month
Payment Terms: L/C, T/T
Supply Ability: 200 thousand m2
Contact Now
Detailed Product Description
Material: Stainless Steel Bonding: Spot Welding Or Laser
Material Thickness: 0.08-0.2 Mm Cell Side Length: 0.8-25 Mm
Height: 3-250 Mm Applications: Water Filter
Grade: SS304,SS316L Shape: Customized
High Light:

Welded Stainless Steel Honeycomb Core


0.2mm Stainless Steel Honeycomb Core


316 honeycomb steel

Welded Stainless Steel Honeycomb Core for Water Filter is a specially bonded stainless steel honeycomb core with corrosion resistance property. It is widely used for the water treatment as water filter.




Cell Size (mm) 25.0 16.0 12.7 10.0 6.4 5.6 4.8 3.2 1.6 0.8
Height Range (mm) 50-450 50-450 50-150 50-150 5-100 5-90 5-60 5-60 3-30 3-25
Foil Thickness (mm) 0.20 0.20 0.20 0.20 0.20 0.20 0.20 0.20 0.076 0.05
Cubic Density (kg/m3) 165 256 320 403 616 699 806 1164 909 1164
Materials SS304, SS316 or SS316L
Welding Spot Welding with one area five spots or laser welding
Shapes Customized shape available not limited to ring, plate, loop etc





Welded honeycomb core, no matter what material is, such as aluminum, stainless steel, steel, titanium etc, possesses better mechanical properties against regularly produced glued honeycomb core. So it performs significantly better again the common honeycomb bonded by adhesive on strength, modulus, corrosion resistance, dimensional stability etc. However, generally, these critical performance variables should be evaluated: material, airflow and attenuation.


Stainless Steel Honeycomb Core



1. Material Composition


Stainless steel grade should be considered according to the real application. Custom materials other than stainless steel are available upon request. Here are the parameters need to be evaluated:



Material type and grade is the first aspect to be evaluated then plating, discussed in depth later, can improve durability.



Material, structure and thickness of the material can affect the total part weight.


2. Corrosion resistance


Typically brass and stainless steel should be used in slashing environments. Plating or nonconductive surface coatings can improve corrosion resistance for all honeycomb types.


3. Airflow & Attenuation


Airflow and attenuation are inversely proportional. Infinitely large honeycomb cells result in infinitely small attenuation (and vice versa). Typically, as a design baseline, airflow performance requirements are calculated to meet thermal performance needs for the assembly that the vent is to be installed onto. Once airflow is determined, attenuation and other requirements can be evaluated. Standard cell sizes for honeycomb are 1/16", 1/8" and 1/4", with 1/8" being most common. Standard thicknesses are 1/4," 1/2" and 1," with 1/4" being most common.
