Stainless Steel Welded Frameless Honeycomb Ventilation Panels 0.8mm Dia

China Stainless Steel Welded Frameless Honeycomb Ventilation Panels 0.8mm Dia supplier

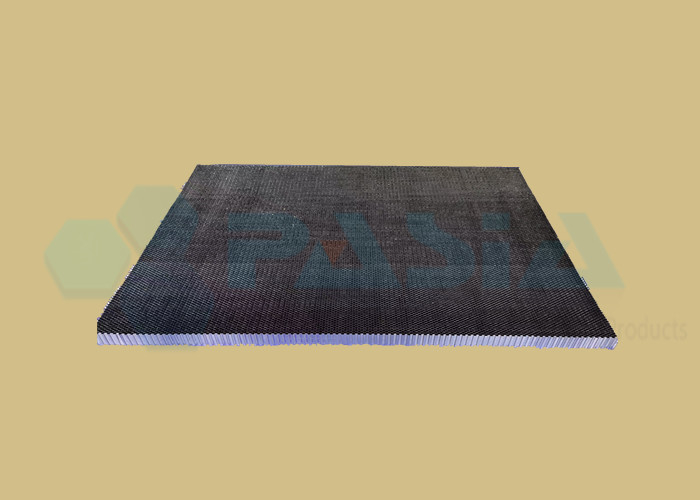

Large Image :  Stainless Steel Welded Frameless Honeycomb Ventilation Panels 0.8mm Dia

Product Details:

Place of Origin: China
Brand Name: PASIA
Certification: ISO9001
Model Number: FHVP

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD20-USD200,000
Packaging Details: plywood crates
Delivery Time: in one month
Supply Ability: Upon Order
Contact Now
Detailed Product Description
Material: SS Process: Welded
Use: Shielded Ventilation Application: EMI Shielding
Dimension: 76*76-483*483 Method: Reinforcing Available
Reinforcement: Reinforcing Bar Cell Diameter: From 0.8 Mm Up To Customized Request
High Light:

Stainless Steel Honeycomb Ventilation Panels


EMI Shielded Honeycomb Ventilation Panels


0.8mm Dia Honeycomb Ventilation Panels

Stainless Steel Welded Frameless Honeycomb Ventilation Panel

EMI shielded ventilation panels for ventilation and heating without frame are widely used for the clients who need further processing. They are developed by Pasia Industries with the panels of large sizes and environment resistant. Super large sizes can be manufactured. Good mechanical strength and environmental chracteristics can be acheived.  Better cost/performance ratio is also a condition for suitable application.


Honeycomb vents are available with frames, pre-drilled with fasteners, or with flow-drilled thread holes. The standard material is stainless steel which can be given a electroplated.


If high shielding levels are required, the use of cross-cell honeycombs is recommended. The shielding performance will improve as airflow is decreased, but not eliminated.


For military applications we make a heavy hot-dip galvanized mild-steel version. Please contact us for more information.



Stainless Steel Honeycomb Core


Specification Dimension Venilated Area Installated Size Installation Point Numbers
WxL AxB C D E F Wside Lside
ANFPSNI76X7632W 76X76 51X51 32 32     1 1
ANFPSNI101X10132W 101X101 76X76 44 44     1 1
ANFPSNI101X20332W 101X203 76X177 44 19 76   1 3
ANFPSNI127X12732W 127X127 102X102 57 19 76   1 2
ANFPSNI127X15232W 127X152 102X127 25 25 89 64 2 2
ANFPSNI127X17732W 127X177 102X152 25 38 88 64 2 2
ANFPSNI152X15232W 152X152 127X127 25 25 89 89 2 2
ANFPSNI152X17732W 152X177 127X152 25 38 88 89 2 2
ANFPSNI177X17732W 177X177 152X152 38 38 88 88 2 2
ANFPSNI203X20332W 203X203 177X177 51 19 76 88 2 3
ANFPSNI203X25432W 203X254 177X229 51 32 88.5 88 2 3
ANFPSNI305X30532W 305X305 279X279 32 32 76 76 4 4
ANFPSNI305X61032W 305X610 279X584 32 33 88.5 76 4 7
ANFPSNI483X48332W 483X483 457X457 45 45 76 76 6 6




1. Can be made round or rectangular shaped
2. High shielding performance
3. Low air-flow resistance
4. Reduction of turbulence

5. Lightweight




Welded Stainless Steel honeycomb core

EMI/RF Shielding

Operation tables for water jets

Structural core material for sandwich structure for aircraft, thrust reversers, exhaust nozzles,

Aircraft Engine Sealing

Turbine Sealing for power generation

Air, water and gas flow straighteners and filters
