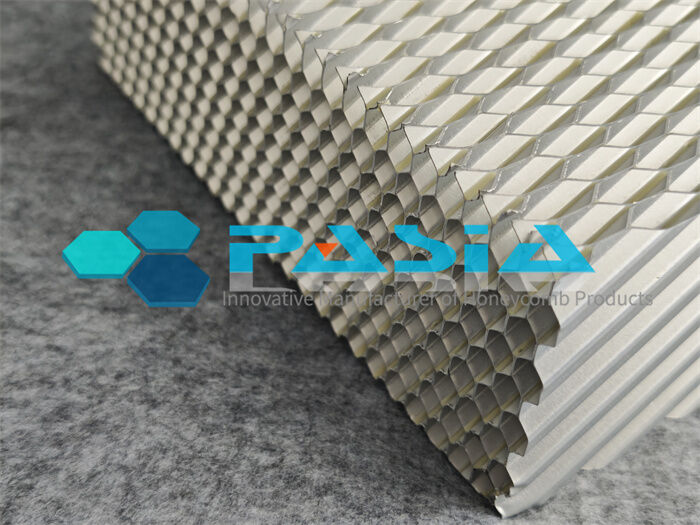

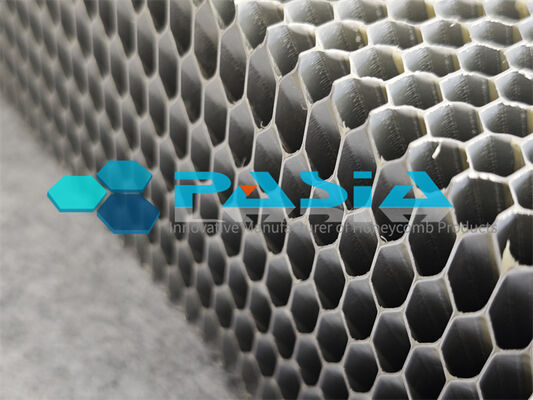

Pre-crushed Custom Aluminum Honeycomb Impact Attenuator for Highway Safety

High Strength Anti-crush Lightweight Aluminum Honeycomb Core Crash Cushion

The Pre-crushed Custom Aluminum Honeycomb Impact Attenuator is a high-performance energy absorption device designed specifically for highway safety applications. Manufactured from aerospace-grade aluminum honeycomb core material, this impact attenuator provides reliable protection for road maintenance vehicles, work zones, and roadside infrastructure by effectively dissipating kinetic energy during collisions .

Key Technology: Pre-crushing Mechanism

The defining feature of this impact attenuator is its pre-crushed construction. During a collision, untreated aluminum honeycomb exhibits a substantial initial peak stress before stable crushing begins. The pre-crushing process eliminates this initial force spike by pre-compressing the first few millimeters of the core, resulting in a uniform, predictable crushing response from the onset of impact .

Once crushing initiates, the honeycomb maintains a near-constant stress level throughout the deformation process, providing consistent energy absorption at approximately half the peak stress level. This continuous plastic deformation makes pre-crushed aluminum honeycomb an ideal material for impact energy management .

Material Specifications

Performance Characteristics

Crush Strength

Typical plain crushing strength reaches approximately 9.6 MPa for standard configurations, with the ability to customize crush strength through variations in foil thickness and cell geometry .

Energy Absorption

The honeycomb structure absorbs impact energy through progressive folding of cell walls along the vertical direction. This process transforms kinetic energy into internal work through plastic deformation, providing efficient protection for both vehicle occupants and infrastructure .

Crashworthiness Parameters

Studies on similar aluminum honeycomb attenuators demonstrate effective protection with:

· Mean acceleration maintained below 20g for occupant safety

· Controlled, predictable deformation without abrupt force spikes

· High specific energy absorption (SEA) due to excellent strength-to-weight ratio

Design Advantages for Highway Safety

1. Eliminated Peak Force

Pre-crushing removes the initial high-force peak that occurs during the first few millimeters of deformation, reducing the sudden deceleration shock transmitted to occupants and equipment .

2. Customizable Performance

Crush strength can be precisely tailored through selection of:

· Cell size and geometry

· Foil thickness and layer count

· Core density

· Overall dimensions and shape

3. Superior Strength-to-Weight Ratio

Aluminum honeycomb provides exceptional energy absorption per unit mass, making it ideal for mobile applications such as truck-mounted attenuators .

4. Environmental Durability

Aluminum 5052 alloy with anodized or passivated surface treatment ensures excellent corrosion resistance for long-term outdoor highway deployment .

5. Directional Controllability

The attenuator maintains directional stability during impact, preventing unintended vehicle redirection .

Applications

Highway Maintenance Vehicles

Mounts to the rear of road maintenance trucks to protect workers and equipment from errant vehicles in work zones .

Roadside Infrastructure

Protects columns, racks, and corners in warehouses, material handling facilities, and highway structures .

Crash Cushion Systems

Integrated into permanent or portable crash cushion systems at toll plazas, bridge piers, and highway exits .

Custom Manufacturing Capabilities

Each impact attenuator can be custom-engineered to meet specific project requirements:

· Dimensions: Standard 1200×2400mm sheets or fully customized sizes

· Crush Strength: Tailored through cell geometry and foil selection

· Shape: Complex geometries available for specific mounting requirements

· Volume: Capable of 180,000 square meters annual production capacity

Quality Assurance

· Manufactured under ISO9001-2015 certified processes

· Proven performance validated through finite element analysis and physical crash testing

· Consistent quality with typical minimum order quantities of 100m² for custom orders

Conclusion

The Pre-crushed Custom Aluminum Honeycomb Impact Attenuator represents a proven, reliable solution for highway safety applications. Its unique pre-crushing technology eliminates dangerous initial force peaks while maintaining consistent, predictable energy absorption throughout the entire impact event. With customizable performance characteristics, corrosion-resistant materials, and proven crashworthiness, this attenuator provides essential protection for road workers, motorists, and infrastructure.
