Ultra - Thin Honeycomb Stone Panels For Railway Stations Building Good Impact Resistance

China Ultra - Thin Honeycomb Stone Panels For Railway Stations Building Good Impact Resistance supplier
Ultra - Thin Honeycomb Stone Panels For Railway Stations Building Good Impact Resistance supplier Ultra - Thin Honeycomb Stone Panels For Railway Stations Building Good Impact Resistance supplier

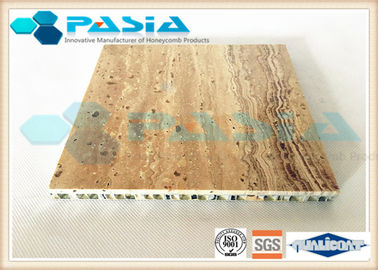

Large Image :  Ultra - Thin Honeycomb Stone Panels For Railway Stations Building Good Impact Resistance

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: ISO9001-2008
Model Number: SHP25(5/0.5+18.5+1)

Payment & Shipping Terms:

Minimum Order Quantity: 100 M2 for customized order and no request for stocked goods
Price: Negotiable
Packaging Details: Pearl Wool and foam board protected in plywood crate.
Delivery Time: within 4 weeks for one 20' container loading
Payment Terms: L/C, T/T
Supply Ability: 180,000 square meters per year
Detailed Product Description
Stone Type: Any Natural Stone Size In Mm*mm: 600*600 1200*1200
Surface Treated: Polished Application: Indoor Or Outdoor Decoration
Product Name: Stone Honeycomb Panel Thickness: 25 Mm
High Light:

aluminium honeycomb sandwich panel

,

honeycomb marble panels

Granite Stone Honeycomb Panel with Edge Open and Stone Surface Protected for Outdoor Decoration



General Description



The ultra-thin stone honeycomb composite panels are innovated because of the limited natural stone resources and its application restrict. It is a new type of building materials with a better impact resistance than the ordinary natural stone is with a weight of only 16 kg, is only 1/6 of the weight of its original natural stone slide but the compressive strength is 6 times more than the original stone slices. Completely overcomed the natural stone’s defects on weight, fragile and other aspects, it provides a more superior performance and wide application field as a new generation building material. Ultra-thin stone honeycomb composite panel is simply bonded with an about 3mm ~ 5mm thick stone sheet and an aluminum honeycomb substrate with a special purpose adhesive. It not only saves the stone material and reduces the weight of finished products, but reflects better in the stone effect. Based on these, there is a large demand from the market.



Mechanical Properties



  ASTM Unit 10mm 15mm 20mm
Unit theory weight   kg/m2 5.4 5.6 5.75
Tensile strength E8 N/mm2 806 598 455
Endurance capacity E8 N/mm2 531 405 279
Elongation E8 % 1.2 1.4 1.7
Bending rigidity C393 X106N.mm2 8.03 15.4 38.44
Bend elasticity rate   N/mm2 50000 40600 38.44
Temeprature total extension coefficient D696 X10-6N/℃ 0.24 0.24 0.24
Heat conduction rate D976 Kcal/mhr℃ 0.23 0.19 0.15
Heat transform temperature D648 200 200 200
Bonding strength C297   12 12 12
Surtace smoothness 1mm/M.Maximum deviation:1mm/M
Flame retardabt property Nonflammable,match relevant fire resistance standard
Soundproof function Be decided by layout of printed sheet installation angle,0-3dB



Feactures



It possesses advantages of:

1. Light weight

2. High strength

3. Increased anti-pollution ability

4. Easier control of uniform color

5. Easy installation

6. Workable at the area of regular stone not workable

7. Soundproof, moistureproof

8. Energy saving and consumption reduction

9. Reduce costs



Structure Combination



1) stone - aluminum honeycomb composite panels

2) stone - hard substrate composite panel

3) stone - tile composite panel

4) stone - stone composite panel

5) stone - glass composite panel known as stone translucent plate

2) by shape is divided into:

① general type plate

② arc plate

3) According to the surface:

① mirror panel

② matt panel

③ rough panel



Technical Options



Thickness of Backing Panel 8-50 mm
Panel Thickness (Standard)

20 mm for indoor; 25 mm for outdoor

(6mm stone surface + 19mm backing panel commonly used) or customized

Backing Panel Makeup

(Interior curtain wall)

Both sides 0.7mm, 0.8mm mill Aluminum panel

Stone Mable / Granite / Limestone / Sandstone / Travetine,etc.
Finish Polished / Honed / Flammed / Hammer Bush
Cell Size (Standard) A6, 0.06mm
Adhesive Aero Grade Epoxy Adhesive or PU glue
Anchoring Brackets Aluminum or Stainless Steel
Application

Interior wall, floor, ceiling, counter top;

Exterior wall, cladding, special parts etc;

Shipbuilding, Train, Aircrafts

Certification NOA for High Velocity Hurricane Zone/Warnock&Hersey
Feature Lightweight / Large Area / High Impact Strength / Fast Installation / Cost decrease/Eco-friendly/Sound and thermal insulation
Maximum Dimension (mm) 1500×3000 , or Subject to slab size





 Applications



The indoor or outdoor decoration for the house or office buildings where need lightweight and high strength;



Exterior and interior walls of airports, bus stations and railway stations where need the insulation of heat and sound and the excellent resistance of shock.



Exhibition booths, showrooms and some other temporarily used facilities’ decoration where very lightweight and easy to install properties are required.



The decoration of reception entries, walls, bathrooms and especially the backdrop areas where the luxurious stone appearance is preferred.



Cladding decoration or indoor wall, floor and ceiling of commercial buildings such as the bank office building, the government office building, Tobacco Company building and so on.
