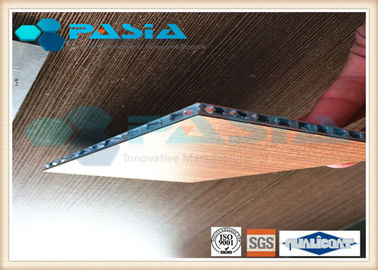

Train Partition Honeycomb Composite Panels HPL Attached 1220mm Width 2440mm Length

China Train Partition Honeycomb Composite Panels HPL Attached 1220mm Width 2440mm Length supplier
Train Partition Honeycomb Composite Panels HPL Attached 1220mm Width 2440mm Length supplier Train Partition Honeycomb Composite Panels HPL Attached 1220mm Width 2440mm Length supplier

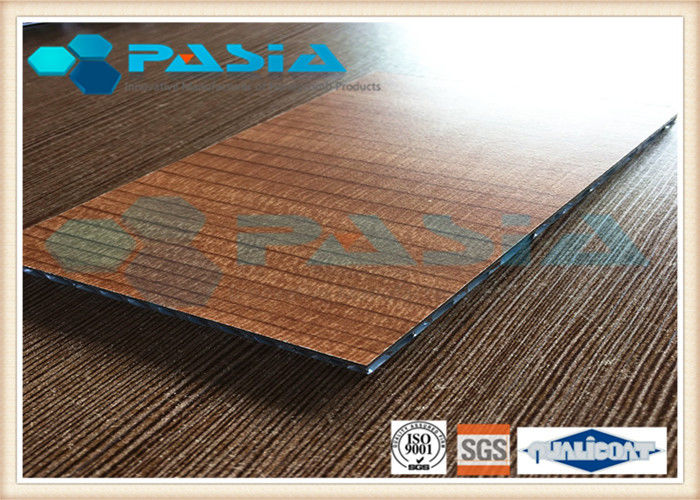

Large Image :  Train Partition Honeycomb Composite Panels HPL Attached 1220mm Width 2440mm Length

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: ISO9001-2008
Model Number: AHP- Train Partition

Payment & Shipping Terms:

Minimum Order Quantity: 100 m2
Price: Negotiable
Packaging Details: Pearl Wool and foam board protected in plywood crate. Or simplified wooden pallets.
Delivery Time: Within 4 weeks after order and down payment
Payment Terms: L/C, T/T
Supply Ability: 500,000 m2 per year
Contact Now
Detailed Product Description
Material: A3003 Or A5052 Surface: HPL Attached
Quality Guarantee Period: 15 Years Size: 1220*2440 Mm2
Application: Indoor Or Outdoor Decoration Product Name: HPL Aluminum Honeycomb Panel
High Light:

honeycomb structural panels

,

honeycomb composite board

HPL Attached Aluminium Honeycomb Panel with 1220 mm width and 2440 mm Length for Train Partition



Product Description



HPL attached aluminum honeycomb panel is a honeycomb sandwich panel with a aluminum honeycomb attached with a HPL surface veneer.



Decorative laminates are laminated products primarily used as furniture surface materials or wall paneling. It can be manufactured as either high- or low-pressure laminate, with the two processes not much different from each other except for the pressure applied in the pressing process.



According to McGraw-Hill Dictionary of Architecture & Construction, high-pressure laminates consists of laminates "molded and cured at pressures not lower than 1,000 lb per sq in. (70 kg per sq cm) and more commonly in the range of 1,200 to 2,000 lb per sq in. (84 to 140 kg per sq cm).



There are various industrial standards specifically applied for high-pressure decorative laminates:



European Standard EN438



The European Standard EN438 is one of the standards that most decorative laminates manufacturers selling to worldwide market (such as Dekodur Laminating Technologie, Stylam, Violam, Formica, Maica, Wilsonart, Greenlam) adhere to. The specific code is EN438, entitled: Decorative high-pressure laminates (HPL) sheets based on thermosetting resins, specifications. It replaces the BS3794 standard.



Aluminum honeycomb panel is a bonded sandwich structure system of two surface aluminium plates and one honeycomb cores with a special purpose adhesive. Industrial used aluminium honeycomb panel will add some more processes such as surface treatment, edging, embedding, carving and so on to make the panel suitable for special conditions. It has been widely used by the industries of civil construction, transportation, exhibition, signage, elevator, clean room etc. The honeycomb technology is from aerospace technology. The whole production process is finished in the modern factory, using hot pressing or vacuum pressing technology. Due to the high thermal conductivity between the aluminum plates and honeycomb, it is synchronized the thermal expansion and contraction of the inside and outside aluminium material. There are small holes on the honeycomb core foil wall so that the air is free of flowing inside the panel box. Furthermore, sliding mounting buckle system does not cause structural deformation during thermal expansion and contraction.



Features



The center material is aluminum hexagonal honeycomb with a small density (about 3 to 7 kg per square meter), about 1/5 of the weight of wood with the same area and thickness, 1/6 of the glass, 1/7 of solid aluminium, which greatly reduced the building load and construction cost. Thanks to the air contained in the core, the panel can be sound and thermal insulated. Because of no combustible material contained, the fire rating can be at least B1 level. The panel performs well also on waterproof, moisture-proof, no harmful gas release, with a high unit mass of the specific strength and stiffness, not easy to deformation, completely overcoming the collapse and deformation in the center area if with large panel. The panel edge can be cut depending on real conditions. The PVDF coating can guarantee the product life more than 30 years.



After surface treated with corrosion resistant fluorocarbon resin, it can be widely used on curtain wall, roof, large façade, signs and interior decoration. The front plate of the aluminum honeycomb panel is painted with E. C. C. A. quality standards PVDF fluorocarbon paint with ordinary color or metallic color, so the surface has excellent weather resistance.



In case of heavy rain, there is particularly large noise when the raindrops hit the aluminum veneer or aluminum-plastic panel, while honeycomb panel can avoid this situation. Aluminum honeycomb panels are generally made of fluorocarbon coated aluminum plates. The continuous roller coating with PVDF material is the most important point to avoid color difference and flat coating film. Based on this, it can keep the exterior building with bright color for long time.



Mechanical Properties



  ASTM Unit 10mm 15mm 20mm
Unit theory weight   kg/m2 5.4 5.6 5.75
Tensile strength E8 N/mm2 806 598 455
Endurance capacity E8 N/mm2 531 405 279
Elongation E8 % 1.2 1.4 1.7
Bending rigidity C393 X106N.mm2 8.03 15.4 38.44
Bend elasticity rate   N/mm2 50000 40600 38.44
Temeprature total extension coefficient D696 X10-6N/℃ 0.24 0.24 0.24
Heat conduction rate D976 Kcal/mhr℃ 0.23 0.19 0.15
Heat transform temperature D648 200 200 200
Bonding strength C297   12 12 12
Surtace smoothness 1mm/M.Maximum deviation:1mm/M
Flame retardabt property Nonflammable,match relevant fire resistance standard
Soundproof function Be decided by layout of printed sheet installation angle,0-3dB



Application:



No Application
1 building external curtain wall panel
2 interior decoration works
3 billboards
4 ship building
5 aviation manufacturing industry
6 indoor partition and commodity display stand
7 Commercial vehicle and container truck body
8 bus, train and subway use
9 With strict environmental requirements of the modern furniture industry, aluminum honeycomb panel is an ideal material to produce furniture. Depending on Its completely non-toxic green quality, it is not necessary for the furniture manufacturers to process environmental procedures. In addition, the surface veneer for aluminum honeycomb panels can be diversified such as solid wood, aluminum, gypsum board, natural marble etc
10 aluminum honeycomb panel partition: the emergence of aluminum honeycomb panel partition breaks the traditional partition mode, with a noble and fresh style
