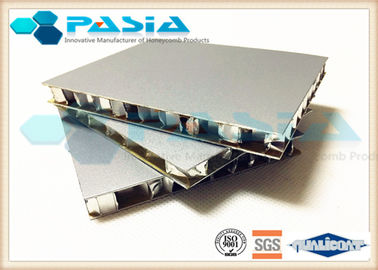

Waterproof Fiberglass Honeycomb Panel , Aluminum Honeycomb Sheet Light Weight

China Waterproof Fiberglass Honeycomb Panel , Aluminum Honeycomb Sheet Light Weight supplier
Waterproof Fiberglass Honeycomb Panel , Aluminum Honeycomb Sheet Light Weight supplier Waterproof Fiberglass Honeycomb Panel , Aluminum Honeycomb Sheet Light Weight supplier

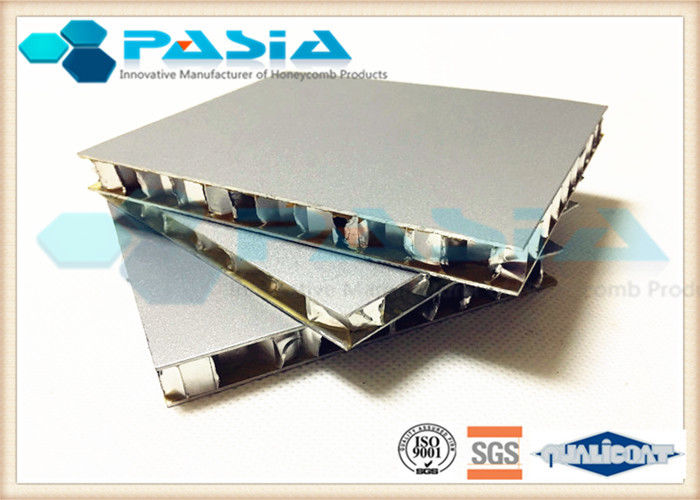

Large Image :  Waterproof Fiberglass Honeycomb Panel , Aluminum Honeycomb Sheet Light Weight

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: ISO9001-2008
Model Number: AHP- PVDF Powder Coating

Payment & Shipping Terms:

Minimum Order Quantity: 100 m2
Price: Negotiable
Packaging Details: Pearl Wool and foam board protected in plywood crate. Or simplified wooden pallets.
Delivery Time: Within 4 weeks after order and down payment
Payment Terms: L/C, T/T
Supply Ability: 500,000 m2 per year
Detailed Product Description
Material: A3003 Or A5052 Surface: PVDF Powder Coated
Quality Guarantee Period: 15 Years Size: Customized
Application: Countertop Thickness: 12mm, 25mm
High Light:

honeycomb core board


honeycomb composite board

PVDF Powder Coated Aluminium Honeycomb Panel with Wood Frame for Countertop


Product Description


PVDF Powder Coated Aluminium Honeycomb Panel with Wood Frame for Countertop is an aluminum honeycomb panel with surface powder coated with PVDF material and the edge sealed with wood frame which are generally helpful for installing the countertop.


There are three points


1. PVDF coatings are perfect for processing chemicals because they do not react with the majority of solvents and chemicals. In addition, they offer excellent resistance to abrasions and wear, high dielectric strength, are resistant to weathering, and can extinguish themselves in the case of a fire. They also do not produce much smoke if there is a fire. Other properties of PVDF include good color retention and gloss and strong piezoelectricity.


2. In addition to the chemical industry, there are also other common applications for PVDF coatings. These include the defense industry, medical industry, and semiconductor industry. In addition, PVDF coatings are often used in the manufacture of lithium ion batteries. In this industry, the material is used as a binder material when producing composite electrodes. PVDF is also a great conductive additive.


3. The countertop with whatever shape, length, width or thickness, they can be jointed or carved into required finishing product then using putting to sealing the gaps on the panels. After that, the panel will be completely powder coated as an integrated panel for installing in once.

General Description


Aluminum honeycomb panel is a bonded sandwich structure system of two surface aluminium plates and one honeycomb cores with a special purpose adhesive. Industrial used aluminium honeycomb panel will add some more processes such as surface treatment, edging, embedding, carving and so on to make the panel suitable for special conditions. It has been widely used by the industries of civil construction, transportation, exhibition, signage, elevator, clean room etc. The honeycomb technology is from aerospace technology. The whole production process is finished in the modern factory, using hot pressing or vacuum pressing technology. Due to the high thermal conductivity between the aluminum plates and honeycomb, it is synchronized the thermal expansion and contraction of the inside and outside aluminium material. There are small holes on the honeycomb core foil wall so that the air is free of flowing inside the panel box. Furthermore, sliding mounting buckle system does not cause structural deformation during thermal expansion and contraction.




The center material is aluminum hexagonal honeycomb with a small density (about 3 to 7 kg per square meter), about 1/5 of the weight of wood with the same area and thickness, 1/6 of the glass, 1/7 of solid aluminium, which greatly reduced the building load and construction cost. Thanks to the air contained in the core, the panel can be sound and thermal insulated. Because of no combustible material contained, the fire rating can be at least B1 level. The panel performs well also on waterproof, moisture-proof, no harmful gas release, with a high unit mass of the specific strength and stiffness, not easy to deformation, completely overcoming the collapse and deformation in the center area if with large panel. The panel edge can be cut depending on real conditions. The PVDF coating can guarantee the product life more than 30 years.


After surface treated with corrosion resistant fluorocarbon resin, it can be widely used on curtain wall, roof, large façade, signs and interior decoration. The front plate of the aluminum honeycomb panel is painted with E. C. C. A. quality standards PVDF fluorocarbon paint with ordinary color or metallic color, so the surface has excellent weather resistance.

In case of heavy rain, there is particularly large noise when the raindrops hit the aluminum veneer or aluminum-plastic panel, while honeycomb panel can avoid this situation. Aluminum honeycomb panels are generally made of fluorocarbon coated aluminum plates. The continuous roller coating with PVDF material is the most important point to avoid color difference and flat coating film. Based on this, it can keep the exterior building with bright color for long time.


Mechanical Properties


  ASTM Unit 10mm 15mm 20mm
Unit theory weight   kg/m2 5.4 5.6 5.75
Tensile strength E8 N/mm2 806 598 455
Endurance capacity E8 N/mm2 531 405 279
Elongation E8 % 1.2 1.4 1.7
Bending rigidity C393 X106N.mm2 8.03 15.4 38.44
Bend elasticity rate   N/mm2 50000 40600 38.44
Temeprature total extension coefficient D696 X10-6N/℃ 0.24 0.24 0.24
Heat conduction rate D976 Kcal/mhr℃ 0.23 0.19 0.15
Heat transform temperature D648 200 200 200
Bonding strength C297   12 12 12
Surtace smoothness 1mm/M.Maximum deviation:1mm/M
Flame retardabt property Nonflammable,match relevant fire resistance standard
Soundproof function Be decided by layout of printed sheet installation angle,0-3dB



  • Kitchen or Washroom Coutertop
  • Cabinet countertop
