Stone Veneer Elevator Wall Panels , Honeycomb Composite Panels AHP Substrate

China Stone Veneer Elevator Wall Panels , Honeycomb Composite Panels AHP Substrate supplier
Stone Veneer Elevator Wall Panels , Honeycomb Composite Panels AHP Substrate supplier Stone Veneer Elevator Wall Panels , Honeycomb Composite Panels AHP Substrate supplier

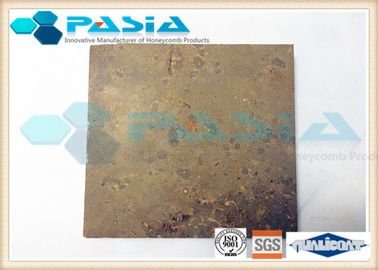

Large Image :  Stone Veneer Elevator Wall Panels , Honeycomb Composite Panels AHP Substrate

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: ISO9001-2008
Model Number: SHP-20mm-Wall

Payment & Shipping Terms:

Minimum Order Quantity: 100 m2
Price: Negotiable
Packaging Details: by Plywood Crate
Delivery Time: depending on specification
Supply Ability: depending on specification
Detailed Product Description
Substrate: AHP Thickness: 20 Mm
Base Material: Marble, Limestone And Onyx Size: 1200*1200, 900*900, 600*600, 300*300
Product Name: Stone Honeycomb Wall Panel For Elevator Application: Elevator Wall
High Light:

lightweight wall panels


honeycomb partition panels

Decoration Use Stone Veneer Honeycomb Composite Panel for the Elevator's Wall


Product Description


Decoration Use Stone Veneer Honeycomb Composite Panel for the Elevator's Wall is special aluminum honeycomb panel with a natural stone veneer based on the luxurious decoration purpose to be used on elevator.


General Description


1. Limestone marble or onyx stone aluminum honeycomb panels are only allowed decoration material for elevators’floors and if natural stone appearance is required by the owner or the designer. The advantage of the stone honeycomb panel is obvious, and they are lightweight, very flexural, durable, easy to clean and can be used on any elevator cabin if not considering the elegant look.


2. Without using sophisticated tools and any mechanically damage to the elevators, the stone honeycomb backed panels can be easily installed on the elevators’ cabin. If using the stone honeycomb panel eg. 3 mm thick marble veneer with total thickness of 20 mm, the mechanical re-adjustment is no longer necessary after the installation before having the elevator remodeled as the area weight of the marble stone honeycomb panel is only about 5 kg/m2 which is considered to be ignored for the elevator.


3. Integrating the aluminum honeycomb panel original from the aerospace technology with natural artistic appearance stone like granite, marble, onyx, sandstone, basalt and limestone, the stone honeycomb panel have been widely used at masses of fields where require careful considerations on the weight, strength, cost and installation time control as well as limitations. Marble, granite stone, travertine, limestone honeycomb panels have been used extensively in indoor and outdoor decoration, classical old building renovation, elevator ceiling, wall and floor, inner decoration for the shipbuilding and high speed train as well as other applications.


4. Pasia stone Honeycomb Panel is grossly with an area weight of about 16 kg/ m2, which is approximately 1/5 of the solid stone. Thus, the labor, time, installation supporting facilities can be greatly saved especially considering the increased labor cost. By adding the honeycomb panel backing with high rigidity, Pasia Stone Honeycomb Panels shows excellent impact resistance and flexural strength and other mechanical performance. According to the testing result, the shock resistance performance value can be up to 60 times more than their solid stone veneer with 3 cm thickness.




One. Light weight

Two. High strength

Three. Increased anti-pollution ability

Four. Easier control of uniform color

Five. Easy installation

Six. Workable at the area of regular stone not workable

Seven. Soundproof, moistureproof

Eight. Energy saving and consumption reduction

Nine. Reduce costs


1 by base classification:

1) stone - aluminum honeycomb composite panels

2) stone - hard substrate composite panel

3) stone - tile composite panel

4) stone - stone composite panel

5) stone - glass composite panel known as stone translucent plate


2 by shape is divided into:

① general type plate

② arc plate


3 According to the surface:

① mirror panel

② matt panel

③ rough panel




No. Properties Detailed Description
1 Light weight The marble veneer for the marble composite panel with aluminium plastic panel can be only 3 ~ 5mm thick. Commonly used composite panel with tiles or granite is only with a thickness of about 12mm. It saves much cost at least on the transportation. Accordingly, it is the best choice for the use on the building with a load limit.
2 high strength Marble sandwiched with the tiles, granite, aluminum honeycomb panels and other composite, the bending and fracture resistance, shear strength were significantly improved, which greatly reduce the breaking rate during transportation, installation and use.
3 Improved anti-pollution ability Regular original marble plate will change color or with dirty pollution on the surface if using the cement wet pasting. While for the composite panel, as the dense and hard substrate and the glue film, the above mentioned situation will not happen.
4 Easier to control color difference The marble veneer used on the marble composite panels is three or four times more than the original plate. Therefore, the color and pattern can be 3 or 4 times more the same as the original marble plate.
5 Easy installation Depending on the above characteristics, the efficiency and safety and costs of the installation process are greatly improved.
6 Break the restricted area The original marble plate can be used on the inside and outside wall, ground, windowsill, porch, desktop, etc. But for the ceiling, no decoration company will take risk to use no matter it is marble or granite. The aluminum-plastic backed marble panels or aluminum honeycomb backed marble panel can break through the restricted area of stone honeycomb panel. Because it is very light that the weight of the whole body is only 1/5 to 1/10 of the original plate so that it is capable of being used on the ceiling.
7 Sound insulation and moisture-proof An aluminum honeycomb backed stone panel transcends the properties of the original stone panel on the sound insulation, moisture and heat insulation and cold insulation performance because of the honeycomb structure.
8 Energy saving Further to the above mentioned, Stone aluminum honeycomb panel, after installation in the indoor and outdoor, can greatly reduce the consumption of electricity and heat.
9 Cut costs Due to thin and light stone composite material, it can save costs on transportation and installation. Furthermore, the finished composite stone panel will be more cost-efficient than their original plate.




Wall panel of the elevator
