Mill Finished Aluminium Honeycomb Wall Panels For Furniture Decoration Antirust

China Mill Finished Aluminium Honeycomb Wall Panels For Furniture Decoration Antirust supplier
Mill Finished Aluminium Honeycomb Wall Panels For Furniture Decoration Antirust supplier Mill Finished Aluminium Honeycomb Wall Panels For Furniture Decoration Antirust supplier

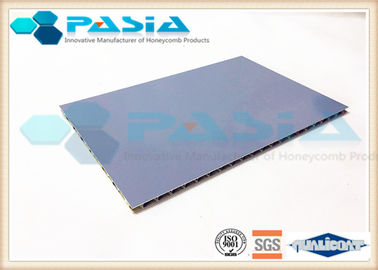

Large Image :  Mill Finished Aluminium Honeycomb Wall Panels For Furniture Decoration Antirust

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: ISO9001-2008
Model Number: AHP-Milled

Payment & Shipping Terms:

Minimum Order Quantity: 100 m2
Price: Negotiable
Packaging Details: Pearl Wool and foam board protected in plywood crate. Or simplified wooden pallets.
Delivery Time: Within 4 weeks after order and down payment
Payment Terms: L/C, T/T
Supply Ability: 500,000 m2 per year
Contact Now
Detailed Product Description
Material: A3003 Or A5052 Surface: Mill Finish
Quality Guarantee Period: 10 Years Size: More Than 6 Meters' Long And 1.5 Meters' Wide
Application: Wall Panel For Further Decoration Product Name: Mill Finished Aluminum Honeycomb Wall Panel
High Light:

lightweight wall panels

,

marine honeycomb panels

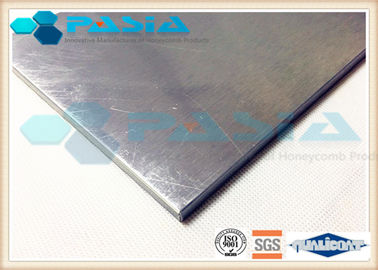

Mill Finished Aluminium Honeycomb Wall Panel with Edge Folded for Bonding with Other Surface Material



Product Description



Mill Finished Aluminium Honeycomb Wall Panel with Edge Folded for Bonding with Other Surface Material is an aluminum honeycomb panel with a mill finished surface plates for the wall panel use and the milled finish is able to provide and further process to the wall surface.



1. The mill finished aluminum honeycomb panel can be used for further bonding with HPL (high pressure laminate), porcelain, stone veneer, wood skin, bamboo skin and so on. The milled aluminum skin can be grinded to be rough to make the bonding strength between the aluminum honeycomb panel and the bonded skins better. The honeycomb panel can be cut with edge exposure or can be folded to make the edge closure.



Aluminum Alloy Specification A2202, A3003, A5052, etc
Regular Size (Width * Length) 1220x2440mm, or customized
Maximum Size (Width * Length) 2300x12000mm or customized
Regular Thickness 5, 10, 12, 15, 20, 25, 30 mm or customized
Available Thickness 4mm-300 mm
Surface Treatment Mill finish, brushed finish, coated with HPL, bamboo or wood, PE/PVDF roller coated, PE/PVDF Powder Coating, Anodized, chameleon, etc.
Color Any RAL color
Perforation Yes (customized)
Applications Wall cladding (exterior & interior), ceiling, roofing, flooring, clean room, partitions, furniture, ship hull, vehicles, countertop etc.



2. Milled finish means the aluminium surface should not do any treatment but just leave it as it comes out from the plant. Milled finish has the following advantages: 1. save the material and process cost; 2. can support further process; 3. suitable for many specific application field.



3. For the edge open solution, as the aluminium honeycomb panel will be used in the downstream production process for change the size such as cutting and carving, the edge treatment before use is a waster. It is not necessary to make the edge closed so that the cost and time can saved. Also, for the installation method, there will be supporting frames applied to the aluminium honeycomb panel and after installation, the edge will be covered by the installation frame, it is not necessary to make the edge sealed.


General Description



Aluminum honeycomb panel is a bonded sandwich structure system of two surface aluminium plates and one honeycomb cores with a special purpose adhesive. Industrial used aluminium honeycomb panel will add some more processes such as surface treatment, edging, embedding, carving and so on to make the panel suitable for special conditions. It has been widely used by the industries of civil construction, transportation, exhibition, signage, elevator, clean room etc. The honeycomb technology is from aerospace technology. The whole production process is finished in the modern factory, using hot pressing or vacuum pressing technology. Due to the high thermal conductivity between the aluminum plates and honeycomb, it is synchronized the thermal expansion and contraction of the inside and outside aluminium material. There are small holes on the honeycomb core foil wall so that the air is free of flowing inside the panel box. Furthermore, sliding mounting buckle system does not cause structural deformation during thermal expansion and contraction.



Features



The center material is aluminum hexagonal honeycomb with a small density (about 3 to 7 kg per square meter), about 1/5 of the weight of wood with the same area and thickness, 1/6 of the glass, 1/7 of solid aluminium, which greatly reduced the building load and construction cost. Thanks to the air contained in the core, the panel can be sound and thermal insulated. Because of no combustible material contained, the fire rating can be at least B1 level. The panel performs well also on waterproof, moisture-proof, no harmful gas release, with a high unit mass of the specific strength and stiffness, not easy to deformation, completely overcoming the collapse and deformation in the center area if with large panel. The panel edge can be cut depending on real conditions. The PVDF coating can guarantee the product life more than 30 years.



After surface treated with corrosion resistant fluorocarbon resin, it can be widely used on curtain wall, roof, large façade, signs and interior decoration. The front plate of the aluminum honeycomb panel is painted with E. C. C. A. quality standards PVDF fluorocarbon paint with ordinary color or metallic color, so the surface has excellent weather resistance.

In case of heavy rain, there is particularly large noise when the raindrops hit the aluminum veneer or aluminum-plastic panel, while honeycomb panel can avoid this situation. Aluminum honeycomb panels are generally made of fluorocarbon coated aluminum plates. The continuous roller coating with PVDF material is the most important point to avoid color difference and flat coating film. Based on this, it can keep the exterior building with bright color for long time.



Mechanical Properties



  ASTM Unit 10mm 15mm 20mm
Unit theory weight   kg/m2 5.4 5.6 5.75
Tensile strength E8 N/mm2 806 598 455
Endurance capacity E8 N/mm2 531 405 279
Elongation E8 % 1.2 1.4 1.7
Bending rigidity C393 X106N.mm2 8.03 15.4 38.44
Bend elasticity rate   N/mm2 50000 40600 38.44
Temeprature total extension coefficient D696 X10-6N/℃ 0.24 0.24 0.24
Heat conduction rate D976 Kcal/mhr℃ 0.23 0.19 0.15
Heat transform temperature D648 200 200 200
Bonding strength C297   12 12 12
Surtace smoothness 1mm/M.Maximum deviation:1mm/M
Flame retardabt property Nonflammable,match relevant fire resistance standard
Soundproof function Be decided by layout of printed sheet installation angle,0-3dB



Application:



Building external curtain wall panel



Interior decoration works
