Flame Resistant Honeycomb Building Material For Lightweight Honeycomb Panels

China Flame Resistant Honeycomb Building Material For Lightweight Honeycomb Panels supplier
Flame Resistant Honeycomb Building Material For Lightweight Honeycomb Panels supplier Flame Resistant Honeycomb Building Material For Lightweight Honeycomb Panels supplier

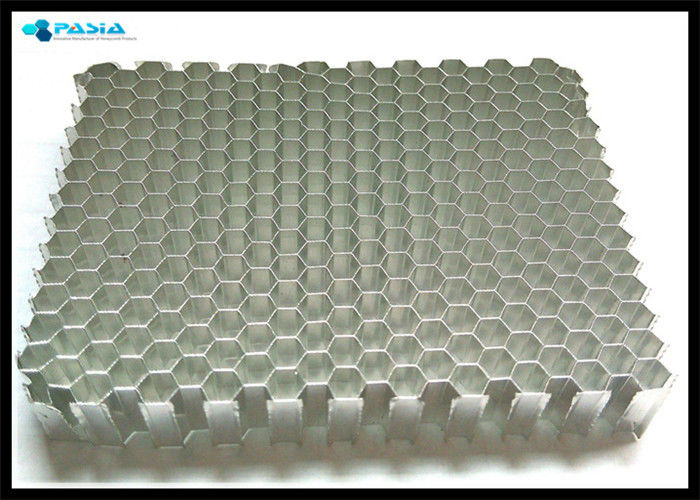

Large Image :  Flame Resistant Honeycomb Building Material For Lightweight Honeycomb Panels

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: ISO9001-2008
Model Number: AHCxx-xx-xx

Payment & Shipping Terms:

Minimum Order Quantity: 100 m2
Price: Negotiable
Packaging Details: by pallets or plywood crate
Delivery Time: within one month for a 20' container
Supply Ability: as per specification
Detailed Product Description
Material: 5052 Foil Thinkness: 0.05, 0.06 Or 0.076 Mm
Cell Size: 2, 3, 5, 8 Mm Hardness: H18
Height: Customized Product Name: 5052 Aluminium Honeycomb Core
Highlight:

honeycomb structure

,

honeycomb material

High Strength and Corrosion Resistance Aluminium Honeycomb Core For Aerospace Industry

High Strength and Corrosion Resistance Aluminium Honeycomb Core For Aerospace Industry is a lightweight core material which offers superior strength and corrosion resistance against the 3003 commercial grade aluminum honeycomb core. 5052 honeycomb core is made from 5052 aluminum alloy foil and meets all the requirements of aerospace use standard.


Features:


• Higher use temperatures
• Higher thermal conductivity
• Flame resistant
• Excellent moisture and corrosion resistance
• Fungi resistant
• Low weight/High Strength


General Instruction:

Aluminum honeycomb core is made of aluminum foil which is bonded by special high strength and environment-friendly glue. The performance of the aluminum honeycomb core is determined by aluminum foil, joint glue and the specification of the core.

1. Aluminum foil

3003H24/5052H18 grade aluminum alloy foil with the surface special treated has been used for producing the core.

2. Glue

Modified epoxy glue for high temperature cure process can provide not only sufficient bonding strength, but also environmental protection and high or low temperature resistance properties. The joint strength of aluminum honeycomb core is the keypoint of evaluating its performance, whose minimum requirement should be more than 2.0N/mm.

Specification of aluminum honeycomb core:

Item Unit Specification
Cell inch   1/8”     3/16”   1/4”
  mm 2.6 3.18 3.46 4.33 4.76 5.2 6.35 6.9 8.66

Side
Length

mm 1.5 1.83 2 2.5 2.75 3 3.7 4 5
Foil Thickness mm

0.03-
0.05

0.03-
0.05

0.03- 0.05

0.03-
0.06

0.03-
0.06

0.03- 0.08 0.03- 0.08 0.03- 0.08

0.03-
0.08


Width mm ≤440 ≤440 ≤440 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤1500 ≤1500 ≤2000 ≤3000 ≤3000 ≤3200 ≤4000 ≤4000 ≤5500
Height mm 1.7~150 1.7~150 1.7~150 3~150 3~150 3~150 3~150 3~150 3~150

Item Unit Specification
Cell inch 3/8”   1/2”     3/4”   1”
  mm 9.53 10.39 12.7 13.86 17.32 19.05 20.78 25.4
Side Length mm 5.5 6 7.33 8 10 11 12 15
Foil Thickness mm

0.03-
0.08

0.03-
0.08

0.03- 0.08

0.03-
0.08

0.03-
0.08

0.03- 0.08 0.03- 0.08 0.03- 0.08
Width mm ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤5700 ≤6000 ≤7500 ≤8000 ≤10000 ≤11000 ≤12000 ≤15000
Height mm 3~150 3~150 3~150 3~150 3~150 3~150 3~150 3~150



Specifications can be customized.


Supply modes:

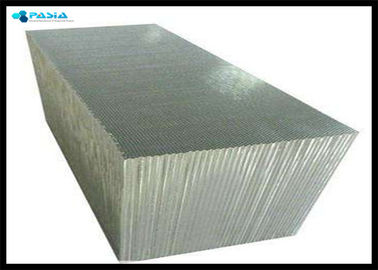

- Unexpanded block
- Unexpanded slice
- Expanded sheet
- Pieces cut to size



Applications:



5052 aluminum honeycomb uses include aircraft floors, aircraft leading and trailing edges, missile wings, fan casings, fuel cells, fuselage components, helicopter rotor blades and navy bulkhead joiner panels, energy absorption, air/light directionalization and EMI/RFI shielding. 5052 honeycomb is suitable for applications where materials conforming to AMS C7438 Rev A are required.
