Product Details:
Payment & Shipping Terms:
|
| Substrate: | Aluminum Honeycomb Panel | Thickness: | 30 Mm |
|---|---|---|---|
| Base Material: | Polished Granite Stone | Size: | 1220*2440 |
| Property: | Light Weight | Product: | Polished Granite Stone Composite Panel |
| High Light: | composite stone cladding,composite stone tiles |
||
Polished Granite Stone Composite Panel for the Outdoor Cladding of Office Building
Product Description

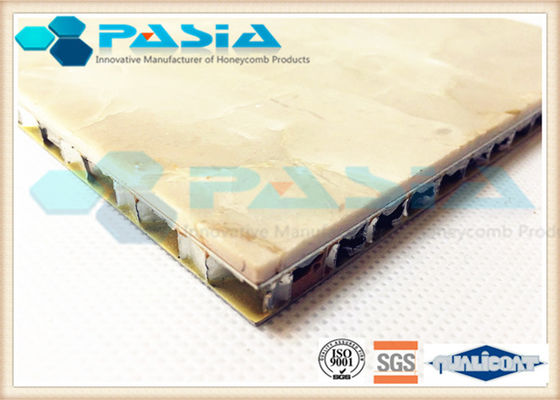

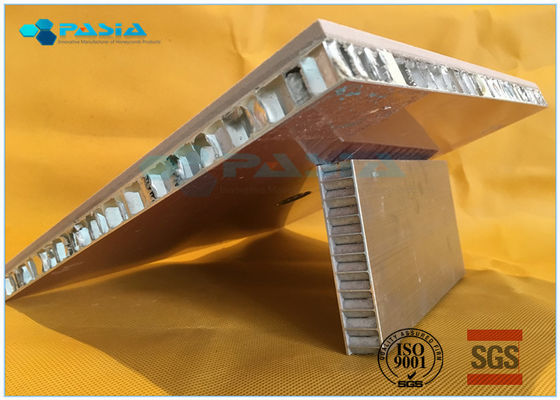

Polished Granite Stone Composite Panel for the Outdoor Cladding of Office Building is an ultra thin polished granite stone venner panel backed with an aluminum honeycomb panel for the purpose of sound and thermal insulation. The polished surface performs better on dust cleaning function. The stone composite panel saves lots of stone raw material resouces as the thickness of the natural stone is only 3-5 mm in thickness while the aluminum honeycomb panel is a spaced core structure so that it is very light and can saves lots of materials too. The whole panel is very light compared to the regular 3 cm thickness stone panel.
Examples
Ultra-thin stone composite panels is comprised with two or more different plates bonded with glue. The surface and substrate materials are natural stone and tiles, stone, glass or aluminum honeycomb and so on respectively.
Stone Description
Marble is a non-foliated metamorphic rock composed of recrystallized carbonate minerals, most commonly calcite or dolomite. Geologists use the term "marble" to refer to metamorphosed limestone; however, stonemasons use the term more broadly to encompass unmetamorphosed limestone. Marble is commonly used for sculpture and as a building material.
Advantages:
One. Light weight
Two. High strength
Three. Increased anti-pollution ability
Four. Easier control of uniform color
Five. Easy installation
Six. Workable at the area of regular stone not workable
Seven. Soundproof, moistureproof
Eight. Energy saving and consumption reduction
Nine. Reduce costs
1 by base classification:
1) stone - aluminum honeycomb composite panels
2) stone - hard substrate composite panel
3) stone - tile composite panel
4) stone - stone composite panel
5) stone - glass composite panel known as stone translucent plate
2 by shape is divided into:
① general type plate
② arc plate
3 According to the surface:
① mirror panel
② matt panel
③ rough panel
Properties
| No. | Properties | Detailed Description |
| 1 | Light weight | The marble veneer for the marble composite panel with aluminium plastic panel can be only 3 ~ 5mm thick. Commonly used composite panel with tiles or granite is only with a thickness of about 12mm. It saves much cost at least on the transportation. Accordingly, it is the best choice for the use on the building with a load limit. |
| 2 | high strength | Marble sandwiched with the tiles, granite, aluminum honeycomb panels and other composite, the bending and fracture resistance, shear strength were significantly improved, which greatly reduce the breaking rate during transportation, installation and use. |
| 3 | Improved anti-pollution ability | Regular original marble plate will change color or with dirty pollution on the surface if using the cement wet pasting. While for the composite panel, as the dense and hard substrate and the glue film, the above mentioned situation will not happen. |
| 4 | Easier to control color difference | The marble veneer used on the marble composite panels is three or four times more than the original plate. Therefore, the color and pattern can be 3 or 4 times more the same as the original marble plate. |
| 5 | Easy installation | Depending on the above characteristics, the efficiency and safety and costs of the installation process are greatly improved. |
| 6 | Break the restricted area | The original marble plate can be used on the inside and outside wall, ground, windowsill, porch, desktop, etc. But for the ceiling, no decoration company will take risk to use no matter it is marble or granite. The aluminum-plastic backed marble panels or aluminum honeycomb backed marble panel can break through the restricted area of stone honeycomb panel. Because it is very light that the weight of the whole body is only 1/5 to 1/10 of the original plate so that it is capable of being used on the ceiling. |
| 7 | Sound insulation and moisture-proof | An aluminum honeycomb backed stone panel transcends the properties of the original stone panel on the sound insulation, moisture and heat insulation and cold insulation performance because of the honeycomb structure. |
| 8 | Energy saving | Further to the above mentioned, Stone aluminum honeycomb panel, after installation in the indoor and outdoor, can greatly reduce the consumption of electricity and heat. |
| 9 | Cut costs | Due to thin and light stone composite material, it can save costs on transportation and installation. Furthermore, the finished composite stone panel will be more cost-efficient than their original plate. |
