|Stone Type:||Basalt||Size In Mm*mm:||1200*1200 MM|
|Surface Treated:||As Requirement||Application:||Inoor Decoration|
|Product Name:||1200*1200 Sized With Customized Thickness Basalt Stone Honeycomb Panel||Thickness:||20 Mm - 25 Mm|
honeycomb marble panels,
stone aluminum honeycomb panel
1200*1200 Sized With Customized Thickness Basalt Stone Honeycomb Panel
PASIA provides Basalt Stone Aluminium Honeycomb Panels which is one of the best enviromental composite material with excellent sound, perfect strength, heat insulation and super flatness, but with light weight and easy processing.

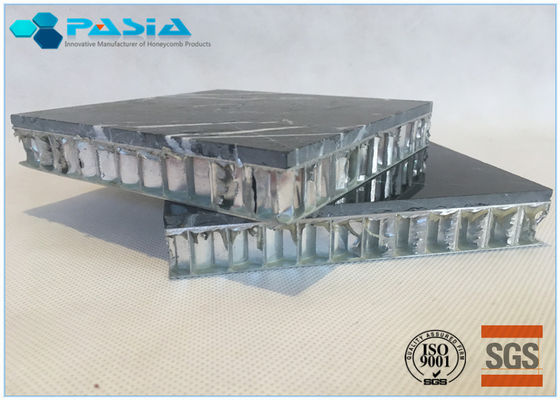

Basalt Stone honeycomb panel is a structure sandwiched with aluminium honeycomb panel and very thin basalt stone veneer.
Basalt stone shows better price and performance against any other stones if putting the surface appcolor earance aside as it is a widely distributed stone mine all over the world. Normally, the four edge sides are exposed during manufacturing to save the production time and material cost.
The ultra-thin stone honeycomb composite panels are innovated because of the limited natural stone resources and its application restrict. It is a new type of building materials with a better impact resistance than the ordinary natural stone is with a weight of only 16 kg, is only 1/6 of the weight of its original natural stone slide but the compressive strength is 6 times more than the original stone slices. Completely overcomed the natural stone’s defects on weight, fragile and other aspects, it provides a more superior performance and wide application field as a new generation building material. Ultra-thin stone honeycomb composite panel is simply bonded with an about 3mm ~ 5mm thick stone sheet and an aluminum honeycomb substrate with a special purpose adhesive. It not only saves the stone material and reduces the weight of finished products, but reflects better in the stone effect. Based on these, there is a large demand from the market.
|1||stone - aluminum honeycomb composite panel|
|2||stone - hard substrate composite panel|
|3||stone - tile composite panel|
|4||stone - stone composite panel|
|5||stone - glass composite panel known as stone translucent plate|
|1||general type plate|
It possesses advantages of:
1). Light weight
2). High strength
3). Increased anti-pollution ability
4). Easier control of uniform color
5). Easy installation
6). Workable at the area of regular stone not workable
7). Soundproof, moistureproof
8). Energy saving and consumption reduction
9). Reduce costs
|Thickness of Backing Panel||8-50 mm|
|Panel Thickness (Standard)||
20 mm for indoor; 25 mm for outdoor
(6mm stone surface + 19mm backing panel commonly used) or customized
Backing Panel Makeup
(Interior curtain wall)
|Both sides 0.7mm, 0.8mm mill Aluminum panel
|Stone||Mable / Granite / Limestone / Sandstone / Travetine,etc.|
|Finish||Polished / Honed / Flammed / Hammer Bush|
|Cell Size (Standard)||A6, 0.06mm|
|Adhesive||Aero Grade Epoxy Adhesive or PU glue|
|Anchoring Brackets||Aluminum or Stainless Steel|
Interior wall, floor, ceiling, counter top;
Exterior wall, cladding, special parts etc;
Shipbuilding, Train, Aircrafts
|Certification||NOA for High Velocity Hurricane Zone/Warnock&Hersey|
|Feature||Lightweight / Large Area / High Impact Strength / Fast Installation / Cost decrease/Eco-friendly/Sound and thermal insulation|
|Maximum Dimension (mm)||1500×3000 , or Subject to slab size|
Its advantages includes light weight, limited radiation pollution, stone material saving, broader size and so on. The mainly application fields is indoor wall panel, floors etc, which are being more and more widely used on the decoration and renovation of the industries of construction, vehicles, ships, etc.
The panels can be manufactured based on your specifications for a various applications, such as ceiling, floor, partition, ship hull, door and metro & bus system, etc.
