13mm Cell Size Aluminum Honeycomb Core Good Thermal Conduction Performances

China 13mm Cell Size Aluminum Honeycomb Core Good Thermal Conduction Performances supplier
13mm Cell Size Aluminum Honeycomb Core Good Thermal Conduction Performances supplier 13mm Cell Size Aluminum Honeycomb Core Good Thermal Conduction Performances supplier

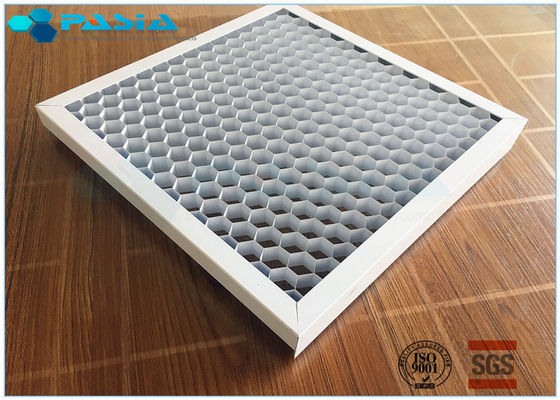

Large Image :  13mm Cell Size Aluminum Honeycomb Core Good Thermal Conduction Performances

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: ISO9001-2008
Model Number: AHC-S-P782

Payment & Shipping Terms:

Minimum Order Quantity: 10-100m2
Price: Negotiable
Packaging Details: Export Ply-wood Box
Delivery Time: within one month for a 20' container
Supply Ability: 1000000 per year
Detailed Product Description
Material: Customized Foil Thinkness: 0.07mm
Cell Size: 13mm Hardness: H18
Height: 14mm Product Name: Good Thermal Conduction Performances Of Aluminum Honeycomb Core
High Light:

honeycomb structure

,

honeycomb material



Good Thermal Conduction Performances of Aluminum Honeycomb Core



General Instruction:



Since the aluminum honeycomb core material is aluminum structure and has good electrical conductivity, it can effectively eliminate static electricity generated during transportation of trains and the like, and reduce safety hazards. The foam interlayer is prone to static electricity when it is rubbed by vibration, and static electricity build-up occurs when these static electricity cannot be effectively removed. This increases the insecurity of these vehicles. At the same time, the aluminum honeycomb core has good thermal conductivity, can effectively and locally transmit the local high temperature, and ensure the stability of the honeycomb sandwich structure. Aluminum honeycomb is a kind of non-combustible material, which is used in places with dense crowds, such as train cars and gymnasiums, which increases the safety of facilities and environment. These properties are not available in foam sandwich structures.



Specification of aluminum honeycomb core:

ItemUnitSpecification
Cellinch 1/8”  3/16” 1/4”
 mm2.63.183.464.334.765.26.356.98.66
Side
Length
mm1.51.8322.52.7533.745
Foil Thicknessmm0.03-
0.05
0.03-
0.05
0.03- 0.050.03-
0.06
0.03-
0.06
0.03- 0.080.03- 0.080.03- 0.080.03-
0.08

Widthmm≤440≤440≤440≤1800≤1800≤1800≤1800≤1800≤1800
Lengthmm≤1500≤1500≤2000≤3000≤3000≤3200≤4000≤4000≤5500
Heightmm1.7~1501.7~1501.7~1503~1503~1503~1503~1503~1503~150

ItemUnitSpecification
Cellinch3/8” 1/2”  3/4” 1”
 mm9.5310.3912.713.8617.3219.0520.7825.4
Side Lengthmm5.567.33810111215
Foil Thicknessmm0.03-
0.08
0.03-
0.08
0.03- 0.080.03-
0.08
0.03-
0.08
0.03- 0.080.03- 0.080.03- 0.08
Widthmm≤1800≤1800≤1800≤1800≤1800≤1800≤1800≤1800
Lengthmm≤5700≤6000≤7500≤8000≤10000≤11000≤12000≤15000
Heightmm3~1503~1503~1503~1503~1503~1503~1503~150


Specifications can be customized.


Features:
Aluminum honeycomb material features:
1. Aluminum honeycomb core can be recycled and used as a green product;
2. Light weight, high strength, good rigidity and tear resistance;
3. Excellent weather resistance: high temperature resistance, corrosion resistance and aging resistance;
4. The version is large, the modulus is variable, and the flatness is high;
5. Superior bonding strength;
6. The seam is straight and easy to install;
7. Flame retardant, soundproof and good heat insulation effect;
8. Strong decoration, easy processing, stable performance




Applications:


Aluminum honeycomb cores are widely used, and honeycomb cores of different specifications may be used differently. For example, microporous honeycomb cores can be used as filter materials, and general-purpose honeycomb cores can be used as composite materials.
1. Commonly used honeycomb cores: honeycomb cores with common lengths ranging from 4mm to 6mm are generally used in composite panels as composite materials, the most common being aluminum honeycomb composites, aluminum ceiling composites and stone composite panels. Wait;
2. Use of microporous honeycomb core and small aperture honeycomb core: small aperture honeycomb cores with side lengths of 1.5mm to 3mm can generally be used as filter materials, lampshade materials (light filtering), paper honeycomb composite materials, etc.
