Stable Insulated Aluminum Honeycomb Core Material For Composite Fire Door

China Stable Insulated Aluminum Honeycomb Core Material For Composite Fire Door supplier
Stable Insulated Aluminum Honeycomb Core Material For Composite Fire Door supplier Stable Insulated Aluminum Honeycomb Core Material For Composite Fire Door supplier Stable Insulated Aluminum Honeycomb Core Material For Composite Fire Door supplier

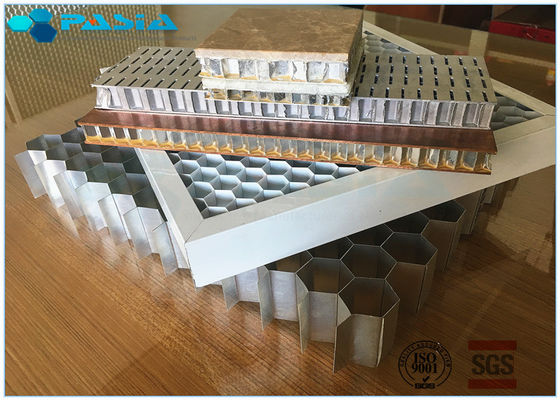

Large Image :  Stable Insulated Aluminum Honeycomb Core Material For Composite Fire Door

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: ISO9001-2008
Model Number: PES-D-562

Payment & Shipping Terms:

Minimum Order Quantity: 10 m2
Price: Negotiable
Packaging Details: Export Package
Delivery Time: within one month for a 20' container
Supply Ability: as per specification
Contact Now
Detailed Product Description
Material: 5056 Or 3003 Foil Thinkness: 0.06mm
Cell Size: 15mm Hardness: H16
Height: 25mm Product Name: Stable Insulated Aluminum Honeycomb Core For Composite Fire Door
High Light:

honeycomb structure

,

honeycomb material



Stable Insulated Aluminum Honeycomb Core Material For Composite Fire Door



General Instruction:



A fire-proof door is a door that meets the requirements for fire resistance stability, integrity, and insulation for a certain period of time. It is a fireproof partition with certain fire resistance, such as in fire compartments, evacuation stairwells, and vertical shafts. Therefore, the raw materials of the fire door need to have sufficient strength and fire resistance stability, and the aluminum honeycomb core for the composite board has the advantages of high strength and light weight, and meets the requirements of the fire door.



In addition to the function of ordinary doors, the fire door made of aluminum honeycomb core has the function of preventing the spread of fire and the spread of smoke, and can prevent the spread of fire in a certain period of time and ensure the evacuation of personnel.





The characteristics of aluminum honeycomb panels:



(1) Light weight, high strength, high rigidity, stable structure and good wind pressure resistance



(2) Sound insulation, heat insulation, fire prevention, waterproof and shockproof functions can be

prominent



(3) The surface has amazing flatness and diverse thickness



(4) Strong decoration, easy to install and fast



Third, the application range of aluminum honeycomb panels: civil construction, public construction projects hotels, hotels, shopping malls, office buildings, hospitals, schools, stations, airports, stadiums, and other interior partition walls, and building exterior walls.


Features:



• Elevated use temperatures

• High thermal conductivity

• Flame resistant

• Excellent moisture and corrosion resistance

• Fungi resistant

• Low weight/High Strength




Specification of aluminum honeycomb core:

Item Unit Specification
Cell inch   1/8”     3/16”   1/4”
  mm 2.6 3.18 3.46 4.33 4.76 5.2 6.35 6.9 8.66

Side
Length

mm 1.5 1.83 2 2.5 2.75 3 3.7 4 5
Foil Thickness mm

0.03-
0.05

0.03-
0.05

0.03- 0.05

0.03-
0.06

0.03-
0.06

0.03- 0.08 0.03- 0.08 0.03- 0.08

0.03-
0.08


Width mm ≤440 ≤440 ≤440 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤1500 ≤1500 ≤2000 ≤3000 ≤3000 ≤3200 ≤4000 ≤4000 ≤5500
Height mm 1.7~150 1.7~150 1.7~150 3~150 3~150 3~150 3~150 3~150 3~150

Item Unit Specification
Cell inch 3/8”   1/2”     3/4”   1”
  mm 9.53 10.39 12.7 13.86 17.32 19.05 20.78 25.4
Side Length mm 5.5 6 7.33 8 10 11 12 15
Foil Thickness mm

0.03-
0.08

0.03-
0.08

0.03- 0.08

0.03-
0.08

0.03-
0.08

0.03- 0.08 0.03- 0.08 0.03- 0.08
Width mm ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤5700 ≤6000 ≤7500 ≤8000 ≤10000 ≤11000 ≤12000 ≤15000
Height mm 3~150 3~150 3~150 3~150 3~150 3~150 3~150 3~150



Specifications can be customized.





Applications:



Stable Insulated Aluminum Honeycomb Core Material For Composite Fire Door
