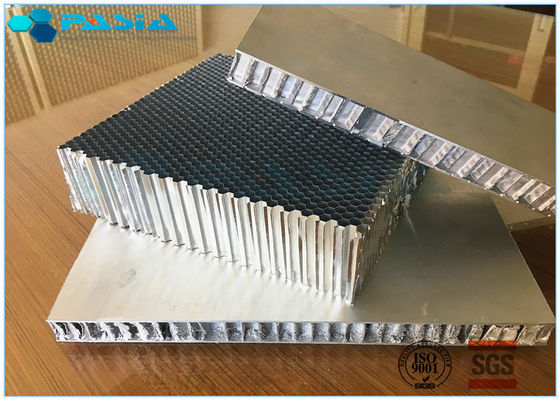

Fireproof Perforated Aluminum Honeycomb Core High Thermal Conductivity

China Fireproof Perforated Aluminum Honeycomb Core High Thermal Conductivity supplier
Fireproof Perforated Aluminum Honeycomb Core High Thermal Conductivity supplier Fireproof Perforated Aluminum Honeycomb Core High Thermal Conductivity supplier

Large Image :  Fireproof Perforated Aluminum Honeycomb Core High Thermal Conductivity

Product Details:

Place of Origin: P. R. China
Brand Name: Pasia
Certification: ISO9001-2008
Model Number: PHC-A-690

Payment & Shipping Terms:

Minimum Order Quantity: 10 m2
Price: Negotiable
Packaging Details: Export Package
Delivery Time: within one month for a 20' container
Supply Ability: as per specification
Detailed Product Description
Material: A3003H18 Foil Thinkness: 0.06mm
Cell Size: 10mm Hardness: H16
Height: 20mm Product Name: Fireproof A3003H18 Perforated Aluminum Honeycomb Core
High Light:

honeycomb structure

,

honeycomb material



Fireproof A3003H18 Perforated Aluminum Honeycomb Core



General Instruction:



Since the main raw material of the aluminum honeycomb core is aluminum foil, it is compounded by a small amount of glue and contains almost no combustible material, so the fire rating is at least B1. The aluminum honeycomb block performs well in waterproof, moisture-proof, and no harmful gas release, and has a high unit mass ratio strength and rigidity. The aluminum honeycomb core board is made of hexagonal honeycomb according to the customer's specified thickness of aluminum foil, and then combined with different panel materials according to requirements to meet customer fire protection requirements.





The characteristics of aluminum honeycomb panels:



(1) Light weight, high strength, high rigidity, stable structure and good wind pressure resistance



(2) Sound insulation, heat insulation, fire prevention, waterproof and shockproof functions can be

prominent



(3) The surface has amazing flatness and diverse thickness



(4) Strong decoration, easy to install and fast



Third, the application range of aluminum honeycomb panels: civil construction, public construction projects hotels, hotels, shopping malls, office buildings, hospitals, schools, stations, airports, stadiums, and other interior partition walls, and building exterior walls.


Features:



• Elevated use temperatures

• High thermal conductivity

• Flame resistant

• Excellent moisture and corrosion resistance

• Fungi resistant

• Low weight/High Strength




Specification of aluminum honeycomb core:

Item Unit Specification
Cell inch   1/8”     3/16”   1/4”
  mm 2.6 3.18 3.46 4.33 4.76 5.2 6.35 6.9 8.66

Side
Length

mm 1.5 1.83 2 2.5 2.75 3 3.7 4 5
Foil Thickness mm

0.03-
0.05

0.03-
0.05

0.03- 0.05

0.03-
0.06

0.03-
0.06

0.03- 0.08 0.03- 0.08 0.03- 0.08

0.03-
0.08


Width mm ≤440 ≤440 ≤440 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤1500 ≤1500 ≤2000 ≤3000 ≤3000 ≤3200 ≤4000 ≤4000 ≤5500
Height mm 1.7~150 1.7~150 1.7~150 3~150 3~150 3~150 3~150 3~150 3~150

Item Unit Specification
Cell inch 3/8”   1/2”     3/4”   1”
  mm 9.53 10.39 12.7 13.86 17.32 19.05 20.78 25.4
Side Length mm 5.5 6 7.33 8 10 11 12 15
Foil Thickness mm

0.03-
0.08

0.03-
0.08

0.03- 0.08

0.03-
0.08

0.03-
0.08

0.03- 0.08 0.03- 0.08 0.03- 0.08
Width mm ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤5700 ≤6000 ≤7500 ≤8000 ≤10000 ≤11000 ≤12000 ≤15000
Height mm 3~150 3~150 3~150 3~150 3~150 3~150 3~150 3~150



Specifications can be customized.





Applications:



Fireproof Perforated Aluminum Honeycomb Core High Thermal Conductivity
