Product Details:
Payment & Shipping Terms:
|
| Material: | A3003H18 Aluminum Foil | Foil Thinkness: | 0.06mm |
|---|---|---|---|
| Cell Size: | 10mm | Hardness: | H18 |
| Height: | 15mm | Product Name: | No Poisious A3003H18 Perforated Aluminum Honeycomb Core |
| High Light: | honeycomb structure,honeycomb material |
||

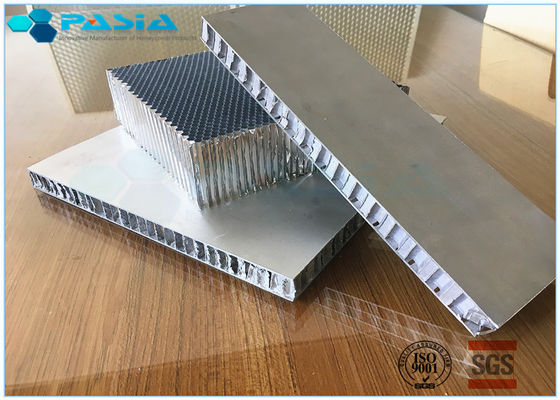

No Poisious A3003H18 Perforated Aluminum Honeycomb Core
General Instruction:
The aluminum honeycomb core is inspired by natural hexagonal honeycombs. Due to its unique structure, it is the lightest in the same volume, excellent in rigidity and overall stability, and also has sound insulation. The aluminum honeycomb core is made of A3003H18 aluminum alloy. The aluminum alloy is not radioactive and no poisious, it does not volatilize any harmful gases harmful to human health. It can be completely recycled and reused, saving resources and energy, minimizing environmental pollution, and made of aluminum honeycomb core. The sandwich composite sheet is a new material that is energy efficient, environmentally friendly and healthy.
Specification of aluminum honeycomb core:
| Item | Unit | Specification | |||||||||||
| Cell | inch | 1/8” | 3/16” | 1/4” | |||||||||
| mm | 2.6 | 3.18 | 3.46 | 4.33 | 4.76 | 5.2 | 6.35 | 6.9 | 8.66 | ||||
| Side Length |
mm | 1.5 | 1.83 | 2 | 2.5 | 2.75 | 3 | 3.7 | 4 | 5 | |||
| Foil Thickness | mm | 0.03- 0.05 |
0.03- 0.05 |
0.03- 0.05 | 0.03- 0.06 |
0.03- 0.06 |
0.03- 0.08 | 0.03- 0.08 | 0.03- 0.08 | 0.03- 0.08 |
|||
| Width | mm | ≤440 | ≤440 | ≤440 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | |||
| Length | mm | ≤1500 | ≤1500 | ≤2000 | ≤3000 | ≤3000 | ≤3200 | ≤4000 | ≤4000 | ≤5500 | |||
| Height | mm | 1.7~150 | 1.7~150 | 1.7~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | |||
| Item | Unit | Specification | |||||||||||
| Cell | inch | 3/8” | 1/2” | 3/4” | 1” | ||||||||
| mm | 9.53 | 10.39 | 12.7 | 13.86 | 17.32 | 19.05 | 20.78 | 25.4 | |||||
| Side Length | mm | 5.5 | 6 | 7.33 | 8 | 10 | 11 | 12 | 15 | ||||
| Foil Thickness | mm | 0.03- 0.08 |
0.03- 0.08 |
0.03- 0.08 | 0.03- 0.08 |
0.03- 0.08 |
0.03- 0.08 | 0.03- 0.08 | 0.03- 0.08 | ||||
| Width | mm | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ≤1800 | ||||
| Length | mm | ≤5700 | ≤6000 | ≤7500 | ≤8000 | ≤10000 | ≤11000 | ≤12000 | ≤15000 | ||||
| Height | mm | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | 3~150 | ||||
Supply modes:
- Unexpanded block
- Unexpanded slice
- Expanded sheet
- Pieces cut to size
Features:
| • Elevated use temperatures |
• High thermal conductivity |
• Flame resistant |
• Excellent moisture and corrosion resistance |
• Fungi resistant |
• Low weight/High Strength |
Specifications can be customized.
Applications:
