|Material:||A3003 Or A5052||Surface:||Wood Imitation|
|Quality Guarantee Period:||15 Years||Size:||Customized|
|Application:||Curtain Wall Panel Board||Thickness:||25mm|
lightweight wall panels,
honeycomb partition panels

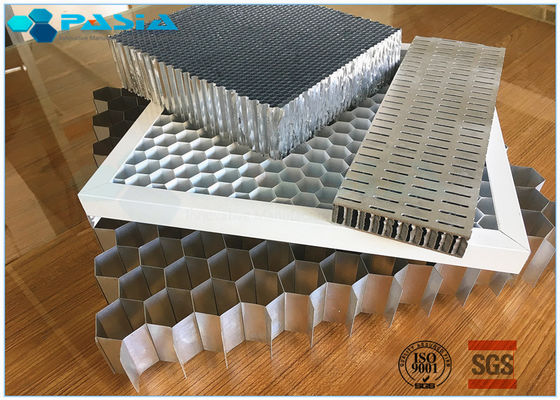

0.06mm Thickness Glue Bonded Aluminum Honeycomb Curtain Wall Core Board
Partition walls, partitions, interiors, such as power distribution rooms, restrooms, powder rooms, etc. in subways or trains may require designers to use artistic wood grain or some special texture on the walls. Due to environmental and forestry protection and shortage of resources, solid wood has been restricted year by year. However, the imitation wood grain on the surface of the aluminum honeycomb panel can satisfy the luxurious appearance. The conventional composite board uses 0.06mm aluminum foil as the core material, which is bonded together by glue, and has the characteristics of light weight, high strength, various shapes, shock absorption, sound insulation, heat insulation and the like.
The characteristics of the wood imitation aluminum honeycomb panel
|1||The flat, nice and smooth aluminum surface|
|2||Very high coating layer rigidity and strong adhesion|
|3||Acid, boiling, weathering and alkali resistance and anti-shock performance|
|4||Better than the real wood decoration effect after the wood imitation treatment|
Aluminum honeycomb panel is a bonded sandwich structure system of two surface aluminium plates and one honeycomb cores with a special purpose adhesive. Industrial used aluminium honeycomb panel will add some more processes such as surface treatment, edging, embedding, carving and so on to make the panel suitable for special conditions. It has been widely used by the industries of civil construction, transportation, exhibition, signage, elevator, clean room etc. The honeycomb technology is from aerospace technology. The whole production process is finished in the modern factory, using hot pressing or vacuum pressing technology. Due to the high thermal conductivity between the aluminum plates and honeycomb, it is synchronized the thermal expansion and contraction of the inside and outside aluminium material. There are small holes on the honeycomb core foil wall so that the air is free of flowing inside the panel box. Furthermore, sliding mounting buckle system does not cause structural deformation during thermal expansion and contraction.
The center material is aluminum hexagonal honeycomb with a small density (about 3 to 7 kg per square meter), about 1/5 of the weight of wood with the same area and thickness, 1/6 of the glass, 1/7 of solid aluminium, which greatly reduced the building load and construction cost. Thanks to the air contained in the core, the panel can be sound and thermal insulated. Because of no combustible material contained, the fire rating can be at least B1 level. The panel performs well also on waterproof, moisture-proof, no harmful gas release, with a high unit mass of the specific strength and stiffness, not easy to deformation, completely overcoming the collapse and deformation in the center area if with large panel. The panel edge can be cut depending on real conditions. The PVDF coating can guarantee the product life more than 30 years.
After surface treated with corrosion resistant fluorocarbon resin, it can be widely used on curtain wall, roof, large façade, signs and interior decoration. The front plate of the aluminum honeycomb panel is painted with E. C. C. A. quality standards PVDF fluorocarbon paint with ordinary color or metallic color, so the surface has excellent weather resistance.
In case of heavy rain, there is particularly large noise when the raindrops hit the aluminum veneer or aluminum-plastic panel, while honeycomb panel can avoid this situation. Aluminum honeycomb panels are generally made of fluorocarbon coated aluminum plates. The continuous roller coating with PVDF material is the most important point to avoid color difference and flat coating film. Based on this, it can keep the exterior building with bright color for long time.
|Unit theory weight||kg/m2||5.4||5.6||5.75|
|Bend elasticity rate||N/mm2||50000||40600||38.44|
|Temeprature total extension coefficient||D696||X10-6N/℃||0.24||0.24||0.24|
|Heat conduction rate||D976||Kcal/mhr℃||0.23||0.19||0.15|
|Heat transform temperature||D648||℃||200||200||200|
|Surtace smoothness||1mm/M.Maximum deviation:1mm/M|
|Flame retardabt property||Nonflammable,match relevant fire resistance standard|
|Soundproof function||Be decided by layout of printed sheet installation angle,0-3dB|
(1) building external curtain wall panel
(2) interior decoration works
(4) ship building
(5) aviation manufacturing industry
(6) indoor partition and commodity display stand
(7) Commercial vehicle and container truck body
(8) bus, train and subway use
(9)With strict environmental requirements of the modern furniture industry, aluminum honeycomb panel is an ideal material to produce furniture. Depending on Its completely non-toxic green quality, it is not necessary for the furniture manufacturers to process environmental procedures. In addition, the surface veneer for aluminum honeycomb panels can be diversified such as solid wood, aluminum, gypsum board, natural marble etc
(10) aluminum honeycomb panel partition: the emergence of aluminum honeycomb panel partition breaks the traditional partition mode, with a noble and fresh style.
