Roof Floor Aluminum Honeycomb Core For Building Industry

China Roof Floor Aluminum Honeycomb Core For Building Industry supplier
Roof Floor Aluminum Honeycomb Core For Building Industry supplier Roof Floor Aluminum Honeycomb Core For Building Industry supplier

Large Image :  Roof Floor Aluminum Honeycomb Core For Building Industry

Product Details:

Place of Origin: China
Brand Name: MICH
Certification: ISO9001
Model Number: 76TAHCHST

Payment & Shipping Terms:

Minimum Order Quantity: 1 m2
Price: USD0.5-USD5 per square meter
Packaging Details: plywood crates
Delivery Time: in one month
Payment Terms: L/C, T/T
Supply Ability: 1 million M2 per year
Contact Now
Detailed Product Description
Property: High Strength Bonding Method: Glue Bonded
Cell Size: 6 Mm Foil Thickness: 0.05 Mm
Foil Treated: Degreased Application: Building
Optimized Supply: Expanded Supply Method: Expanded, Slice, Block
High Light:

Floor Aluminum Honeycomb Core

,

roof Floor Aluminum Honeycomb Core

,

0.05mm aluminum honeycomb sheets

Roof and Floor Use High Strength Aluminum Honeycomb Core for Building Industry is made of degreased aluminum foil of 0.05 mm thick bonded by special purpose adhesive. The performance of the aluminum honeycomb core is determined by the properties of aluminum foil, special purpose chemical adhesive and the size and configuration of the core.



Either cost efficient solution for panels to be thicker, lighter, stronger etc. A honeycomb core should be introduced in to the production to be used on roof and floor panels for building industry.

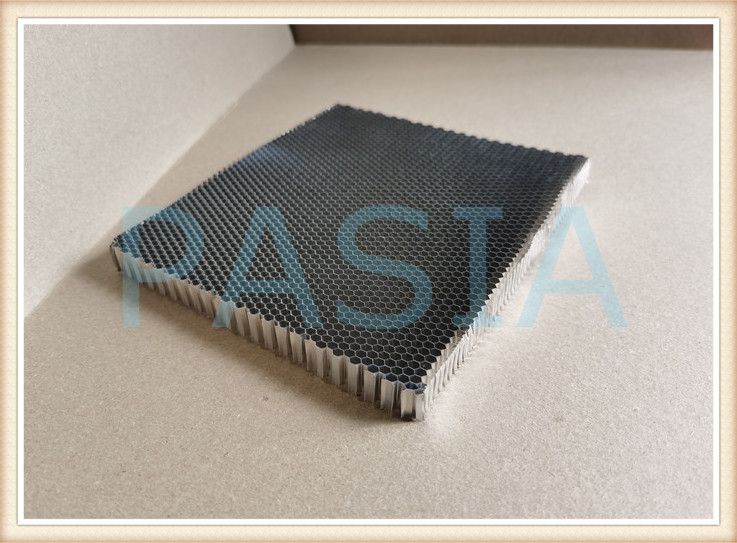

Roof Floor Aluminum Honeycomb Core For Building Industry

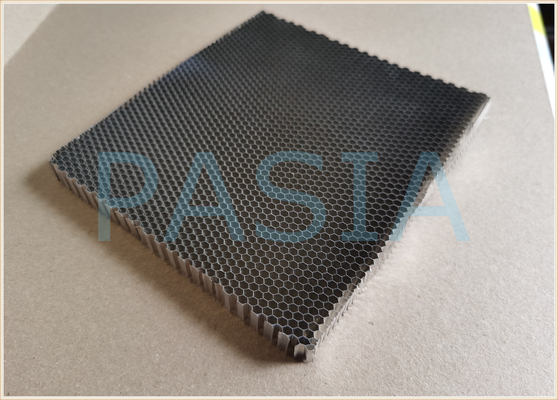

Roof Floor Aluminum Honeycomb Core For Building Industry



Process



General process of an aluminum honeycomb core initiated with an aluminum foil roll and surely the foil is specially treated.



The adhesive tapes are printed to the foil surface with the intervals and width pre-determined by the cell size and strength requirement.

The foil paper is cut into required size to be piled up on the stacking table with equipment and man supervision on the adhesive tape positioning.

These stacked loose blocks should be pressed in a heated press to cure the adhesive so that the sheets of foil are bonded together to hardened block.

The aluminum honeycomb block can be cut into slices with the height of the slices tailored to customized requirements.

Finally, no matter it is done in supplier’s plant or at client’s workshop, the honeycomb should be expanded before forming aluminum honeycomb panel.



Specification of Aluminum Honeycomb Core:



Item Unit Specification
Cell Size inch   1/8”     3/16”   1/4”
mm 2.6 3.18 3.46 4.33 4.76 5.2 6.35 6.9 8.66
Side Length mm 1.5 1.83 2 2.5 2.75 3 3.7 4 5
Foil Thickness mm 0.03-.05 0.03-.05 0.03- 0.05 0.03-.06 0.03-0.06 0.03-0.08 0.03-0.08 0.03-0.08 0.03-.08
Width mm ≤440 ≤440 ≤440 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤1500 ≤1500 ≤2000 ≤3000 ≤3000 ≤3200 ≤4000 ≤4000 ≤5500
Height mm 1.7~150 1.7~150 1.7~150 3~150 3~150 3~150 3~150 3~150 3~150





Item Unit Specification
Cell Size inch 3/8”   1/2”     3/4”   1”
mm 9.53 10.39 12.7 13.86 17.32 19.05 20.78 25.4
Side Length mm 5.5 6 7.33 8 10 11 12 15
FoilThickness mm 0.03-.08 0.03-0.08 0.03-0.08 0.03-.08 0.03-0.08 0.03-0.08 0.03-0.08 0.03- 0.08
Width mm ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800 ≤1800
Length mm ≤5700 ≤6000 ≤7500 ≤8000 ≤10000 ≤11000 ≤12000 ≤15000
Height mm 3~150 3~150 3~150 3~150 3~150 3~150 3~150 3~150


Specifications can be customized according to customer’s requirement.



Supply modes of Aluminum Honeycomb Core:

- Unexpanded block

- Unexpanded slice

- Expanded sheet

- Pieces cut to size
