|Property:||Automatic Control||Application:||Honeycomb Core Expanding|
|Maximum Stretching Speed:||1500mm/s||Walking Distance:||7800mm|
|Finished Expanding Width:||1600 Mm||Maximum Honeycomb Core Height:||48mm|
|Fastest Production Efficiency:||3-4 Slices / Min||Pin Spacing:||148mm|
1500mm/s Aluminum Honeycomb Core,
Automatic Control Aluminum Honeycomb Core,
4 slices/min Aluminum Honeycomb Core
Automatic Pin Inserting Aluminum Honeycomb Core Expander

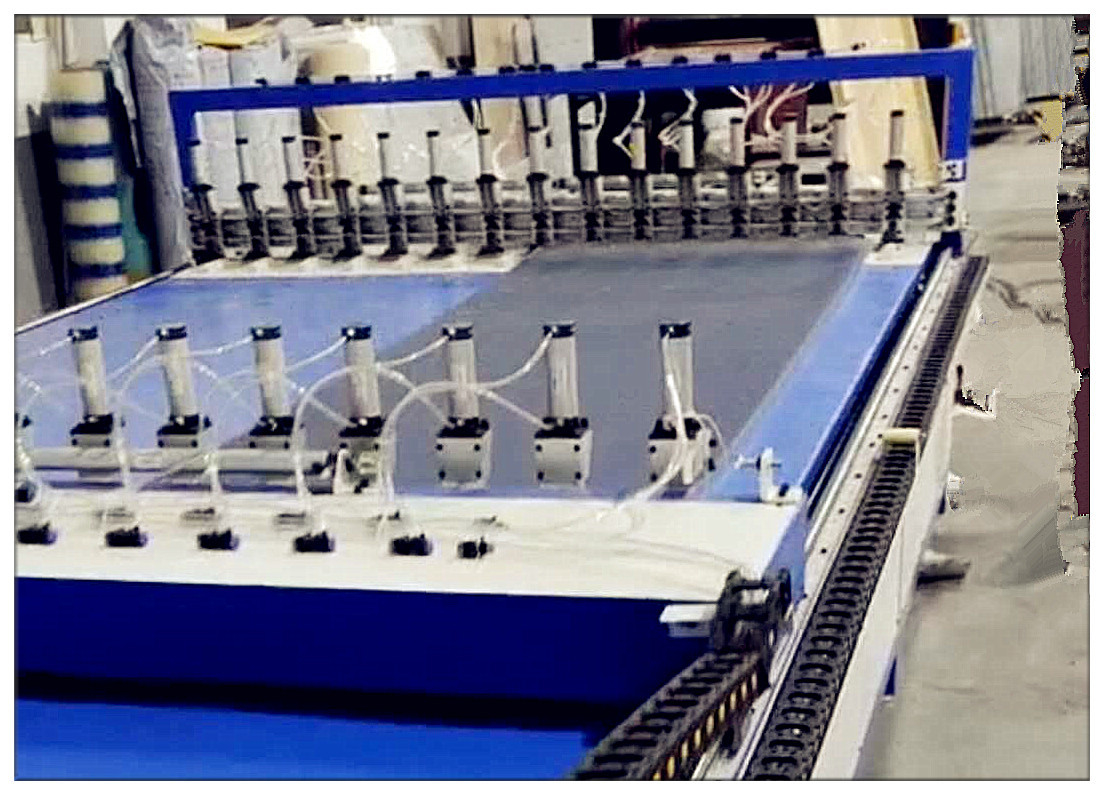

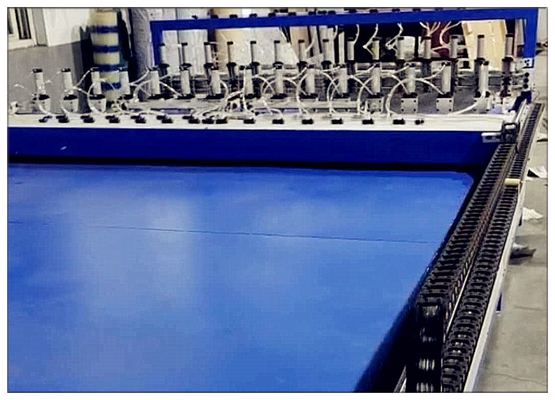

Automatic pin inserting aluminum honeycomb core expander, independently developed by Pasia Industries is specialized in expanding many kinds of aluminum honeycomb core material.
The functions of automatic pin insertion, automatic expanding and automatic reset of needle distance can greatly improve production efficiency, reduce labor cost and realize the purpose of automatic control of working process.
The equipment is composed of rack assembly, automatic pin assembly, automatic expanding power assembly, electrical control system, etc.
The rack assembly is welded of carbon steel square tube with strong and firm structure;
Automatic pin inserting assembly: it is composed of two pin inserting parts, each group has 15 pin inserting cylinders with narrow intervals, greatly increasing the expanding width of aluminum honeycomb panel and reducing the production cost;
Automatic expanding power: driven by servo planetary reducer and synchronous belt, with high precision and smooth movement.
The expanding speed can be adjusted by setting parameters on the touch screen, and the aluminum honeycomb of different specifications can be automatically drawn, and the operation is convenient and the structure is simple.
Second. Equipment layout diagram
Third. Equipment parameters
The maximum stretching speed is 1500mm/s
The walking distance is 7800mm
Finished expanding width 1600 mm
Maximum honeycomb core height 48mm
The fastest production efficiency is 3-4 slices / min
Pin spacing 148mm
Pin distance at both ends is 2070mm
The maximum expanding size of finished product is about 6200mmX1600mmX48mm
Rated voltage 220V 50Hz
The working pressure is 0.55-0.65MPa
The gross weight of the equipment is 1200Kg
Equipment specification (L X W X H) 9000mmX2370mmX1000mm
