0.1 mm Plate Thickness 0.8 mm Cell Side Length Vacuum Brazed Honeycomb Steam Turbine Tip Sealing

0.1 mm Plate Thickness 0.8 mm Cell Side Length Vacuum Brazed Honeycomb Steam Turbine Tip Sealing

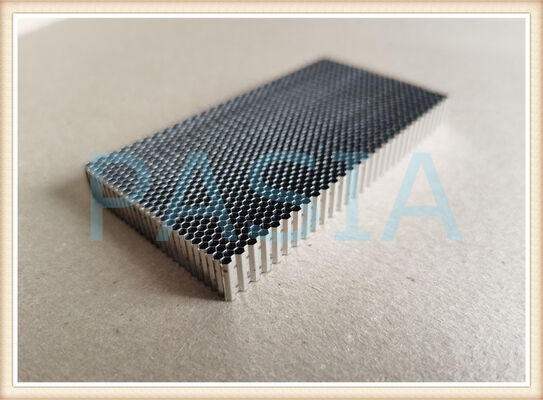

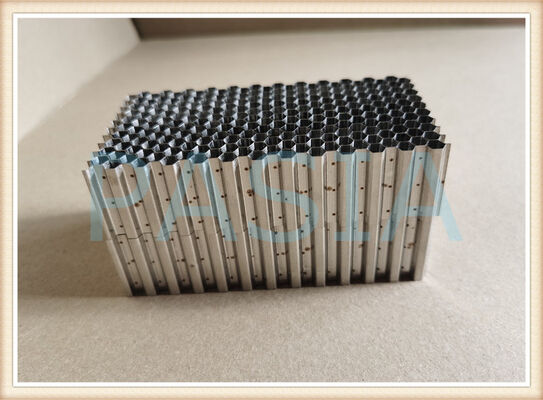

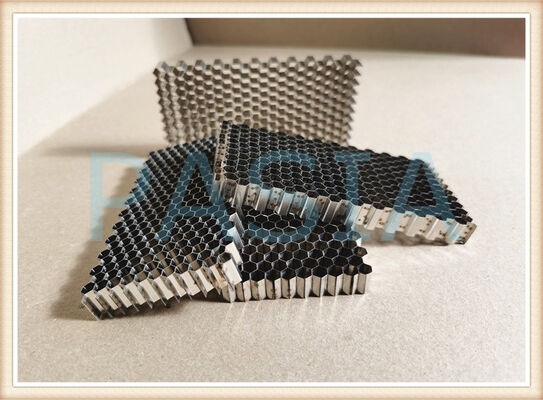

The Vacuum Brazed Honeycomb Steam Turbine Tip Sealing is a precision-engineered abradable seal component designed specifically for steam turbine blade tip clearance control. Featuring an ultra-fine 0.8 mm hexagonal cell structure formed from 0.1 mm thick superalloy plate, this seal is manufactured through advanced vacuum brazing technology to deliver exceptional leakage reduction, rotor stability, and operational longevity in high-temperature, high-pressure steam environments.

With its micro-cell geometry and robust metallic construction, this sealing system provides a superior alternative to traditional labyrinth seals, offering tighter clearance control and dynamic adaptability during turbine operation.

Material Specifications

The 0.1 mm thin-gauge strip allows for precise cell formation while maintaining structural integrity, while the ultra-small 0.8 mm cell geometry maximizes the sealing surface area and improves damping characteristics.

Process Technology – Vacuum Brazing

This sealing component is manufactured using vacuum brazing technology, a high-precision joining process performed in a controlled vacuum furnace environment. The key advantages include:

Process Feature Benefit

Oxygen-Free Environment Prevents oxidation and contamination during the brazing cycle, ensuring pristine metallurgical bonding

Uniform Heat Distribution Guarantees consistent brazing quality across the entire honeycomb structure

Precision Temperature Control Achieves optimal filler metal flow and wetting without overheating the base material

High Joint Strength Creates robust, leak-tight bonds between the honeycomb core and the backing ring/support structure

Minimal Thermal Distortion Maintains dimensional accuracy of the 0.8 mm micro-cells during the brazing cycle

The vacuum brazed construction ensures the honeycomb tip sealing maintains its structural integrity under extreme thermal cycling and mechanical vibration.

Design Features & Advantages

1. Micro-Cell Geometry (0.8 mm Cell Side)

The exceptionally small cell size (0.8 mm) creates a dense, fine-structured sealing matrix that:

· Significantly reduces steam leakage across the blade tip gap

· Increases surface area for improved damping of aerodynamic vibrations

· Provides finer abradability for optimal running clearance

2. Ultra-Thin Wall Construction (0.1 mm Plate)

The 0.1 mm plate thickness enables:

· Lightweight construction with minimal centrifugal loading on the turbine rotor

· Rapid thermal response matching the blade material

· Enhanced abradability – the thin walls wear predictably during initial rub, creating an optimal sealing profile

3. Damping & Vibration Suppression

The honeycomb cell structure inherently provides:

· Excellent mechanical damping, reducing blade vibration amplitudes

· Suppression of steam flow-excited vibrations (a common cause of high-cycle fatigue)

· Improved rotor stability across the entire operating envelope

4. Abradable Sealing Interface

During turbine startup and transient operation, the blade tip lightly contacts (rubs) the honeycomb sealing surface. The 0.8 mm cell design ensures:

· Controlled, predictable wear of the seal material

· Minimal blade tip damage

· Self-generated optimum clearance path

· Reduced leakage without requiring manual clearance setting

Performance Benefits

Performance Metric Improvement / Result

Leakage Reduction Up to 30–50% less tip leakage compared to conventional labyrinth seals

Turbine Efficiency Gain 1–3% improvement in stage efficiency (heat rate reduction)

Rotor Stability Suppression of subsynchronous vibrations and steam whirl instability

Clearance Retention Maintains tight clearances (as low as 0.3–0.5 mm radial) over long operating periods

Thermal Cycling Resistance Maintains structural integrity through thousands of start/stop cycles

Service Life Extended component life due to optimized wear resistance and corrosion protection

Engineered for Precision – Technical Specifications

Our honeycomb seal product line supports the following flexible specifications:
