| Material: | Para-Aramid Paper | Foil Thinkness: | 0.05, 0.06 Or 0.076 Mm |
|---|---|---|---|
| Cell Size: | 2, 3, 5, 8 Mm | Hardness: | H18 |
| Height: | Customized | Product Name: | Para-Aramid Honeycomb Core |

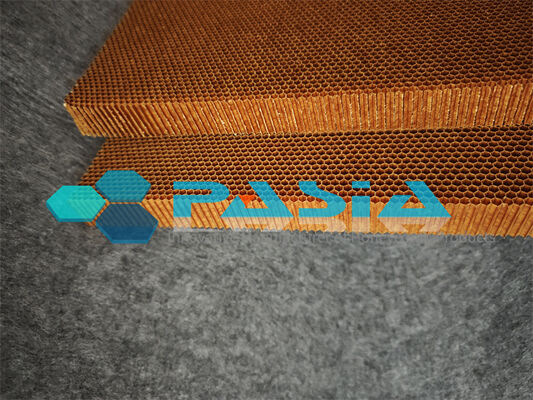

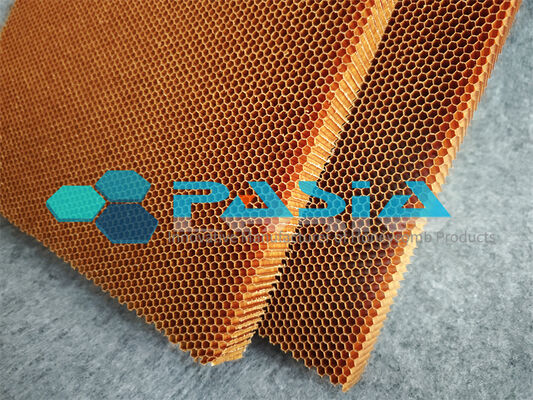

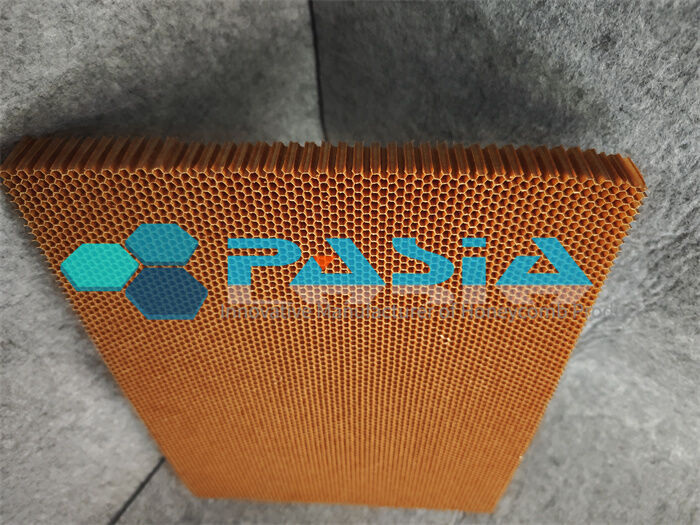

Ultra Light Aramid Honeycomb Core for Drone Airframe Structures
Ultra-light aramid honeycomb core is a high-performance structural core material specifically engineered for unmanned aerial vehicle (UAV) airframes, fuselage panels, wings, and composite sandwich structures. Manufactured from aramid fiber paper—either meta-aramid (Nomex®) or para-aramid (Kevlar®)—impregnated with heat-resistant phenolic resin, this honeycomb core delivers an exceptional combination of low density, high specific strength, and reliable thermal performance. As the aviation industry increasingly prioritizes lightweighting for extended range and payload capacity, aramid honeycomb cores have become a key enabler for modern drone design, where every gram of structural weight saved translates directly into improved operational efficiency.
Material & Construction
The core is produced from aramid fiber paper sheets bonded at the nodes with thermosetting adhesive, expanded into a hexagonal cell configuration, and then dipped in heat-resistant phenolic resin and cured. This manufacturing process produces a rigid, lightweight cellular structure with uniform cell geometry and consistent mechanical properties. Para-aramid variants (Kevlar®-based) offer enhanced performance over meta-aramid cores in terms of weight, strength, stiffness, and fatigue resistance. Recent advances in ultra-light para-aramid paper technology—such as 1 mil Kevlar® N636—now enable the construction of honeycomb cores with densities as low as 20 kg/m³, yielding sandwich panels that are 20–30% lighter than conventional 29 kg/m³ meta-aramid cores.
Key Features & Benefits
· Ultra-low density: Available in densities ranging from 20 kg/m³ to 144 kg/m³, with cell sizes from 1.83 mm to 9.5 mm to suit different structural requirements.
· High strength-to-weight ratio: Specific stiffness up to 9 times higher than steel, delivering outstanding load-bearing capacity at minimal mass.
· Excellent compressive and shear performance: Stabilized compressive strength reaches up to 3.9 MPa at 64 kg/m³ density, with plate shear strength up to 2.0 MPa (L direction).
· Fire resistance: Self-extinguishing properties compliant with FAR 25.853 for cabin interiors and FAR 25.855 for cargo compartments.
· Thermal stability: Service temperature up to 180°C, with flatwise compressive strength retention exceeding 85% and shear performance retention exceeding 65% under high-temperature conditions.
· Corrosion and environmental resistance: Resistant to water, oil, fuel, and fungal growth, ensuring long-term durability in diverse operating environments.
· Excellent dielectric properties: Low dielectric constant makes it suitable for radome and antenna-adjacent structures.
· Good formability: Can be heat-formed into curved and contoured shapes for complex airframe geometries.
Mechanical Properties of the Nomex Honeycomb Core
| Size of honeycomb cell (mm)) |
Density (Kg/ m3) |
Plain compressive strength(MPa) | Plain shear properties(Mpa) | ||||
| Pure core material | Sandwich structure | Strength | Modulus | ||||
| L | W | L | W | ||||
|
1.83 |
48 | 1.8 | 2.28 | 1.38 | 0.79 | 88 | 45 |
| 64 | 3.12 | 3.83 | 1.81 | 1.11 | 100 | 57 | |
|
2.75 |
32 | 0.92 | 1.0 | 0.79 | 0.46 | 66 | 32 |
| 48 | 2.1 | 2.33 | 1.48 | 0.86 | 121 | 54 | |
| 72 | 3.93 | 4.26 | 2.62 | 1.45 | 151 | 65 | |
Mechanical Properties of the Nomex Honeycomb Core 2
| Core type | Density ( kg/m3) |
Stab.comp.str (Mpa) |
L Shear Properties(Mpa) | W Shear Properties(Mpa) | |||||||
| Strength | Modulus | Strength | Modulus | ||||||||
| Typ | Min Ind | Typ | Min Ind | Typ | Min Ind | Typ | Min Ind | Typ | Min Ind | ||
| 3.2-29 | 29 | 0.77 | 0.60 | 0.56 | 0.47 | 25.9 | 17.4 | 0.35 | 0.30 | 14.5 | 11.3 |
| 3.2-48 | 48 | 2.35 | 1.92 | 1.22 | 1.03 | 44.5 | 34.5 | 0.73 | 0.61 | 27.1 | 20.9 |
| 3.2-64 | 64 | 3.88 | 3.22 | 1.72 | 1.55 | 61.0 | 54.0 | 0.99 | 0.82 | 34.0 | 25.0 |
| 3.2-80(E) | 80 | 6.67 | 4.49 | 1.92 | 1.65 | 66.1 | 52.3 | 1.20 | 0.97 | 43.9 | 36.3 |
| 3.2-80 | 80 | 5.19 | 4.69 | 2.22 | 1.95 | 71.0 | 64.0 | 1.23 | 1.05 | 38.4 | 34.0 |
| 3.2-96(E) | 96 | 8.99 | 8.78 | 2.49 | 2.25 | 82.8 | 77.5 | 1.73 | 1.67 | 59.1 | 55.5 |
| 4.8-40 | 40 | 1.63 | 1.46 | 0.95 | 0.92 | 38.0 | 36.3 | 0.55 | 0.52 | 23.9 | 22.5 |
| 4.8-48 | 48 | 2.45 | 1.86 | 1.24 | 1.02 | 41.3 | 34.0 | 0.77 | 0.60 | 30.0 | 18.0 |
| 4.8-72 | 72 | 5.28 | 4.60 | 1.70 | 1.32 | 57.1 | 47.5 | 1.09 | 0.80 | 40.5 | 23.2 |
| 4.8EX-48 | 48 | 2.20 | 1.80 | 0.79 | 0.62 | 20.6 | 16.1 | 0.87 | 0.72 | 42.0 | 34.0 |
Application:
Extremely High Strength Para-Aramid Honeycomb Core For High End Application is a high performance non-metallic core which can replace fiberglass and Nomex® honeycomb core materials to achieve significant weight reductions without sacrificing performance in most applications. para-aramid fiber honeycomb uses include boat decks, aircraft galleys, flooring, partitions, aircraft leading and trailing edges, radomes, flaps, access panels and doors.
