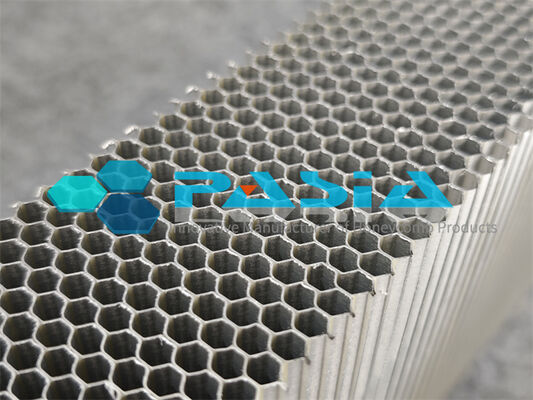

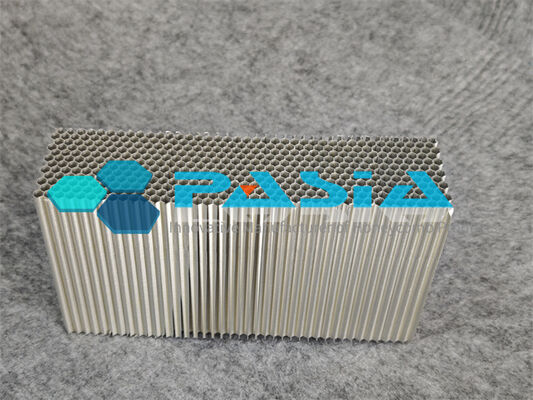

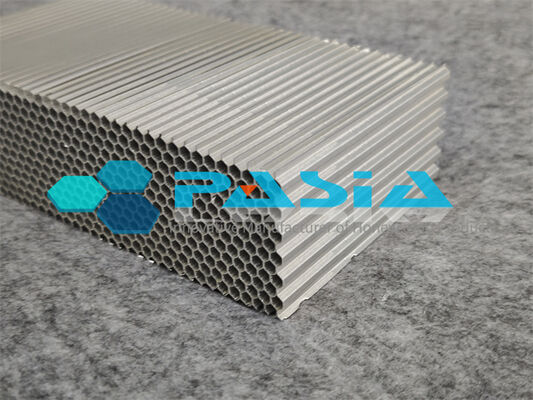

Pasia Industries, as a leading manufacturer of honeycomb energy absorbers, specialize in producing high-performance aluminum honeycomb cores that convert kinetic energy into controlled, predictable crushing forces.

Inspired by the hierarchical energy-absorbing structures found in nature—specifically, the internal architecture of citrus peels—our Hierarchical Nested Honeycomb Energy Absorber represents a paradigm shift in cellular material design. By strategically integrating secondary hierarchical units into the primary honeycomb cells, this innovative structure delivers a unique two-plateau stress response that conventional honeycombs cannot achieve. This dual-stage energy absorption profile enables tunable mechanical performance tailored for applications requiring distinct impact protection phases—from initial low-energy contact to high-velocity collision scenarios.

Bio-inspired and precision-engineered, this absorber redefines crashworthiness standards across automotive, aerospace, packaging, and protective equipment sectors.

---

Key Mechanical Advantages

Performance Metric vs. Traditional Honeycomb
Compressive Strength 2× increase
Specific Energy Absorption (SEA) 5× increase
Plateau Stages Dual-plateau (vs. single)
Tunability Thickness-adjustable primary/secondary walls for custom profiles

---

The Science Behind the Design

1. Dual-Plateau Energy Absorption Profile

Conventional honeycomb absorbers exhibit a single plateau stress region during crushing, limiting their effectiveness across varying impact intensities. Our hierarchical nested design introduces two distinct plateau periods:

· Stage 1 Plateau: Governed by the collapse of primary cell walls—ideal for managing moderate, low-velocity impacts.
· Stage 2 Plateau: Triggered by the sequential engagement of secondary nested units, delivering sustained resistance under higher-energy loading.

This "two-step" mechanism allows engineers to design energy absorption systems that differentiate between service-level impacts (e.g., minor collisions, vibration damping) and catastrophic events (e.g., high-speed crash, blast loading), optimizing safety and structural integrity without over-engineering.

2. Tunable Mechanical Properties

Unlike fixed-performance alternatives, our absorber offers full tunability through precise adjustments to:

· Primary cell wall thickness—controls initial collapse stress.
· Secondary unit wall thickness—determines the height and onset of the second plateau.
· Strategic cell wall removal at non-critical junctions—reduces material consumption by up to 15% without compromising SEA, enabling weight-optimized designs where every gram matters.

This design flexibility positions the absorber as a "programmable" cellular material, adaptable to specific force-displacement requirements for your unique application.

3. Material & Manufacturing Options

Our absorbers are compatible with multiple advanced manufacturing pathways:

Material System Process Key Benefit
Aluminum Alloy (e.g., 3003/5052) Expansion/Bonding High strength-to-weight, corrosion-resistant, ISO 9001-certified
PA12/Carbon Fiber Composite 3D Printing (FDM/MJF) Ultra-lightweight, complex geometries, rapid prototyping
Thermoplastic Polyurethane (TPU) 3D Printing Recoverable deformation, high elasticity for reusable applications
Continuous Carbon Fiber/PLA Dual-Nozzle FDM 93% higher plateau stress, superior structural stability

The 3D-printed variants enable on-demand production of complex nested architectures with precision up to ±0.05 mm, overcoming traditional manufacturing constraints.

---

Applications Requiring Two-Step Impact Protection

Industry Use Case Why Hierarchical Nested Design
High-Speed Automobiles Crash boxes, bumper beams, door anti-intrusion bars Dual-plateau absorbs low-speed parking bumps (Stage 1) and high-speed collision energy (Stage 2) without premature densification
Aerospace Helicopter landing gear, UAV fuselage buffers, satellite fairing layers Lightweight with 5× SEA improvement—critical for weight-sensitive applications while protecting sensitive avionics under extreme impact
Rail Transportation Train crash energy management systems, coupler absorbers Sustained energy absorption over long stroke with consistent force transmission
Packaging High-value electronics, medical device protective cases Customizable plateau stresses to prevent damage from drops (Stage 1) while ensuring residual capacity for worst-case scenarios (Stage 2)
ATD Dummy Calibration Neck flexion certification blocks Two-plateau profile mimics human biofidelic response for accurate safety testing
Blast & Ballistic Protection Vehicle underbody armor, blast shields Sequential energy dissipation mechanisms mitigate both primary shockwave and secondary debris impact


Specifications:

Pasia Honeycomb Energy Absorbers can be supplied based on the cell size, foil thickness and layer, aluminum grade, width and length etc. The shape and parts can be also customized as per the request from client. The crush strength can be achieved on the performance of the foil thickness and special structure.


Testing Item: Aluminum Honeycomb Plain Crushing Strength

Testing Data


Testing Curve:
