Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Bonding: | Spot Welding Or Laser |
|---|---|---|---|
| Material Thickness: | 0.08-0.2 Mm | Cell Side Length: | 0.8-25 Mm |
| Height: | 3-250 Mm | Applications: | AIR WATER OR GAS Flow Straightener |
| Grade: | 3003, 5052 |

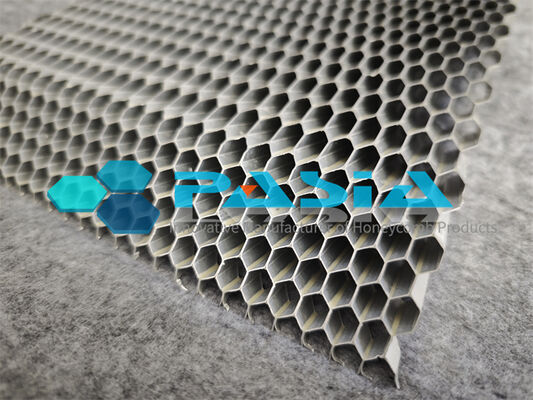

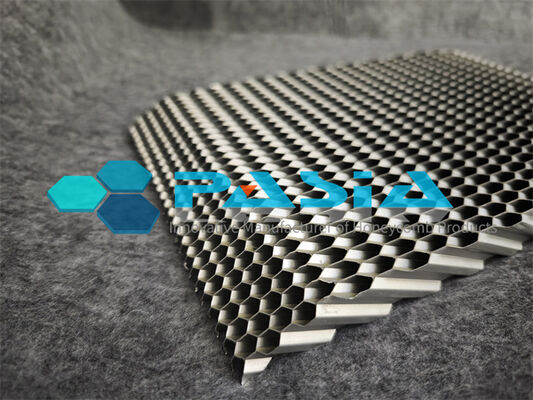

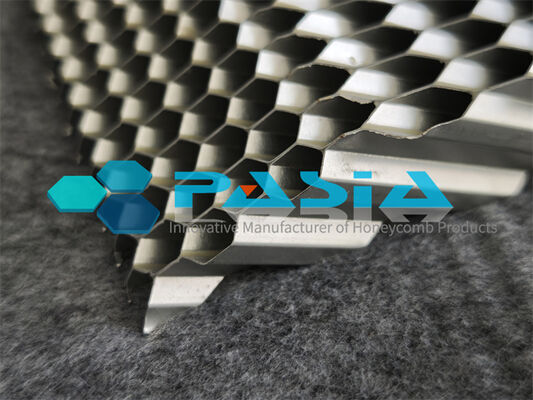

High Specific Surface Area Angled Aluminum Honeycomb Core For Air Purification
The High Specific Surface Area Angled Aluminum Honeycomb Core (also known as Slant-Porous Aluminum Honeycomb Core) is an advanced filtration substrate engineered specifically for air purification applications. Unlike conventional honeycomb cores where the cell walls are perpendicular to the surface, this innovative product features honeycomb cells oriented at an angled configuration (typically 20°) relative to the surface plane.
This unique angled cell structure delivers superior air purification performance compared to standard honeycomb cores, making it the ideal substrate for photocatalytic filters, activated carbon filters, VOC removal systems, and industrial exhaust gas treatment equipment.
---
2. Key Features & Advantages
2.1 High Specific Surface Area
The angled cell configuration significantly increases the specific surface area (surface-to-volume ratio) compared to conventional perpendicular honeycomb structures. This provides substantially more surface area for:
· Catalyst coating deposition (TiO₂, activated carbon, manganese-based catalysts)
· Enhanced contaminant adsorption
· Improved photocatalytic reaction efficiency
2.2 Superior Fluid Dynamics
The 20° inclined cell structure creates optimized airflow characteristics that enable:
· Extended contact time between air streams and the filtration media
· Increased turbulence and friction as air passes through the angled channels
· More thorough contaminant capture through enhanced gas-solid interaction
· Complete air purification through sufficient contact and reaction
2.3 Lightweight & High Strength
· Low density with excellent strength-to-weight ratio
· High specific strength and rigidity
· Excellent compression, shear, and corrosion resistance
2.4 Surface Flatness & Processability
· Even and smooth surface suitable for adhering to high-grade plates and composite materials
· Super flatness for consistent coating application
· Environmentally friendly and non-toxic
2.5 Additional Benefits
· Fire retardant
· Sound insulation
· Thermal insulation and moisture resistance
· Shock absorption and excellent load-bearing capacity
---
3. Technical Specifications
3.1 Material Specifications
| Parameter | Specification |
| Alloy Grades | A3003H18, A5052H24 |
| Aluminum Foil Thickness | 0.015 – 0.15 mm |
| Cell Side Length | 0.4, 0.5, 0.6, 0.8, 1.0, 1.25, 1.5, 1.83, 2.0, 2.5, 3.0, 3.75, 4.0, 5.5, 10.0 mm |
| Core Thickness | 2 – 300 mm (tolerance: ±0.1 mm) |
| Tilt Angle | 20° (standard); customizable upon request |
| Maximum Expanded Width | 1050 mm |
| Surface Treatment | Chromate conversion coating per MIL-STD-171 |
3.2 Standard Density & Configuration Table
| Side Length (mm) | Cell Size (mm) | Cells/in² | Foil Thickness (mm) | Density (kg/m³) | Tilt Angle |
| 1.0 | 1.73 | 248 | 0.025 | 122 | 20° |
| 1.0 | 1.73 | 248 | 0.030 | 146 | 20° |
| 1.0 | 1.73 | 248 | 0.040 | 195 | 20° |
| 1.5 | 2.60 | 110 | 0.030 | 96 | 20° |
| 1.5 | 2.60 | 110 | 0.040 | 130 | 20° |
| 1.5 | 2.60 | 110 | 0.050 | 162 | 20° |
Custom sizes, densities, and tilt angles available upon request.
4. Applications
4.1 Air Purification Systems
· Photocatalytic filters – as TiO₂ catalyst carrier for VOC, bacteria, and virus degradation
· Activated carbon filters – for ozone removal, odor elimination, and VOC adsorption
· Industrial exhaust gas treatment – for UV photolysis and photocatalysis systems
· HVAC systems – air rectification and filtration
· Commercial and residential air purifiers
4.2 Specialized Filtration
· Formaldehyde removal – achieving up to 93% removal in 2.5 minutes
· TVOC, benzene, xylene, toluene degradation
· Grease filtration – for commercial kitchen ventilation
· High-temperature exhaust purification
4.3 EMI Shielding & Communication
· Electromagnetic interference (EMI) shielding vents
· Communication equipment shielding
4.4 Building & Construction
· Architectural curtain wall interior decoration
· Fire-retardant building materials
