1. The Challenge – When Flat Cores Fail

Conventional rigid honeycomb cores are designed for flat or gently curved panels. But when your design calls for compound curves, tight radii, double-contoured shells, or deep-drawn 3D geometries, standard hex-cell cores buckle, crease, or fracture during forming—compromising structural integrity and driving up scrap rates.

Worse, if that 3D part must also insulate against heat or vibration and remain electrically non-conductive for RF transparency or galvanic isolation, the material options shrink dramatically.

Our Flex Core Aramid Honeycomb was developed specifically to resolve this trilemma: formable into complex 3D shapes, thermally/acoustically insulating, and inherently non-conductive—all without sacrificing the lightweight strength that aramid fibers deliver.

---

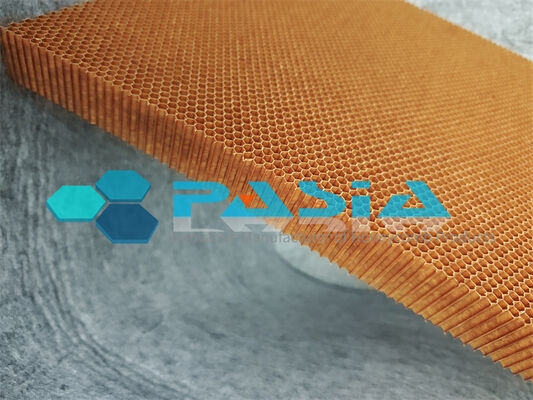

2. What Is Flex Core Aramid Honeycomb?

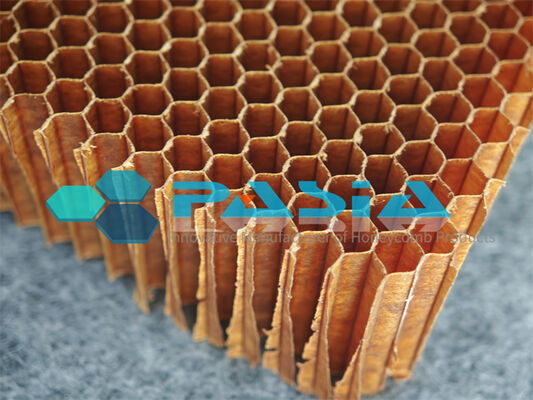

Unlike standard hexagonal honeycomb with rigidly bonded node lines, Flex Core features a controlled, expanded node-bonding pattern that allows the cell walls to articulate and shear within the plane. This unique architecture gives the core exceptional drapeability and conformability, enabling it to follow complex 3D contours during hot-forming or vacuum-bagging processes—just like a fabric, but with the compressive strength of a structural core.

It is available in over-expanded (OX) and low-density variants, with phenolic or polyimide resin systems tailored to your forming temperature and service environment.

---

3. Feature #1 – Superior 3D Formability for Complex Geometries

Standard honeycomb resists in-plane shear; Flex Core embraces it.

· Forming capability: Achieves compound curvature with radii as tight as ≥ 3 mm (depending on density and cell size) without cell-wall rupture or surface telegraphing.
· Processing flexibility: Compatible with hot-forming presses, autoclave curing, and matched-die molding. The core can be pre-formed to near-net shape before skin lamination, reducing trim waste by up to 40%.
· Dimensional stability after forming: The articulated node structure locks into the formed shape upon resin re-cure, holding contours within ±0.5 mm over 1-meter chord lengths—critical for aerodynamic surfaces and flush-mounted radomes.

Real-world application: One-piece formed helicopter engine cowls, compound-curved racing car monocoque inserts, and double-curvature aircraft leading-edge sections—all previously impossible with standard honeycomb.

---

4. Feature #2 – Thermal and Acoustic Insulation Performance

In 3D-shaped enclosures—engine bays, cabin pods, or nacelle inlets—heat and noise management are as critical as structural support. Flex Core delivers on both fronts:

Thermal Insulation

· The closed-cell (or partially open-cell) architecture traps stagnant air, achieving a thermal conductivity as low as 0.035 W/m·K at 25°C—comparable to premium foam insulations.
· The aramid/phenolic matrix maintains its insulating properties up to 180°C continuous (peaks to 220°C), preventing heat soak-through from hot-side skins to cold-side structural members.
· Reduces or eliminates the need for separate thermal barrier blankets, saving installation weight and complexity.

Acoustic / Vibration Damping

· The flexible cell walls dissipate vibrational energy through micro-scale friction at node joints, providing a loss factor (tan δ) of 0.02–0.05 in the 500–2000 Hz range—significantly higher than rigid cores.
· Ideal for reducing cabin noise in aircraft, railcars, and marine vessels where curved bulkheads and shaped ceiling panels are standard.

---

5. Feature #3 – Inherent Non-Conductivity (Electrical & Galvanic)

For 3D-shaped parts that house antennas, radar systems, or sensitive electronics—or that bond to carbon fiber skins—non-conductivity is not a luxury; it is a safety and performance mandate.

Dielectric Transparency

· Dielectric constant (εᵣ): 1.2 – 1.5 (depending on density and frequency, 1–18 GHz).
· Loss tangent (tan δ): < 0.01, ensuring minimal signal attenuation.
· This makes Flex Core the preferred core for 3D radomes, antenna fairings, and satellite reflector dishes where signal integrity must be preserved across a curved aperture.

Electrical Insulation

· Volume resistivity: > 10¹⁵ Ω·cm—a true electrical insulator.
· Withstands dielectric breakdown up to > 20 kV/mm, safeguarding electronics against arcing or short circuits in high-altitude or high-humidity environments.

Galvanic Isolation

· Unlike aluminum, Flex Core is 100% non-metallic. When bonded to carbon fiber reinforced polymer (CFRP) skins, it eliminates galvanic corrosion entirely—no isolation plies, no anodizing, no corrosion-prone interfaces. This is especially vital for 3D-shaped marine propulsor shrouds, offshore platform enclosures, and automotive battery box covers.

Mechanical Properties of the Nomex Honeycomb Core

Mechanical Properties of the Nomex Honeycomb Core 2

Application:

Extremely High Strength Para-Aramid Honeycomb Core For High End Application is a high performance non-metallic core which can replace fiberglass and Nomex® honeycomb core materials to achieve significant weight reductions without sacrificing performance in most applications. para-aramid fiber honeycomb uses include boat decks, aircraft galleys, flooring, partitions, aircraft leading and trailing edges, radomes, flaps, access panels and doors.
