Pre-crushed Bi-directional Aluminum Honeycomb Impact Attenuator With Constant Force Plateau For 9 Meter Drop Test Accident Scenarios

Pre-crushed Bi-directional Aluminum Honeycomb Impact Attenuator With Constant Force Plateau For 9 Meter Drop Test Accident Scenarios

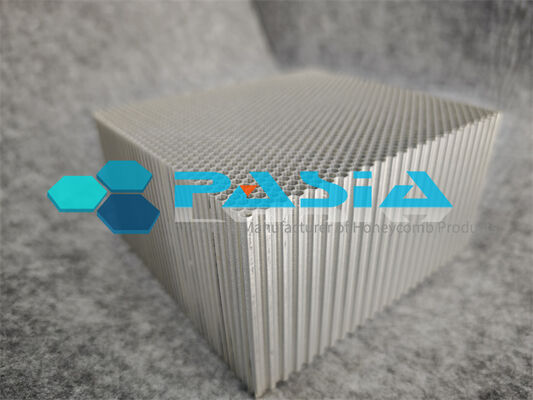

The Pre-Crushed Bi-Directional Aluminum Honeycomb Impact Attenuator is a high-performance energy absorption device engineered specifically for nuclear spent fuel transport cask impact limiters. Designed to meet the stringent requirements of 10 CFR Part 71 regulatory drop tests, this attenuator provides predictable, constant-force energy dissipation during 9-meter (30-foot) hypothetical accident scenarios.

Unlike conventional unidirectional honeycomb materials, this product features bi-directional corrugated architecture that enables uniform energy absorption in two orthogonal directions, overcoming the single-direction limitation of traditional honeycomb structures. The pre-crushing process eliminates the undesirable initial peak stress, delivering an ideal elastic-perfectly-plastic crushing response.

---

2. Technical Principle

2.1 Crushing Mechanism

Under out-of-plane compressive loading, the aluminum honeycomb structure undergoes progressive plastic deformation. The thin-walled cells initially experience elastic buckling, followed by plastic collapse as cell walls hinge and fold in a controlled manner. This uniform collapse process propagates through the honeycomb thickness, converting kinetic energy into deformation work at a near-constant force level.

2.2 The Pre-Crushing Advantage

Pre-crushing introduces controlled initial plastic deformation to the honeycomb block, eliminating the peak load associated with collapse initiation. As shown in the characteristic crush curve below, the pre-crushed material achieves a substantially uniform stress plateau immediately upon loading.

3. Key Features

Feature Description Benefit

Pre-Crushed Condition Initial plastic deformation introduced during manufacturing Eliminates peak stress; immediate constant-force response

Bi-Directional Energy Absorption Corrugated design enables crush capability in two orthogonal axes Provides protection regardless of impact orientation

Constant Force Plateau Uniform crush stress maintained up to ~70% strain Predictable deceleration; enables accurate safety analysis

Temperature Insensitivity Stable performance from -20°F to 100°F (-29°C to 38°C) Reliable in all transport and storage conditions

Corrosion Resistance 5052 aluminum alloy with anodized/passivated finish Suitable for marine transport and long-term storage

High Strength-to-Weight Ratio Density range: 1-10 lb/ft³; crush strength customizable Minimizes payload weight while maximizing protection

---

4. Technical Specifications

4.1 Standard Configuration

Parameter Specification

Material Aluminum Alloy 5052 (corrosion-resistant grade)

Configuration Bi-directional corrugated honeycomb

Condition Pre-crushed (peak stress eliminated)

Plateau Stress ≥15 MPa (meets 12.35 MPa minimum requirement)

Cell Size Customizable (1/8", 1/4", 3/8", 3/4", 3/16" available)

Foil Thickness 0.04–0.10 mm (customizable)

Foil Layers Single, double, or triple

Maximum Crush Stroke Up to 70% of original thickness

4.2 Performance Characteristics

Parameter Value

Energy Absorption Efficiency Constant force plateau from 0% to ~70% strain

Operating Temperature Range -29°C to 38°C (-20°F to 100°F)

Humidity Range 0–100% (no performance degradation)

Density Range 1–10 lb/ft³ (customizable per application)

Crush Strength Tolerance Held to specified tolerances per production lot

---

5. Bi-Directional Design Advantage

5.1 Structural Architecture

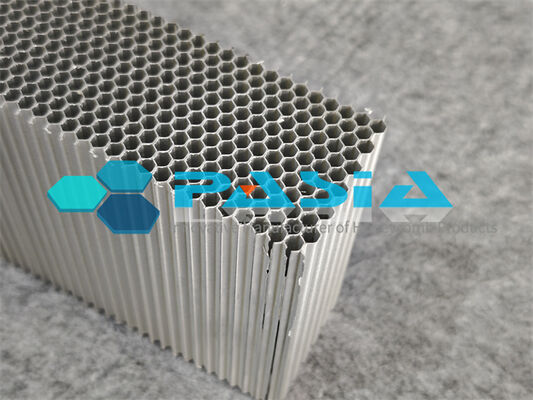

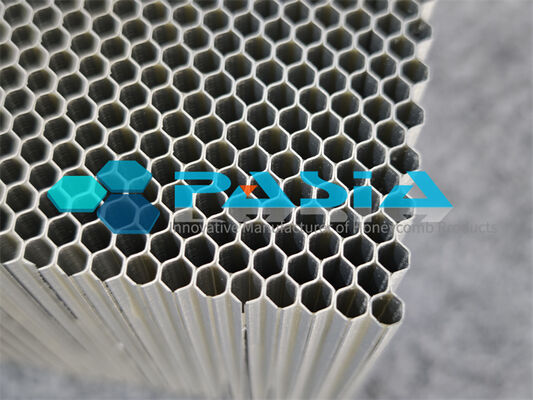

The bi-directional corrugated honeycomb features a half-regular-hexagon corrugated structure. This configuration enables energy absorption in both the Y and Z directions, overcoming the single-direction limitation of conventional honeycomb materials.

5.2 Performance Validation

Research has validated that bi-directional corrugated honeycomb aluminum exhibits:

· Plateau stress of 15 MPa, exceeding the 12.35 MPa required for NAC-STC type cask protection

· Longer energy absorption range compared to unidirectional honeycomb

· Scale model validation: Energy absorption ratio of 103:1 demonstrated at 10:1 size scaling

---

6. 9-Meter Drop Test Performance

6.1 Regulatory Context

Under 10 CFR Part 71, nuclear spent fuel transport casks must withstand a hypothetical 9-meter (30-foot) drop onto an unyielding surface without compromising containment integrity. The impact limiter—filled with this pre-crushed bi-directional honeycomb—must:

1. Limit peak deceleration to ≤60g under all drop orientations

2. Remain attached to the cask throughout the event

3. Prevent overpack contact with the target surface

6.2 Drop Test Configurations

The attenuator has been validated across three critical drop postures:

Drop Orientation Test Temperature Critical Design Consideration

Vertical (End) -30°F Maximum axial crush demand

Horizontal (Side) +120°F Largest contact area; side impact

Oblique (30°/60°) Ambient Combined loading conditions

Testing Item: Aluminum Honeycomb Plain Crushing Strength

Testing Data
