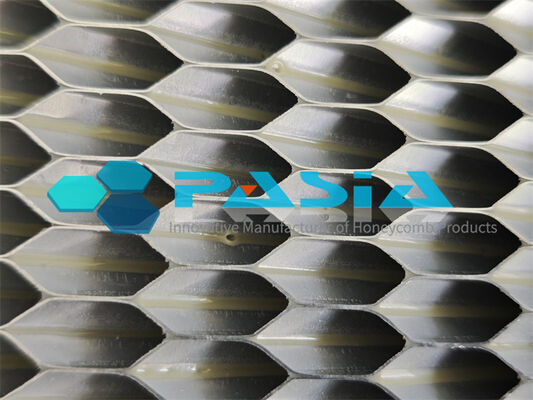

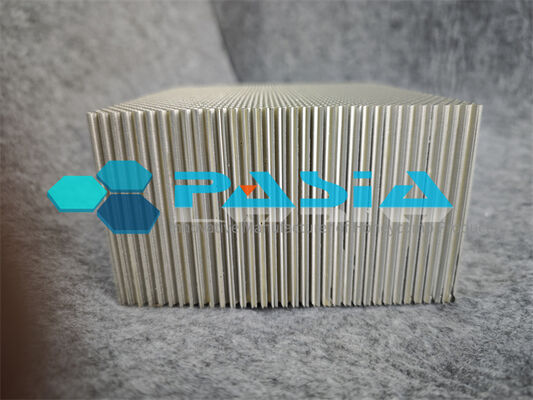

Pasia Industries, as a leading manufacturer of honeycomb energy absorbers, specialize in producing high-performance aluminum honeycomb cores that convert kinetic energy into controlled, predictable crushing forces.

Conventional re-entrant auxetic honeycombs, despite their well-documented negative Poisson's ratio effect and energy-absorption capabilities, face inherent limitations that restrict their engineering applications—including low plateau stress, unstable deformation, shear failure, and limited mechanical tunability under complex service conditions. Our Auxetic Re-entrant Columnar Honeycomb Energy Absorber overcomes these challenges through a revolutionary compression-torsion coupling mechanism—a design innovation that for the first time introduces rotational deformation modes into honeycomb architectures.

The result is a high-performance energy absorber that delivers a 3.2-fold increase in Specific Energy Absorption (SEA) under high-speed impact conditions, setting a new benchmark for lightweight protective structures.

---

The Core Innovation: Compression-Torsion Coupling

Unlike traditional auxetic honeycombs that deform purely through in-plane contraction, our columnar design incorporates a tension/compression-torsion coupling effect. This mechanism transforms axial compressive loading into controlled rotational deformation, unlocking multiple energy-dissipation pathways simultaneously:

· Axial compression—primary energy absorption through cell wall collapse
· Torsional deformation—secondary energy dissipation through rotational resistance
· Synergistic coupling—interaction between modes that amplifies total energy absorption beyond the sum of individual contributions

This multi-modal deformation strategy effectively prevents the shear-dominated failure and unstable collapse that plague conventional auxetic structures, ensuring consistent, predictable performance even under extreme loading conditions.

---

Performance Advantages

Metric Conventional Re-entrant Honeycomb Our Auxetic Columnar Honeycomb
Specific Energy Absorption (SEA) Baseline 3.2× Increase under high-speed impact
Deformation Mode Single (in-plane contraction) Dual (compression + torsion coupling)
Deformation Stability Prone to shear failure & unstable collapse Superior stability through rotational mechanisms
Mechanical Tunability Limited Wide tunability via geometric parameter adjustment
Load Transfer Conventional paths Reconstructed paths suppressing shear-dominated deformation

---

How 3.2× SEA Enhancement Is Achieved

The dramatic SEA improvement under high-speed impact stems from three synergistic mechanisms:

1. Negative Poisson's Ratio (NPR) Effect — Under impact, the auxetic structure contracts laterally, concentrating material toward the impact zone and enhancing local resistance. This effect is amplified at higher velocities, where the NPR effect significantly improves both stress magnitude and distribution uniformity.

2. Compression-Torsion Coupling — The columnar design introduces rotational deformation modes that engage additional energy-dissipation mechanisms beyond pure crushing, effectively utilizing the full structural volume for energy absorption.

3. Tunable Geometric Design — By adjusting key geometric parameters, the structure can be optimized for targeted mechanical properties over a wide range, enabling precise calibration for specific impact scenarios.

---

Technical Specifications

Parameter Description
Structure Type 3D auxetic columnar honeycomb with re-entrant geometry
Deformation Mechanism Compression-torsion coupling mode
Poisson's Ratio Negative (auxetic)
SEA Enhancement 3.2× vs. conventional re-entrant honeycombs under high-speed impact
Deformation Stability Enhanced through rotation-induced collapse mechanism
Tunability Wide-range adjustability via geometric parameters
Manufacturing Compatible with additive manufacturing (SLM, 3D printing)

---

Applications

The superior high-speed impact performance and lightweight nature make this absorber ideal for:

· Automotive crashworthiness — bumper beams, crash boxes, side impact structures
· Aerospace protective systems — fuselage crashworthiness, landing gear buffers
· Ballistic and blast protection — vehicle armor, personal protective equipment
· High-speed transportation — rail and marine impact protection
· Sports and recreational equipment — helmets, protective padding for high-velocity impacts


Specifications:

Pasia Honeycomb Energy Absorbers can be supplied based on the cell size, foil thickness and layer, aluminum grade, width and length etc. The shape and parts can be also customized as per the request from client. The crush strength can be achieved on the performance of the foil thickness and special structure.


Testing Item: Aluminum Honeycomb Plain Crushing Strength

Testing Data


Testing Curve:
