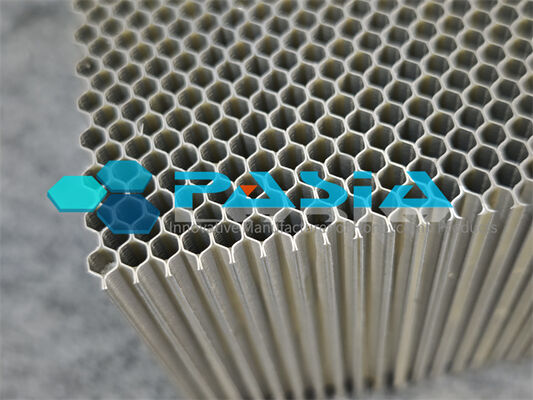

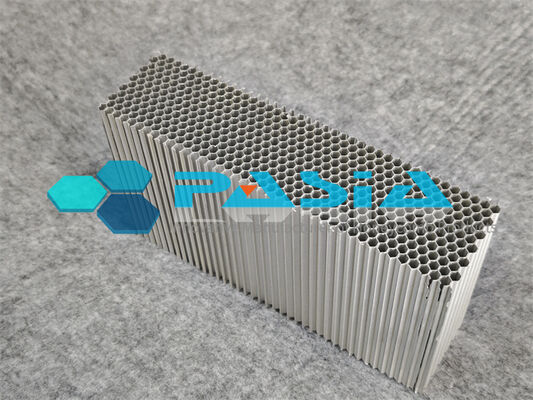

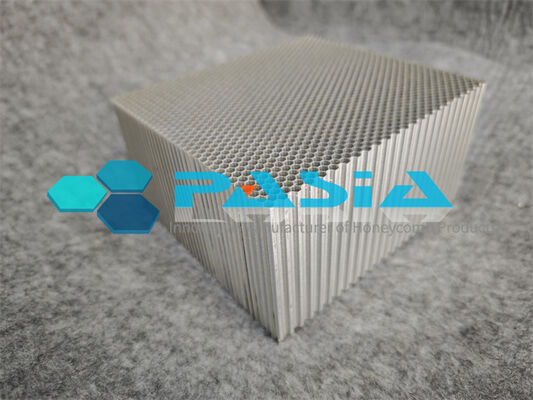

Corrosion Resistant Chromate‑coated Aluminum Honeycomb Energy Absorber Pad in 1250×1250mm Size for Railway Vehicle Buffering with Stable Plateau Stress Characteristics

Corrosion Resistant Chromate‑coated Aluminum Honeycomb Energy Absorber Pad in 1250×1250mm Size for Railway Vehicle Buffering with Stable Plateau Stress Characteristics

Aluminum honeycomb structures are widely recognized as ideal energy absorbers for railway vehicle crashworthy buffer systems, offering low relative density, controllable deformation, and stable impact force characteristics. Our Corrosion Resistant Chromate‑Coated Aluminum Honeycomb Energy Absorber Pad is specifically engineered for railway buffering applications, combining exceptional energy absorption performance with robust environmental durability in a generous 1250×1250mm format.

---

Corrosion Resistant Chromate Coating

The pad features a chromate conversion coating applied to the aluminum substrate. This advanced surface treatment delivers:

· Superior corrosion protection — the chromate film acts as an inert physical barrier, effectively isolating the aluminum substrate from corrosive media such as moisture and salt spray
· “Self‑healing” capability — the coating provides ongoing protection even if surface damage occurs
· Proven durability — chromate‑conversion‑coated aluminum honeycombs have demonstrated excellent resistance in accelerated salt spray testing
· Enhanced adhesive bond durability — particularly effective under humid conditions

This coating technology is well‑established in the industry, with products such as HexWeb® CRIII utilizing chromate conversion coating combined with seal coating for maximum environmental protection. Chromated aluminum foil is considered indispensable for producing highly reliable honeycomb cores in safety‑critical fields like rail transit.

---

Generous 1250×1250mm Format

The 1250×1250mm pad size aligns with industry‑standard panel configurations:

· Standardized compatibility — 1250mm width is a common industry standard for rail transit applications
· Efficient installation — the generous format reduces the number of individual absorber units required, simplifying mounting and maintenance
· Proven track record — aluminum honeycomb sandwich panels in similar dimensions are widely used in railway applications including shock absorbers for train nose protection

Thickness and other dimensional specifications can be customized upon request to meet specific railway vehicle requirements.

---

Railway Vehicle Buffering Application

In the rail industry, aluminum honeycomb is an ideal material for buffers and crash protection. Key application benefits include:

· Predictable, uniform crushing — cells collapse and buckle on themselves in a uniform way, providing a predictable load that prevents damage to the supporting structure
· Long stroke energy absorption — the honeycomb absorbs energy over an extended deformation stroke
· High crush strength‑to‑weight ratio — delivering exceptional energy absorption per unit mass
· Minimal rebound — virtually free of rebound, ensuring energy is absorbed rather than returned to the structure
· Lightweight and maintainable — low weight makes it easy to handle, install and replace, with very little maintenance required

Aluminum honeycomb energy absorbers are deployed in high‑speed train head‑impact absorption systems, subway vehicle first‑stage energy absorbing elements, and composite energy‑absorbing structures for railway vehicles. Research has demonstrated that for all thicknesses, the amount of energy absorption can be increased by at least 35%.

---

Stable Plateau Stress Characteristics

Our energy absorber pad delivers stable, predictable plateau stress — a critical requirement for railway buffering systems:

· Long, stable plateau — a long plateau with constant stress brings high energy absorbability without large changes in acceleration
· Progressive buckling deformation — cell walls undergo progressive buckling that effectively absorbs impact energy
· Extended plastic yield plateau — the plastic yield plateau strain of an aluminum honeycomb core is generally greater than 65%, meaning it can absorb energy steadily over a long compression stroke
· Direct contribution to energy dissipation — the larger the extent of the plateau stress of the honeycomb, the greater is its contribution to the total energy dissipation of the entire structure
· Tunable performance — plateau stress can be modified through the use of various alloys, foil thicknesses, cell sizes, and densities

The stable plateau stress ensures that the energy absorber delivers consistent, reliable performance across the full range of impact scenarios encountered in railway operations. Total energy dissipation of the energy‑absorbing structure is improved with an increase of the plateau stress of the honeycomb structure.

Pasia Industries, a professional advanced honeycomb core innovator and manufacturer, delivers versatile honeycomb-based products to the global market with more than 20 years of experience. The energy absorption honeycomb core can be produced based on conventional process with glue bonding or innovative process with machinery production with limited usage of special glue to obtain special performance such as high temperature resistance, chemical resistance etc. With sufficient technical know-how and experience, a wide range of standard and custom honeycomb energy absorbers for various applications are successfully delivered to clients with different cell sizes, core densities, crush strengths shapes and sizes. Aluminum honeycomb is the perfect material for energy absorption applications due to its high strength-to-weight ratio. It also has excellent moisture and corrosion resistance.

Specifications:

Pasia Honeycomb Energy Absorbers can be supplied based on the cell size, foil thickness and layer, aluminum grade, width and length etc. The shape and parts can be also customized as per the request from client. The crush strength can be achieved on the performance of the foil thickness and special structure.

Testing Item: Aluminum Honeycomb Plain Crushing Strength

Testing Data

Testing Curve:
