Product Details:
Payment & Shipping Terms:
|
| Foil Thickness: | 0.05mm | Size In Mm*mm: | 900*1500 |
|---|---|---|---|
| Surface Treated: | Anodized | Application: | Nuclear Power Plant |
| Product Name: | Energy Absorber | Thickness: | 25 Mm Or Customized |

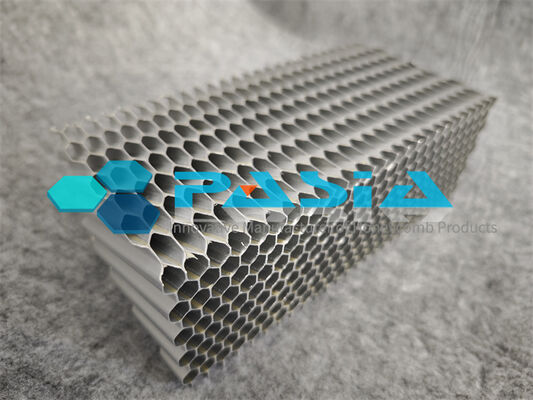

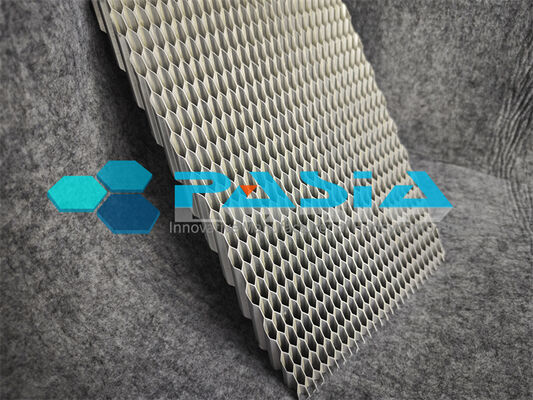

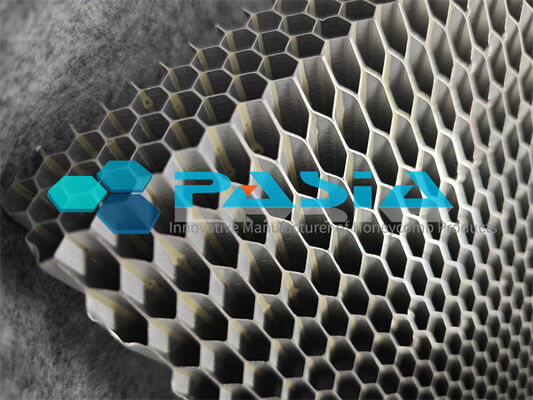

Flame Retardant Lightweigt Honeycomb Energy Absorber with High Heat Dissipation Pyramidal Structure Handling 15 KW/m² for Aerospace Chamber Lining
Pasia Industries, a professional advanced honeycomb core innovator and manufacturer, delivers versatile honeycomb-based products to the global market with more than 20 years of experience.
The Flame Retardant Lightweight Honeycomb Energy Absorber is a high-performance pyramidal absorber engineered for high-energy areas of aerospace chambers and test facilities. Featuring a hollow, pyramidal honeycomb architecture, this absorber delivers rapid heat dissipation, exceptional fire retardancy, and lightweight construction—making it the ideal solution for aerospace chamber lining applications where thermal management, safety, and weight efficiency are paramount.
Aerospace Chamber Lining Application
These high-power absorbers are specifically designed for high-energy areas of chambers and equipment, with primary applications including:
· Aerospace & Defense test chambers
· Radar and communications antenna testing facilities
· Electromagnetic compatibility (EMC) test environments
· Academic and research institute laboratories
Chambers can be partially or fully lined depending on specific testing requirements.
Specifications:
Pasia Honeycomb Energy Absorbers can be supplied based on the cell size, foil thickness and layer, aluminum grade, width and length etc. The shape and parts can be also customized as per the request from client. The crush strength can be achieved on the performance of the foil thickness and special structure.
| Density Range (pound per cubic foot) | Cell size range (diameter inch) | Alloy | Foil thickness (mm) | Foil layers |
| 1-10 | 1/8, 1/4, 3/8, 3/4, 3/16 etc | 3003/5052 | 0.04, 0.05, 0.06, 0.08, 0.1 | Single, double or triple |
| Sample Lot | Specification | D1.5-(0.05+0.05)-3003 | |
| Client | Standard | ||
| Required Value | Conclusion | Plain Crushing Strength: 9.6MPa | |
| Tested By | Time |
Testing Item: Aluminum Honeycomb Plain Crushing Strength
Testing Data
| Serial | Sample Name | Width(mm) | Length(mm) | Maximum Loading(N) | Crushing Strength(MPa) |
| Aluminum Honeycomb Core | 49.0 | 48.0 | 27487.99 | 9.70 | |
| Aluminum Honeycomb Core | 50.0 | 48.0 | 31790.69 | 9.57 | |
| Aluminum Honeycomb Core | 48.0 | 48.0 | 24778.45 | 9.59 | |
| Aluminum Honeycomb Core | 48.0 | 50.0 | 30205.60 | 9.52 | |
| Max Value | 50.0 | 50.0 | 31790.69 | 9.70 | |
| Min Value | 48.0 | 48.0 | 24778.45 | 9.52 | |
| X-bar | 48.8 | 48.5 | 28565.68 | 9.60 |
Testing Curve:
