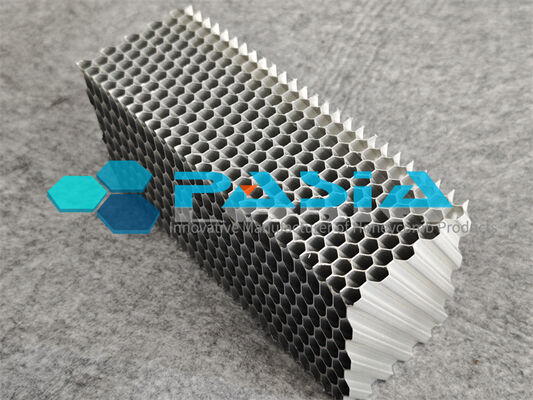

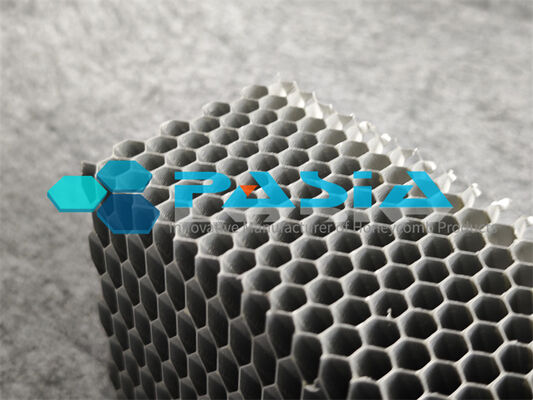

Corrosion Resistant Chromate‑coated Aluminum Honeycomb Energy Absorber Pad in 1250×1250mm Size for Railway Vehicle Buffering with Stable Plateau Stress Characteristics.

Corrosion Resistant Chromate‑coated Aluminum Honeycomb Energy Absorber Pad in 1250×1250mm Size for Railway Vehicle Buffering with Stable Plateau Stress Characteristics

Pasia Industries, a professional advanced honeycomb core innovator and manufacturer, delivers versatile honeycomb-based products to the global market with more than 20 years of experience. The energy absorption honeycomb core can be produced based on conventional process with glue bonding or innovative process with machinery production with limited usage of special glue to obtain special performance such as high temperature resistance, chemical resistance etc. With sufficient technical know-how and experience, a wide range of standard and custom honeycomb energy absorbers for various applications are successfully delivered to clients with different cell sizes, core densities, crush strengths shapes and sizes. Aluminum honeycomb is the perfect material for energy absorption applications due to its high strength-to-weight ratio. It also has excellent moisture and corrosion resistance.

Aluminum honeycomb structures are widely recognized as ideal energy absorbers for railway vehicle crashworthy buffer systems, offering low relative density, controllable deformation, and stable impact force characteristics. Our Corrosion Resistant Chromate‑Coated Aluminum Honeycomb Energy Absorber Pad is specifically engineered for railway buffering applications, combining exceptional energy absorption performance with robust environmental durability in a generous 1250×1250mm format.

---

Corrosion Resistant Chromate Coating

The pad features a chromate conversion coating applied to the aluminum honeycomb substrate. This advanced surface treatment delivers:

· Superior corrosion protection — the chromate film acts as an inert physical barrier, effectively isolating the aluminum substrate from corrosive media such as moisture and salt spray
· “Self‑healing” capability — the coating provides ongoing protection even if surface damage occurs
· Enhanced durability — ideal for the harsh operating environments encountered in railway rolling stock and passenger cars
· Proven performance — chromate‑conversion‑coated aluminum honeycombs have demonstrated excellent resistance in accelerated salt spray testing

This coating technology is well‑established in the industry, with products such as HexWeb® CRIII utilizing chromate conversion coating combined with seal coating for maximum environmental protection.

---

Generous 1250×1250mm Format

The 1250×1250mm pad size offers significant advantages for railway buffering applications:

· Full frontal coverage — aluminum honeycomb energy absorbers are typically integrated into the front section of the driver unit, covering the full frontal width from beneath the window to the buffers
· Standardized compatibility — this dimension aligns with industry‑standard panel formats (2500×1250mm is a common standard, with 1250×1250 representing a half‑panel configuration)
· Efficient installation — the generous format reduces the number of individual absorber units required, simplifying mounting and maintenance

Thickness and other dimensional specifications can be customized upon request to meet specific railway vehicle requirements.

---

Railway Vehicle Buffering Application

In the rail industry, aluminum honeycomb is the ideal material for buffers, fenders and driver protection. Key application benefits include:

· Predictable, uniform crushing — cells collapse and buckle on themselves in a uniform way, providing a predictable load that prevents damage to the supporting structure
· Long stroke energy absorption — the honeycomb absorbs energy over an extended deformation stroke
· High crush strength‑to‑weight ratio — delivering exceptional energy absorption per unit mass
· Minimal rebound — virtually free of rebound, ensuring energy is absorbed rather than returned to the structure
· Lightweight and maintainable — low weight makes it easy to handle, install and replace, with very little maintenance required

Railway vehicle front‑end energy absorbing structures incorporating aluminum honeycomb generate orderly, stage‑by‑stage deformation according to the designed energy dissipation process. The larger the plateau stress acting on the honeycomb, the greater the contribution made by the honeycomb to the overall energy dissipation of the structure.

---

Stable Plateau Stress Characteristics

Our energy absorber pad delivers stable, predictable plateau stress — a critical requirement for railway buffering systems:

· Linear force curve — the honeycomb produces a linear force curve with a constant load during crushing
· Tunable performance — crush strength can be modified through the use of various alloys, foil thicknesses, cell sizes, and cell configurations
· Wide crush strength range — from 0.175MPa to 55MPa, allowing precise specification for different railway buffering requirements
· Narrow tolerances — advanced manufacturing processes enable very tight tolerances on crush strengths to be met

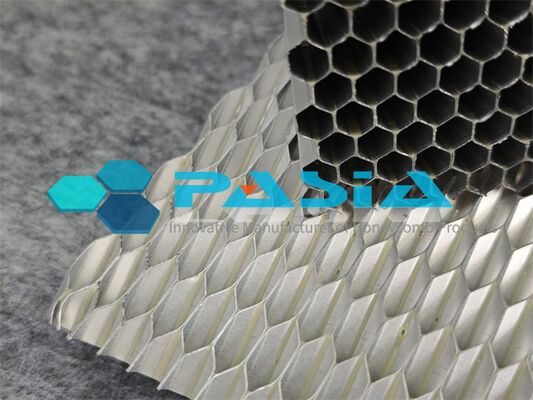

· Pre‑crushing option — the honeycomb can be partially pre‑crushed to eliminate peak loading, greatly reducing the risk of structural damage during impact

The stable plateau stress ensures that the energy absorber delivers consistent, reliable performance across the full range of impact scenarios encountered in railway operations.

Specifications:

Pasia Honeycomb Energy Absorbers can be supplied based on the cell size, foil thickness and layer, aluminum grade, width and length etc. The shape and parts can be also customized as per the request from client. The crush strength can be achieved on the performance of the foil thickness and special structure.

Testing Item: Aluminum Honeycomb Plain Crushing Strength

Testing Data

Testing Curve:
